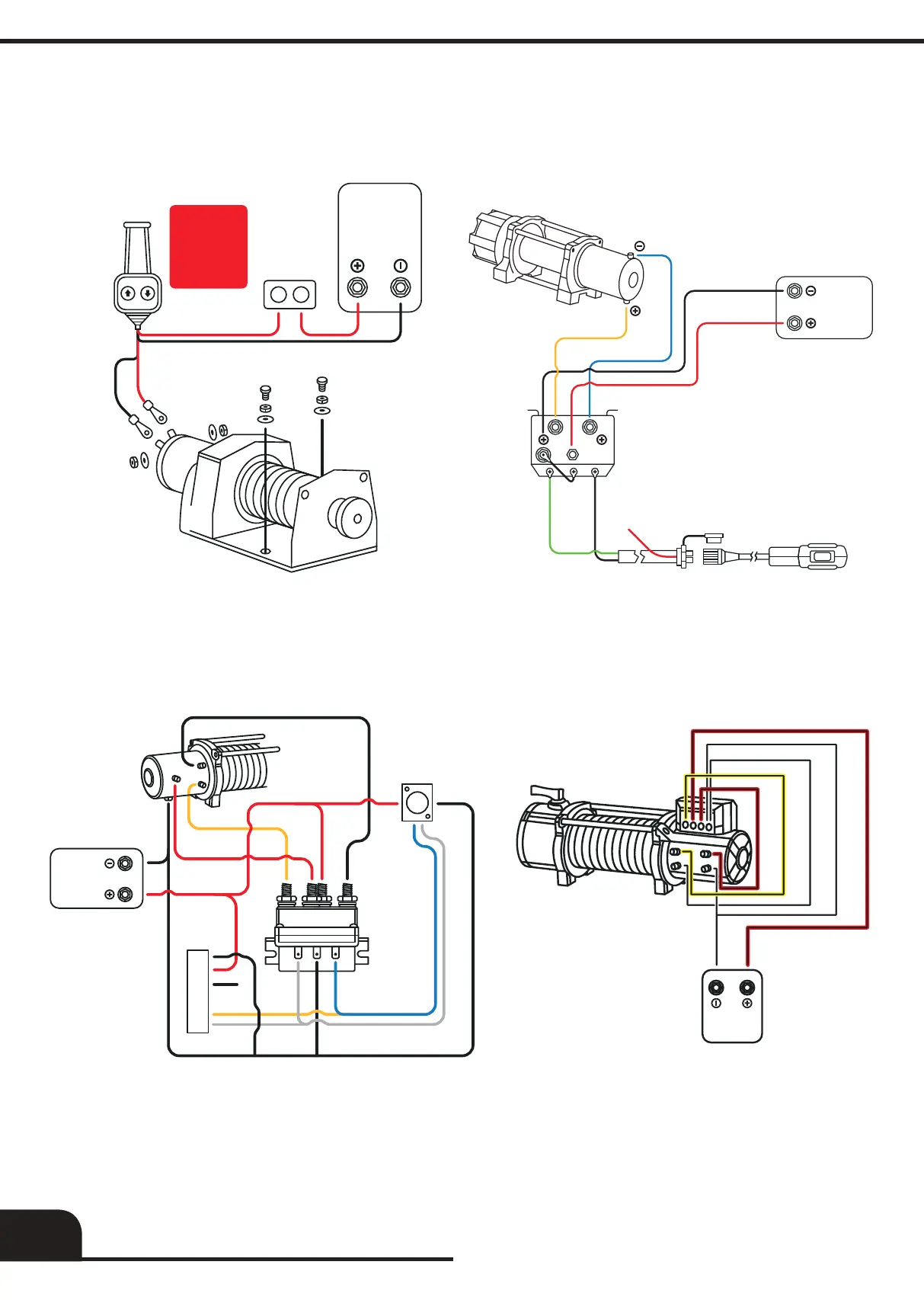

Kangaroowinch 2000 - Wiring Diagrams

WIRING DIAGRAMS
2000
BATTERY
Black “-” to the
white terminal
Red “+” to the
red terminal
Red to the
battery “+”
Black to the battery “-”
OVERCURRENT
CIRCUIT
BREAKER
(OPTIONAL)
ATTENTION!
Some winches may be
supplied without the
overcurrent circuit
breaker: skip this item
or purchase the breaker
separately from the
supplier.
6000
BATTERY
Yellow “+”
Blue “-”
Green wire to
the remote
control socket
Black wire to
the battery “-”
Black wire to the
remote control socket
Red wire to the remote
control socket
Red wire to
the battery “+”
12000PS
BATTERY
Black
wire
Black wire
Black wire
Black
wire
Red wire
Red wire
Red wire
Yellow wire
Yellow wire
Antenna
REMOTE
White
wire
White wire
Blue wire
Red wire
12000XT-HD
battery
Connection A – thin black wire with white jacket
Connection A – long black
power supply wire
to the battery “-”
Connection B – short black wire with
red jacket
Connection D – short black wire with black jacket
Connections C – short black wire with yellow jacket
Long black wire with red jacket – power supply wire – to the battery “+”
6
