Kango 2500 User Manual

4
Service and Repair Manual
Model 2500V

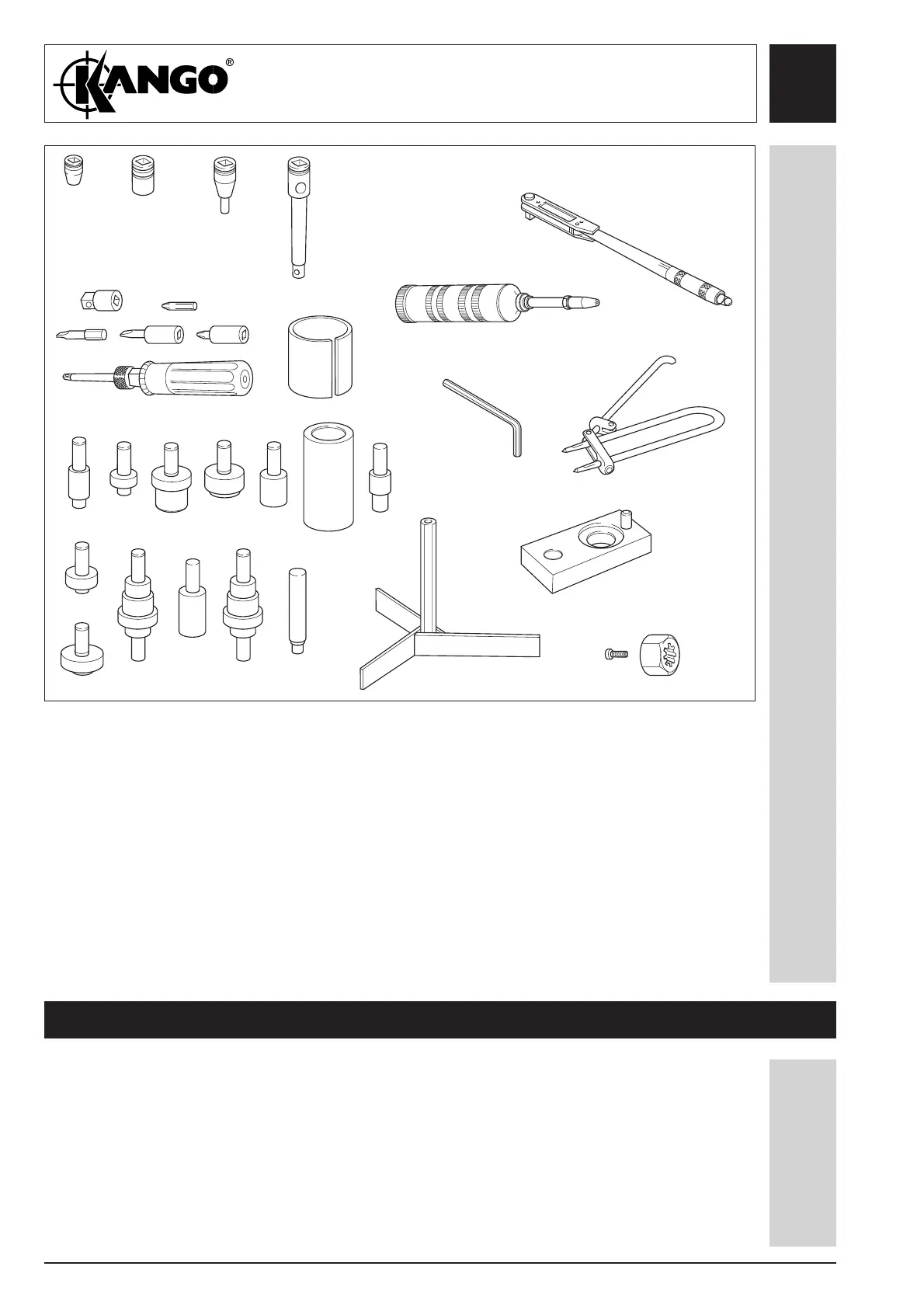

Service Tools
TORQUE SETTINGS
1234
5
12
20
13
14
23
24
30
25
26
27
28
31
32
15 16 17 18
19
22
21
29
6
8
10
11
9
7
ITEM PART NO. DESCRIPTION
1 9170 0739 60 10mm HEX. SOCKET, 3/8" SQ. DRIVE.
2 9170 0731 90 7/8" BSF HEX. SOCKET
9170 0735 50 24mm HEX. SOCK ET, 1/2" SQ. DRIVE.
9170 0738 90 17mm HEX. SOCKET, 1/2" SQ. DRIVE.
3 9170 0739 40 IN-HEX BIT, 6mm AF, 1/2" SQ. DRIVE
9170 0739 50 IN-HEX BIT, 10mm AF, 1/2" SQ. DRIVE
4 9170 0230 60 EXTENSION BAR, 10" LONG, 1/2" SQ. DRIVE
9170 0732 50 EXTENSION BAR, 5" LONG, 1/2" SQ. DRIVE
5 9170 0732 80 TORQUE WRENCH 1/4" DRIVE
6 9170 0235 50 TORQUE WRENCH 25-135Nm (1/2" SQ. DRIVE)
7 9170 0732 30 SCREWDRIVER BIT
8 9170 0734 70 CONVERTER, 1/4" SQ. SKT. TO 3/8" SQ. PLUG
9 9170 0732 40 SCREWDRIVER BIT ASSEMBLY
10 9170 0737 70 POZIDRIVE NO.2 REPLACEMENT BIT
10 9170 0737 80 POZIDRIVE NO.3 REPLACEMENT BIT
11 9170 0732 90 SCREWDRIVER BIT POZIDRIVE NO.2
11 9170 0732 00 SCREWDRIVER BIT POZIDRIVE NO.3
12 9170 0236 80 GREASE GUN
13 9170 0731 30 SPLIT SLEEVE (ARMATURE)
14 9170 3329 90 DISMANTLING LAYSHAFT BEARINGS
15 9170 3329 80 ASSEMBLY LAYSHAFT BEARINGS
ITEM PART NO. DESCRIPTION
16 9170 0737 10 ASSEMBLY CRANKSHAFT NEEDLE BEARING
17 9170 0230 30 ASSEMBLY ARMATURE SEAL ASSY
18 9170 0738 00 ASSEMBLY CRANKSHAFT INNER BEARING
19 9170 0738 10 ASSEMBLY PRESS TOOL(C/SHAFT SUPPORT)
20 9170 0733 30 STANDARD ALLEN KEY, 6mm AF
9170 0733 40 STANDARD ALLEN KEY, 10mm AF
9170 0733 50 STANDARD ALLEN KEY, 5mm AF
21 9170 0236 90 CIRCLIP PLIERS
22 9170 0738 20 ASSEMBLY C/SHAFT BEARING INNER RING
23 9170 0736 70 ASSEMBLY BEARING HOLDER BEARING
24 9170 0738 30 ASSEMBLY/DISMANTLING CONNECTING ROD
25 9170 0738 40 ASSEMBLY PRESS TOOL (LAYSHAFT)
26 9170 0738 50 MANDREL
27 9170 0737 00 ASSEMBLY/DISMANTLING TENSION ROD
28 9170 0734 40 SERVICE STAND (FOR 32mm AF NOSEPIECE)
9170 0739 10 SERVICE STAND (FOR 28mm AF NOSEPIECE)
29 9170 0738 60 ASSEMBLY/DISMANTLING (LAYSHAFT)
30 9170 0736 80 ASSEMBLY C/SHAFT LARGE BEARING
31 9170 0197 60 M4 X 16mm POZI-PAN SCREW (PK20)
32 9170 0739 00 PINION NUT
ITEM NO. PART NO. Nm lb.ft
101 9170 0510 60 40 30
105 9170 0510 70 4.5 3.5
110 9170 0510 50 25 20
113 9170 0691 70 3 2.25
121 9170 1975 00 1.25 1.0
124 9170 2797 50 1.25 1.0
205 9170 0198 70 1.25 1.0
212 9170 6908 00 3 2.25
214 9170 0519 20 1.75 1.25
216 9170 0502 40 40 30
218 9170 3305 60 6.0 4.5
219 9170 0511 70 40 30
ITEM NO. PART NO. Nm lb.ft
309 9170 0510 50 35 25
324 9170 0697 10 70 50
327 9170 0510 60 25 20
401 9170 0503 70 40 30
414 9170 0511 00 130 100
510 9170 3207 50 130 100
