Kango 2500 - Dismantling Procedures - Barrel and Piston; Dismantling the Barrel Assembly; Removing the Piston and Gudgeon Pin; Removing Handles and Top Cover

6
Service and Repair Manual
Model 2500V

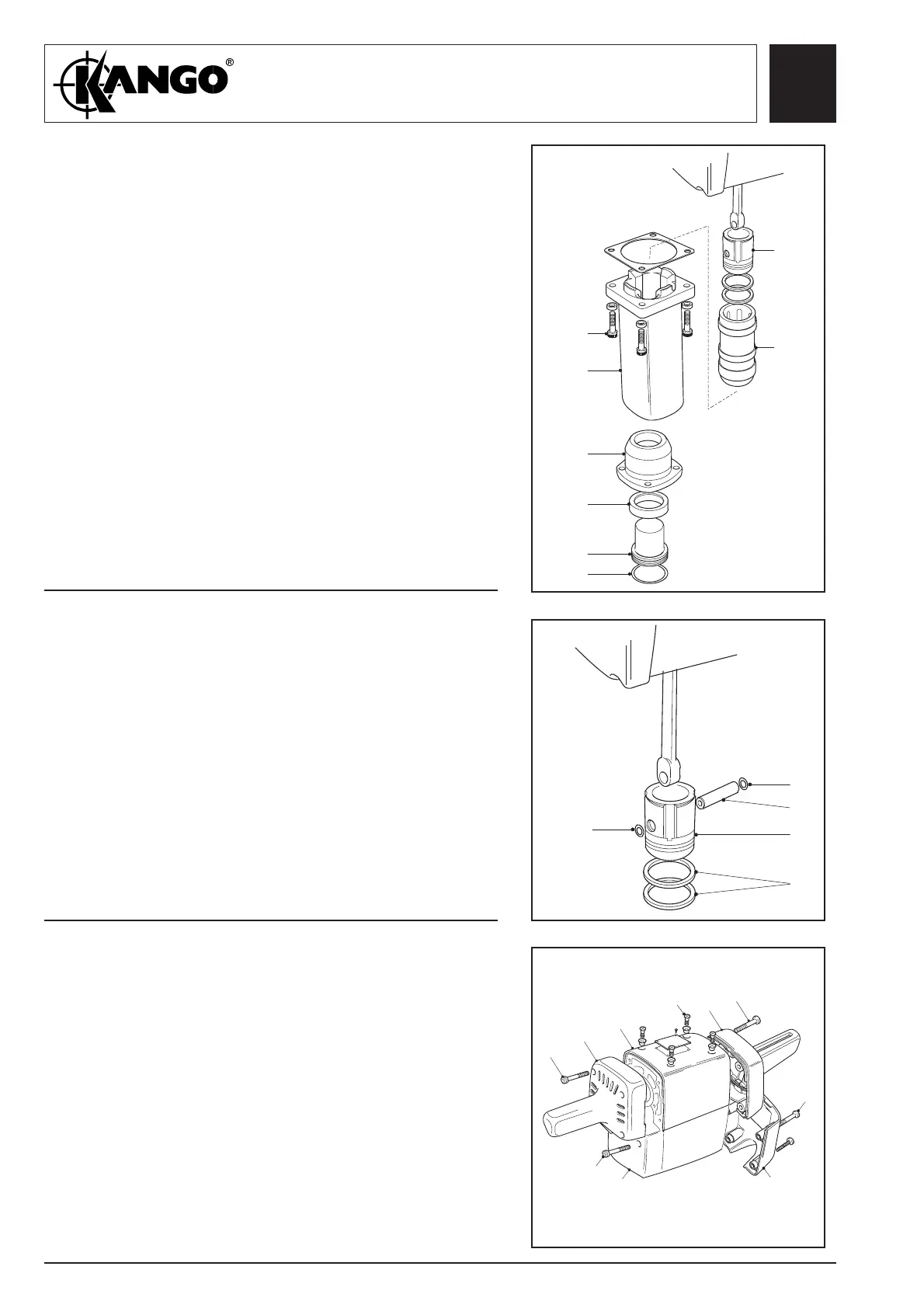

1. Remove the buffer housing (2) from the barrel and
push out the anvil (4).
2. Remove the recoil buffer (3) with a screwdriver.
3. With a screwdriver remove the anvil seal (5).
4. Remove the capscrews (7) and retaining rings and
lift off the barrel (1).
5. Pull the striker (8) off the piston (6).
1. Remove the O-rings (1) from piston (3) and push
out the gudgeon pin (2).
2. With a screwdriver remove the piston seals (4).
1. Remove the four cap screws (6) from the
handle (1) and remove the handle.
2. Remove the six capscrews (7) from the gear
case (4) and remove the cover.
3. Remove the four capscrews (8) from the switch
cover (5) and remove the cover.
4. Remove the four capscrews (9) from the switch
handle (3) and remove the switch handle (the
springs on the switch actuator will need to be
disconnected).
5. Remove the four pozi-screws (10) from the top
cover (2) and remove the top cover.
