Service and Repair Manual
Model 710/760
Service and Repair Manual
Model 760KV/SV/MV

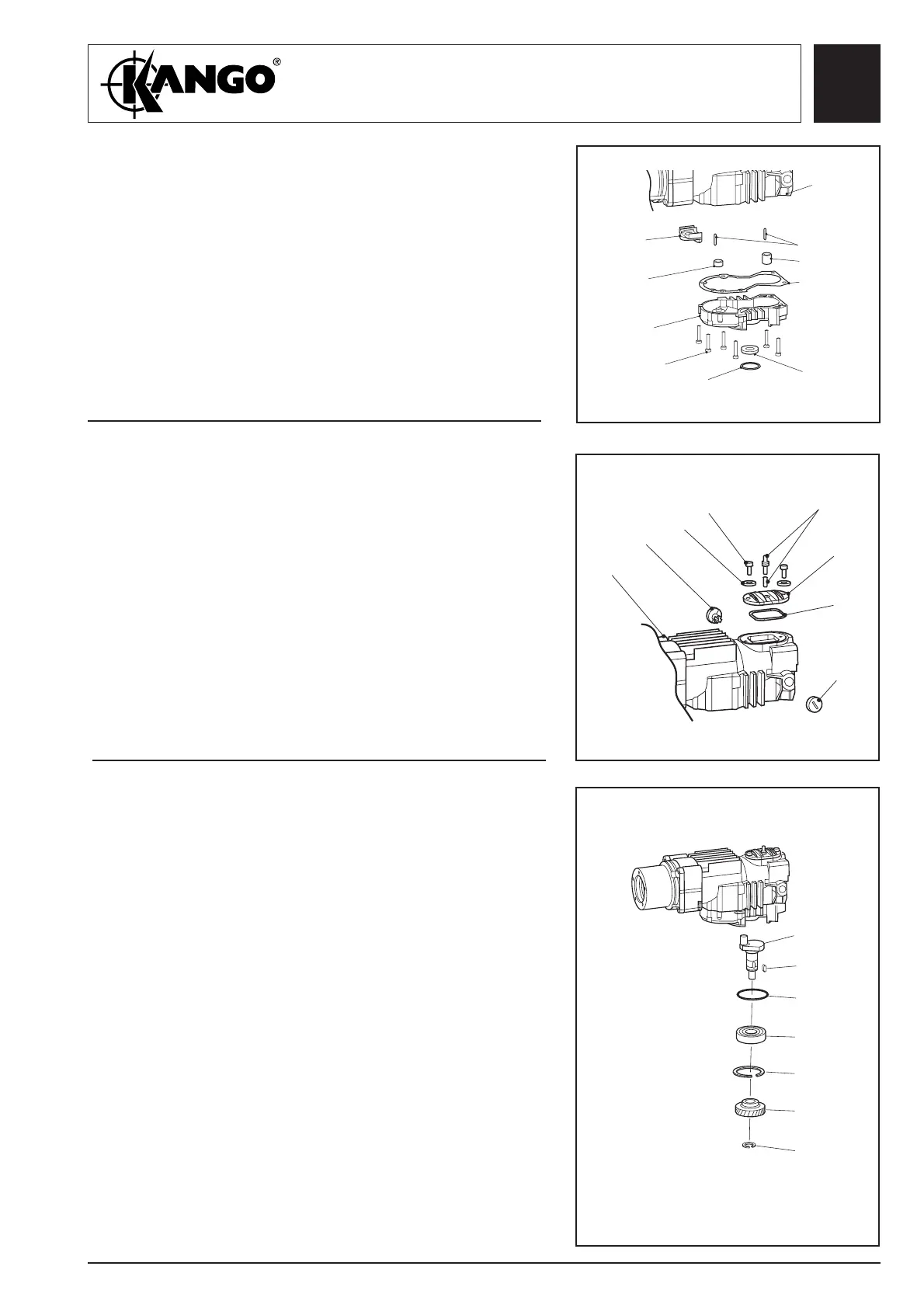

Fig. 34
Removing/
dismantling
the gear box
assembly
1. Remove blanking knob (78) (KV, SV only).
2. Remove six screws (54) and seperate the gear box
(124) from the top housing (79).
3. Remove bearing (67), lower clutch bearing (58),
seal (47) and O-ring (55).
4. Remove gasket (57) and two dowel pins (66).
67
58
124
54
55
47
57
78
(KV, SV only)
66
79
Fig. 35
Dismantling
the top
housing
1. Remove two rear handle plugs (53). Remove two
screws (50), two washers ((112) KV/SV), ((144)
MV), access cover (51), O-ring (52) and breather
assembly ((116) KV/SV), ((141) MV).
73
53
50
121 (SV, KV)
144 (MV)
126 (SV, KV)
141 (MV)
51
52
53
Fig. 36
Dismantling
the crank
assembly
1. Remove circlip (59), crank gear (60), crank circlip
(61), bearing (62) and O-ring (63) from crankshaft
(65).
2. Withdraw crank assembly and O-ring (63) from top
housing.
3. Remove crank key (64) and bearing from crank (65).
65
64
62
63
61
60
59
