Kango 710 Series User Manual

24
Service and Repair Manual
Model 710/760

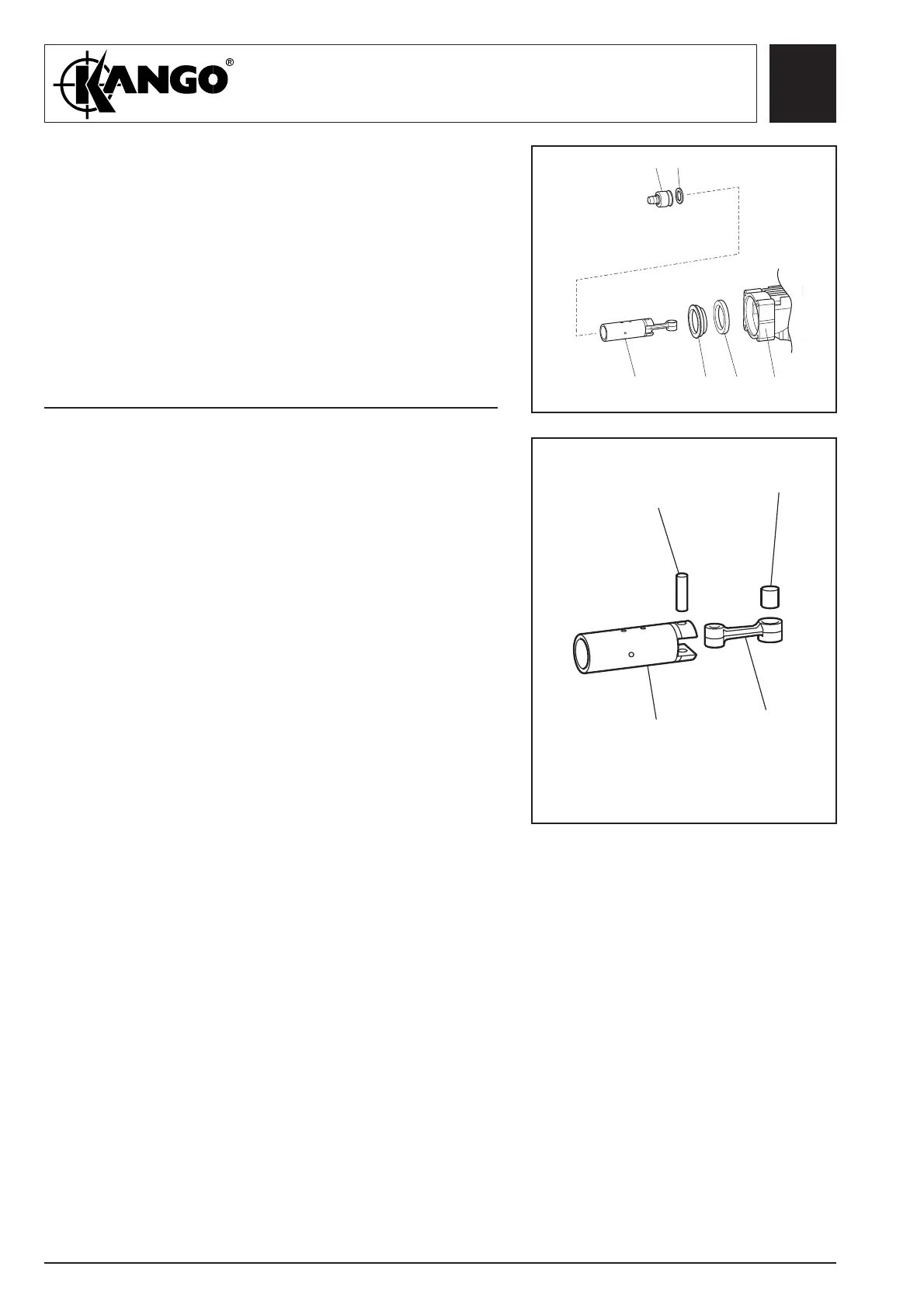

Fig. 41
Fig. 42
Dismantling
the barrel
assembly
1. Remove the piston assembly (85), striker seal (86)
and striker (87).
2. Remove crown wheel (81) and crown wheel
bearing (80) from the the top housing (73).
Dismantling
the piston
assembly
1. Remove gudgeon pin (84) from piston (85).
2. Remove bearing (82) from connecting rod (125).
73
82
87 86
8085 81
84
85
125
Service and Repair Manual
Model 760KV/760SV
