Service and Repair Manual
Model 710/760

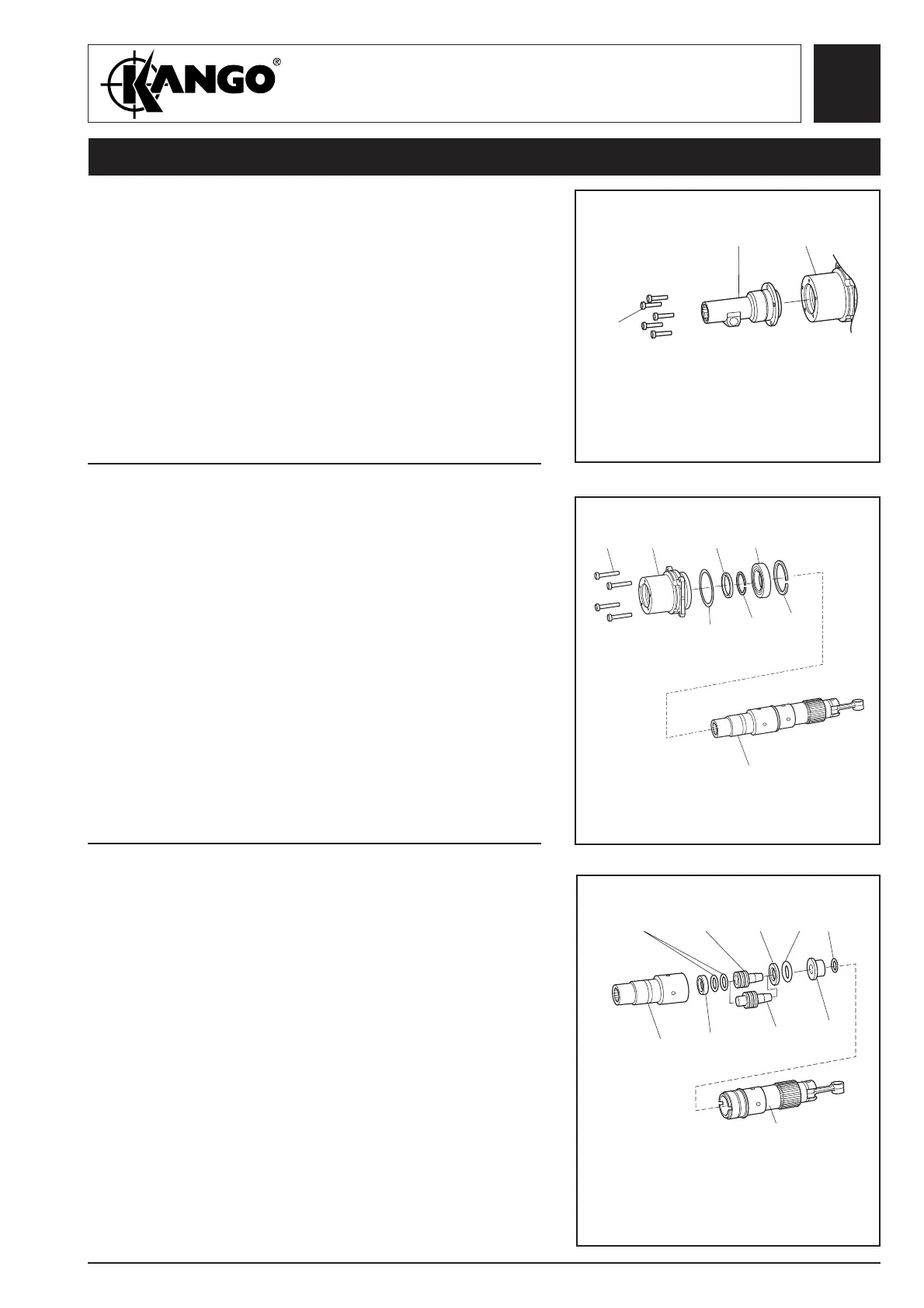

Fig. 38
Dismantling
the
nosepiece
1. Remove five screws (109) and separate nosepiece
(104) from bearing housing (102).
104
760KV/760SV DISMANTLING
109
102
Service and Repair Manual
Model 760KV/760SV
Fig. 39
Fig. 40
Dismantling
the bearing
housing
1. Remove four screws (103) and separate bearing
housing (102) from top housing.
2. Remove O-ring (101) from bearing housing (102).
3. Remove circlip (97), and withdraw driver and
barrel assembly (96). Remove circlip (99) and
press off bearing (98).
4. Remove seal (100) from bearing housing (102).
103
Dismantling
the driver
assembly
1. Unscrew driver (96) from barrel (88).
2. Remove the following items from the driver (96):
- catcher housing (90)
- O-ring (89)
- buffer ring (91)
- recoil transfer ring (92)
- anvil (93)
- anvil seals (94)
- junk ring (95)
94
102 100 98
101
99
97
96
96
95
93(760SV)
90
93(760KV) 92 91 89
88
