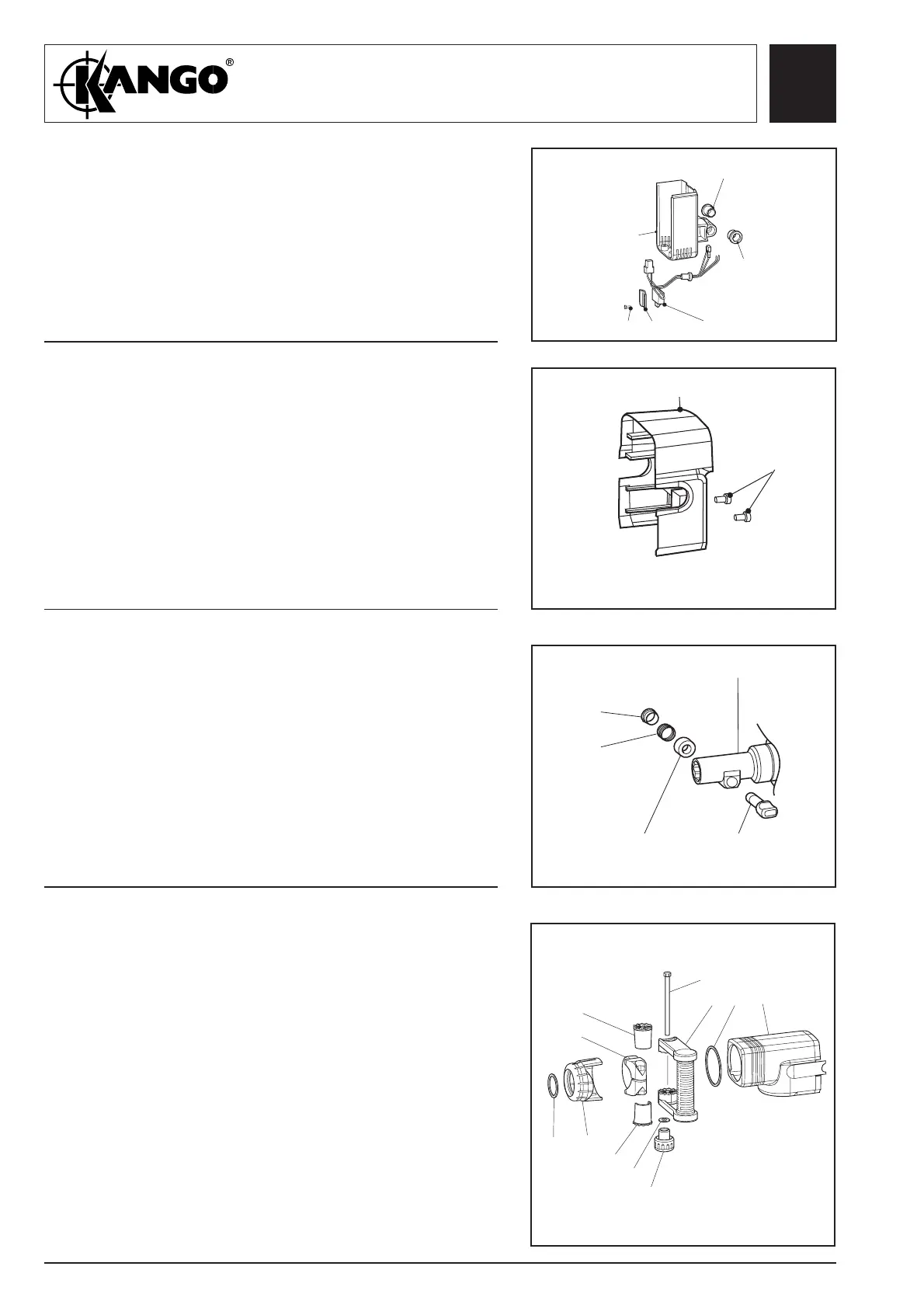

Service and Repair Manual
Model 710/760
Service and Repair Manual
Model 710BV/KV/MV
Fig. 5
Removing the
upper handle
cover
1. Remove two screws (22) and upper handle cover
(23).
23
22
Fig. 4
Dismantling
the lower
handle cover
1. Remove two pivot isolators (15), screw (27), retainer
(28) and field lead grommet complete with loom (26)
from lower handle support (13).
13
15
15
Fig. 7
Dismantling
the top cover
(BV, KV
only)
1. Remove retaining ring (111) and pull off cover
(110).
2. Remove handle locking knob (108), washer (107),
bolt (105). Remove handle (104). Remove
adaptors (106).
3. Remove strap casting (109) and remove retaining
ring (103) from top cover (102). Remove top
cover (102).
108
107
106
103
110
111
106
105
104
102
109
Dismantling
the latch bar
1. Remove latch retainer (100), latch spring (99),
spring cover (98) and latch bar (97) from nose
piece (96).
Fig. 6
96
100
99
98
97
