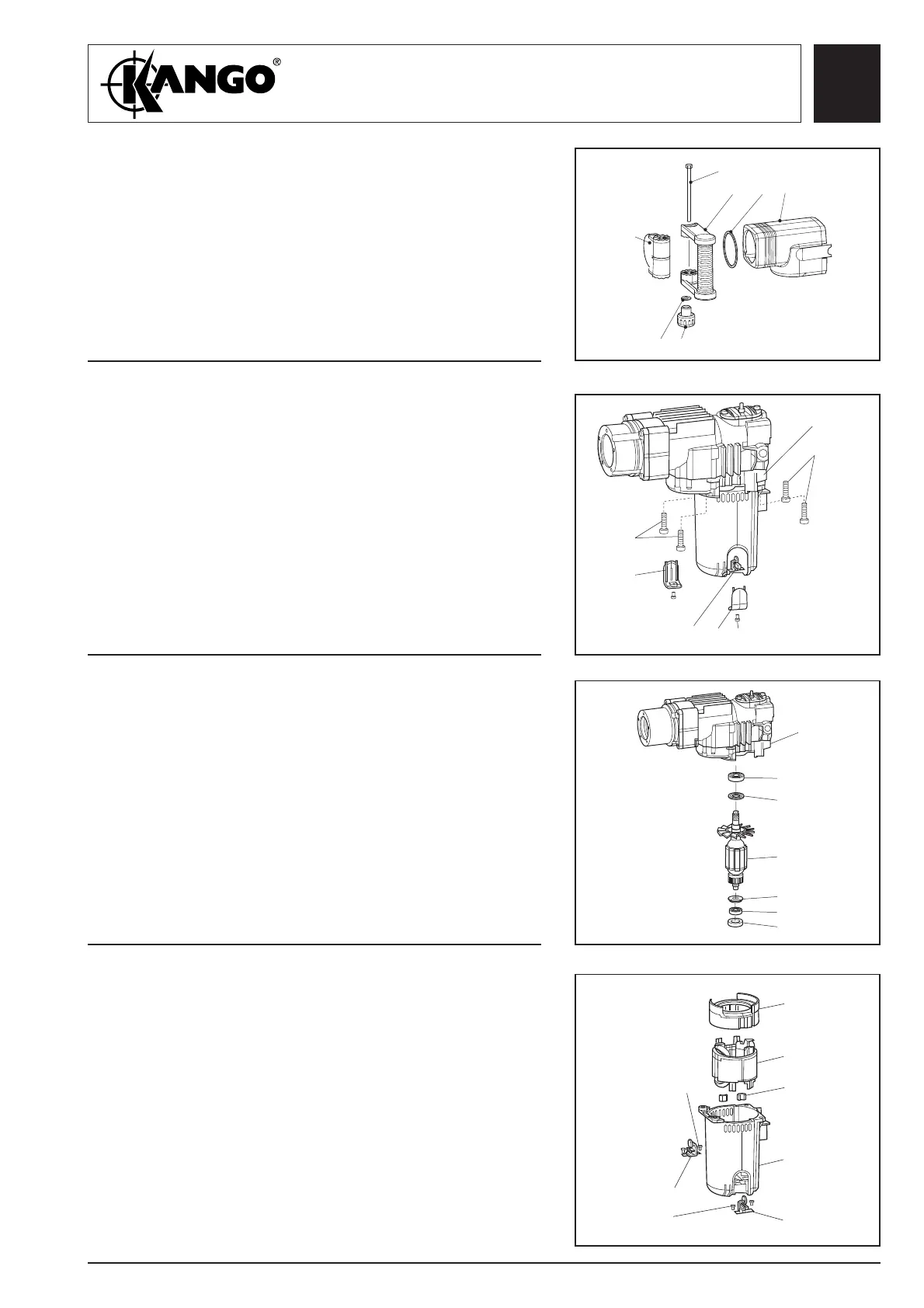

Service and Repair Manual
Model 710/760
Service and Repair Manual
Model 710BV/KV/MV
Fig. 9
1. Remove brush cover screw (29), brush cover (31).
Pull back and release brushes (32) from brush
holder (33).
2. Remove two screws (36), two screws (50) and
withdraw the motor from gear box (112).
Removing
the motor
112
36
Fig. 10
Dismantling
the motor
(armature)
1. Withdraw the armature (43) from the gear box
(112) and remove bearing mount (39), bearing
(40) and washer (41).
2. Remove bearing (46) and sealing ring (45).
112
39
40
41
43
45
46
Fig. 11
Dismantling
the motor
housing
1. Remove two brushes (32).
2. Withdraw baffle (42), field coil assembly (38) and
two field location rubbers (37) from motor
housing (35).
3. Remove four screws (34) and two brush holders
(33).
42
30
34
38
37
33
34
33
32
29
31
35
Fig. 8
Dismantling
the top cover
(MV only)
1. Remove handle locking knob (106), washer (105),
bolt (104). Remove handle (103).
2. Remove strap casting (107) and remove retaining
ring (102) from top cover (101).
106
105
101
102
103
104
107
50
