14

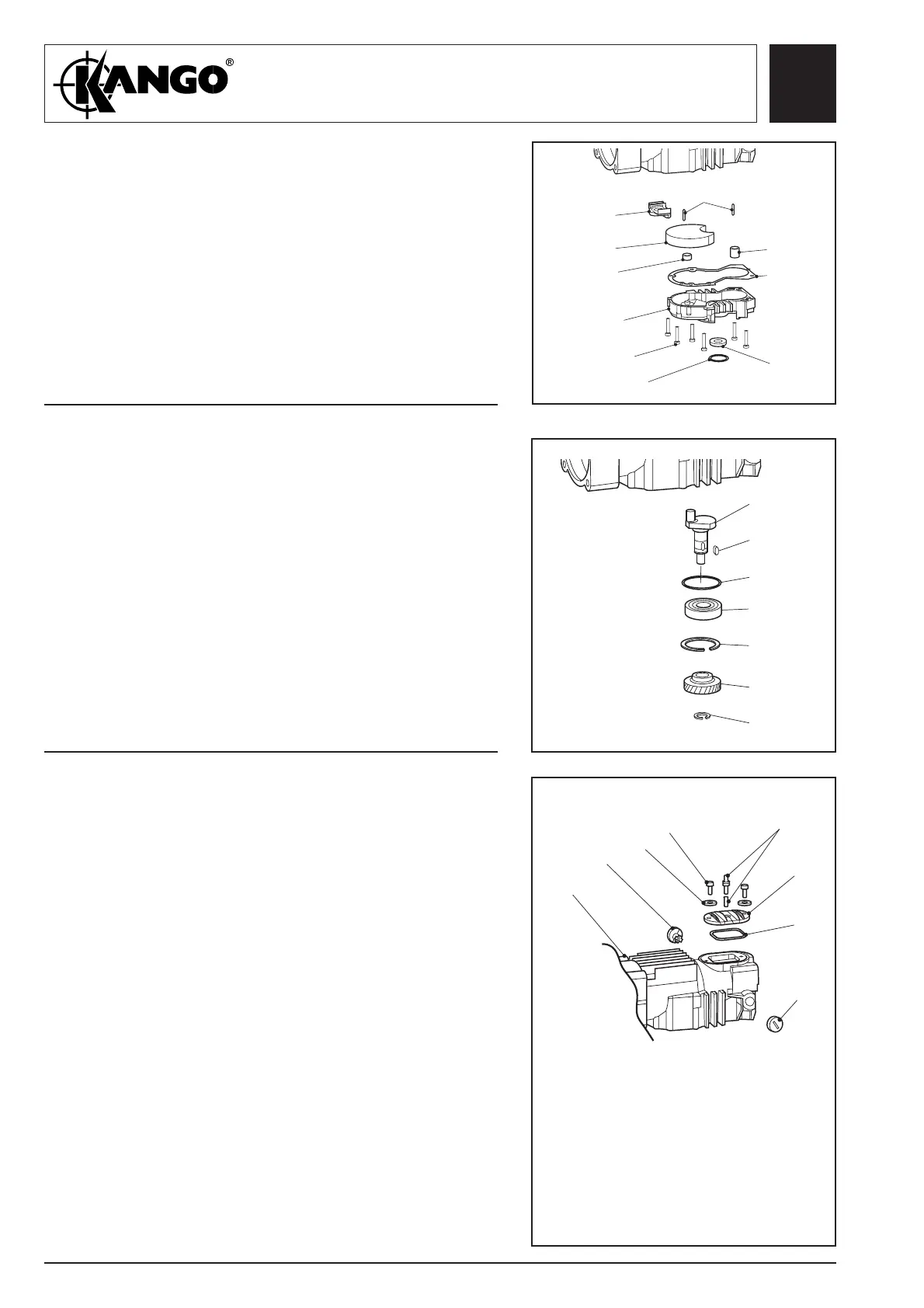

Service and Repair Manual
Model 710/760
Fig. 13
Dismantling
the crank
assembly
65
64
63
62
61
60
59
1. Remove circlip (59), crank gear (60), crank circlip
(61), bearing (62) and O-ring (63) from
crankshaft (65).
2. Withdraw crank assembly and O-ring (63) from
top housing.
3. Remove crank key (64) and bearing from
crank (65).
Service and Repair Manual
Model 710BV/KV/MV
Fig. 12
Removing/
dismantling
the gear box
assembly
1. Remove blanking knob (72).
2. Remove six screws (54) and separate the gearbox
((112) BV, KV), ((120) MV) from the top
housing.
3. Remove gearbox foam insert (68), bearing (67),
lower clutch bearing (58), remove O-ring (55),
and press out seal (47).
4. Remove gasket (57) and two dowel pins (66).
68
67
58
112 (BV, KV)
120 (MV)
54
55
66
72
57
Dismantling
the top
housing
Fig. 14
1. Remove two rear handle plugs (53). Remove two
screws (50), two washers ((116) BV KV) ((119)
MV), access cover (51), O-ring (52), and breather
assembly ((113) BV, KV), ((124) MV).
73
53
50
116 (BV, KV)
119 (MV)
113 (BV, KV)
124 (MV)
51
52
53
47
