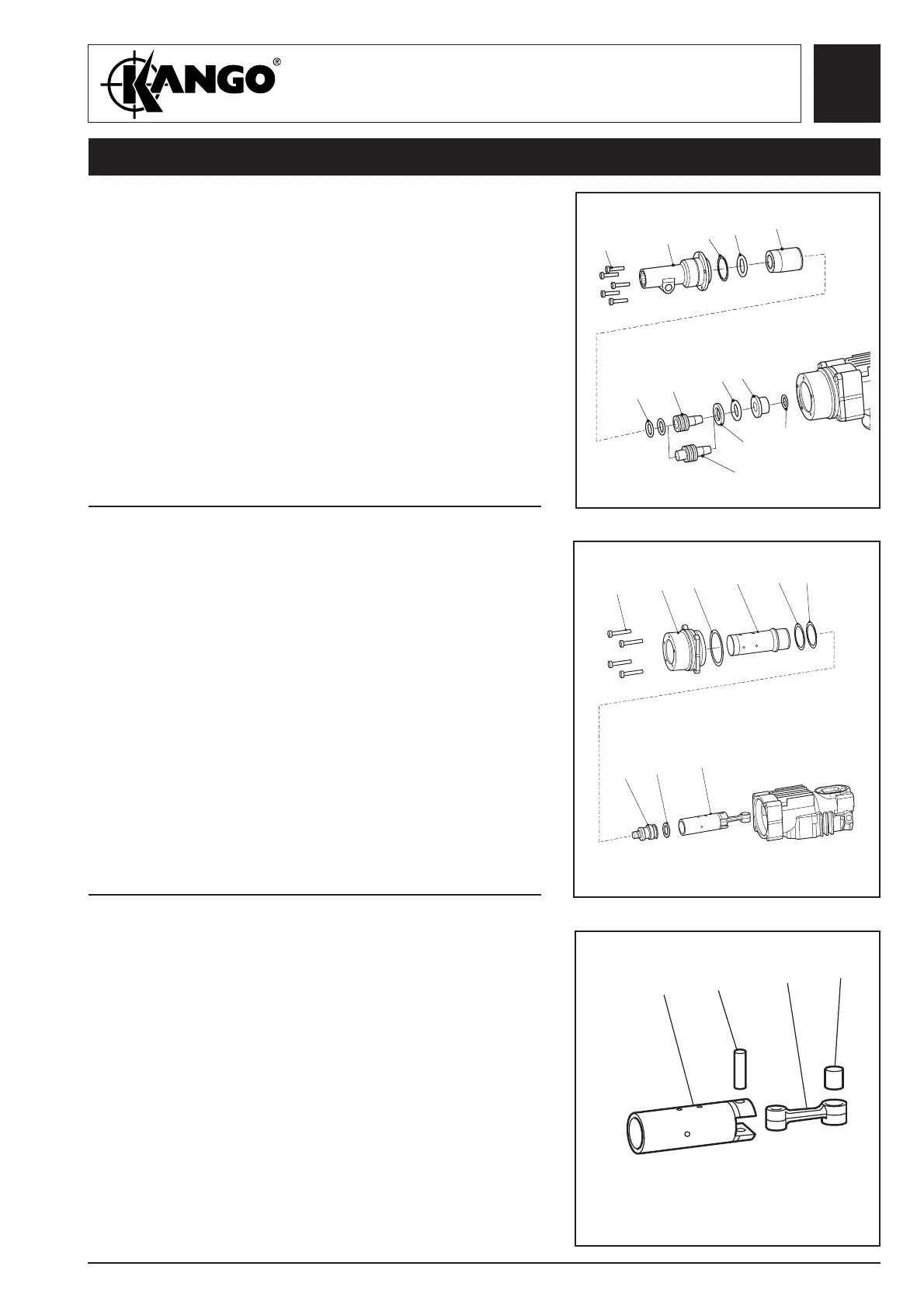

15
Service and Repair Manual
Model 710/760
Fig. 15
Dismantling
the barrel
assembly
1. Remove four screws (86), transmitter housing
(85), O-ring (84) and the following items:
- barrel (83)
- washer (82)
- shim (81)
- striker (79)
- piston (77)
Removing
the
nosepiece
1. Remove five screws (101), nosepiece (96) and the
following items:
- O-ring (95)
- O-ring (94)
- anvil sleeve (93)
- anvil seals (92)
- anvil (91)
- transfer ring (90)
- buffer ring (89)
- catcher housing (88)
- O-ring (87)
Fig. 16
710KV/710BV DISMANTLING
86
85
84
83
81
79
78
77
82
101
96
95
94
93
92
91
(710KV)
91
(710BV)
90
89
88
87
Service and Repair Manual
Model 710KV/710BV
Fig. 17
Dismantling
the piston
assembly
1. Remove gudgeon pin (76) from piston (77).
2. Remove bearing (74) from connecting rod (114).
77
76
114
74
