Service and Repair Manual
Model 710/760
Service and Repair Manual
Model 710MV
Fig. 21
Fig. 22

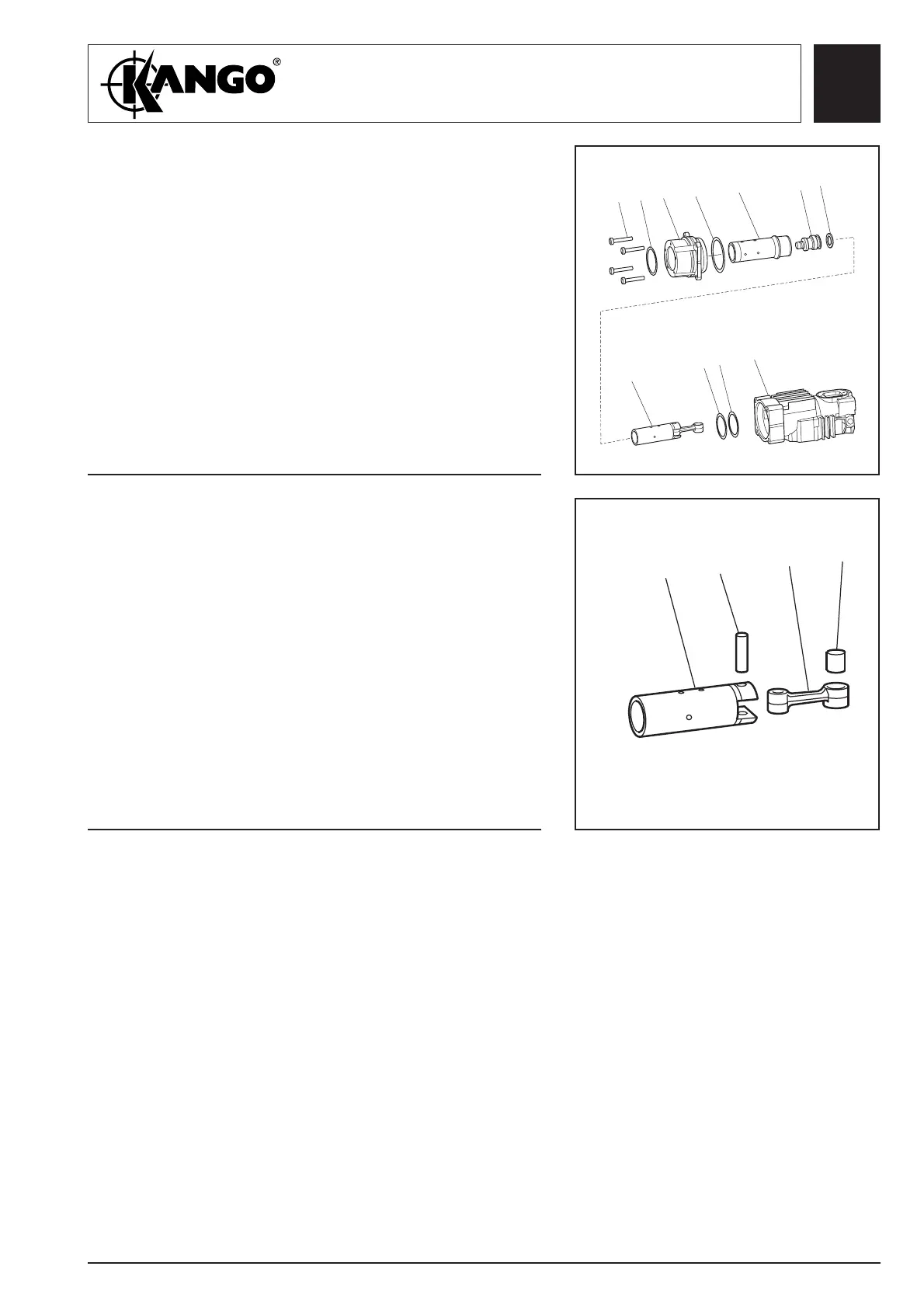

Dismantling
the barrel
assembly
1. Remove four screws (87) and transmitter housing
(85) from top housing (73).
2. Remove O-ring (84) and striker (82), seal (81)
and piston (80) from barrel (83).
3. Remove shim (76), washer (75) and O-ring (86).
1. Remove gudgeon pin (79) from piston (80).
2. Remove bearing (77) from connecting rod (125).
Dismantling
the piston
assembly
87
80
79
125
77
86
85
84
83
82
81
80
76
75
73
