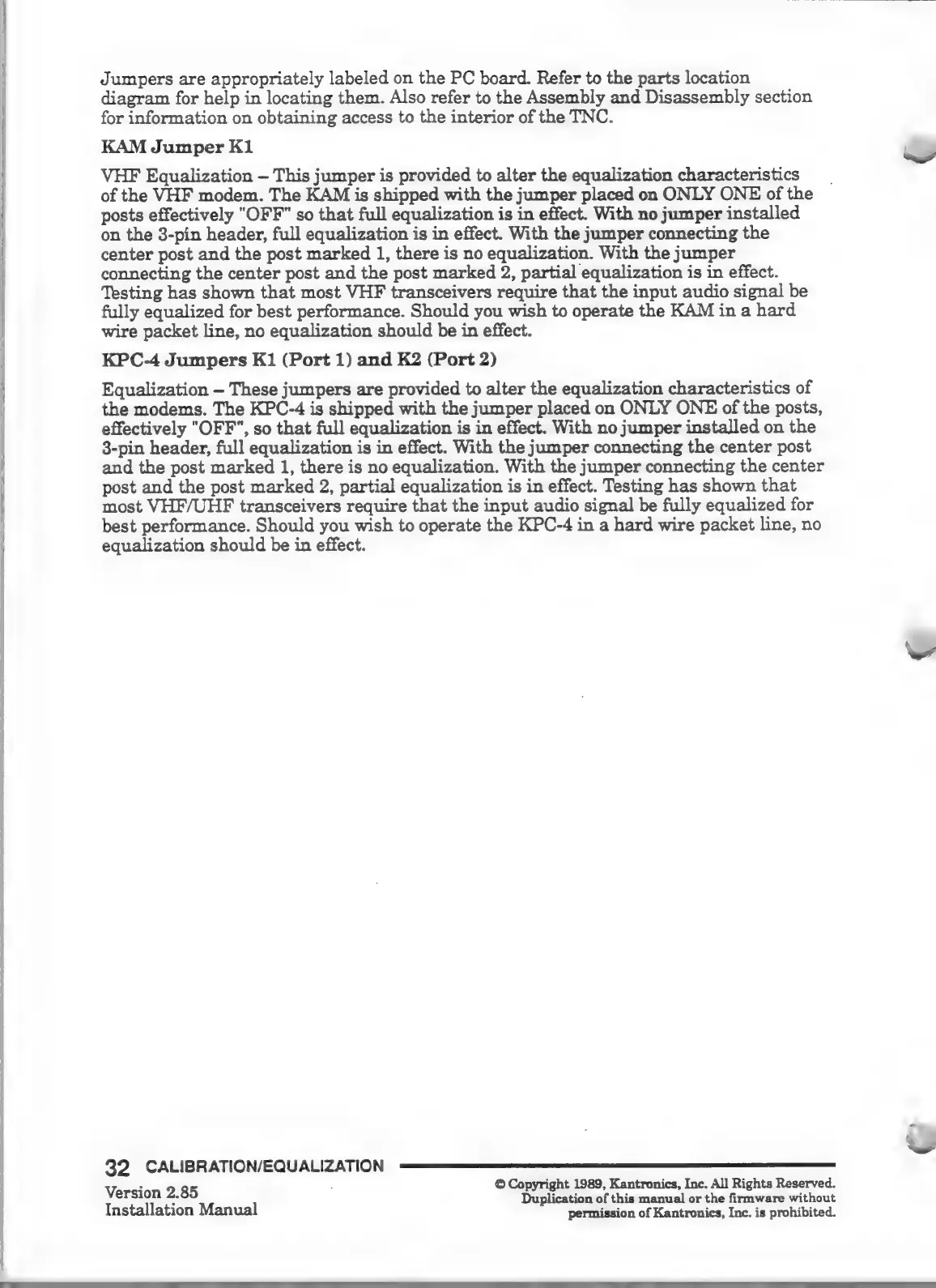

Jumpers are appropriately labeled on the PC board. Refer to the parts location
diagram for help in locating them. Also refer to the Assembly and Disassembly section
for information on obtaining access to the interior of the TNC.
KAM Jumper K1
VHF Equalization - This jumper is provided to alter the equalization characteristics
of the VHF modem. The KAM is shipped with the jumper placed on ONLY ONE of the
posts effectively "OFF" so that full equalization is in effect. With no jumper installed
on the 3-pin header, full equalization is in effect. With the jumper connecting the
center post and the post marked 1, there is no equalization. With the jumper
connecting the center post and the post marked 2, partial equalization is in effect.
Testing has shown that most VHF transceivers require that the input audio signal be
fully equalized for best performance. Should you wish to operate the KAM in a hard
wire packet line, no equalization should be in effect.
KPC-4 Jumpers K1 (Port 1) and K2 (Port 2)
Equalization - These jumpers are provided to alter the equalization characteristics of
the modems. The KPC-4 is shipped with the jumper placed on ONLY ONE of the posts,
effectively "OFF", so that full equalization is in effect. With no jumper installed on the
3-pin header, full equalization is in effect. With the jumper connecting the center post
and the post marked 1, there is no equalization. With the jumper connecting the center
post and the post marked 2, partial equalization is in effect. Testing has shown that
most VHF/UHF transceivers require that the input audio signal be fully equalized for
best performance. Should you wish to operate the KPC-4 in a hard wire packet line, no
equalization should be in effect.
32 CALIBRATION/EQUALIZATION
