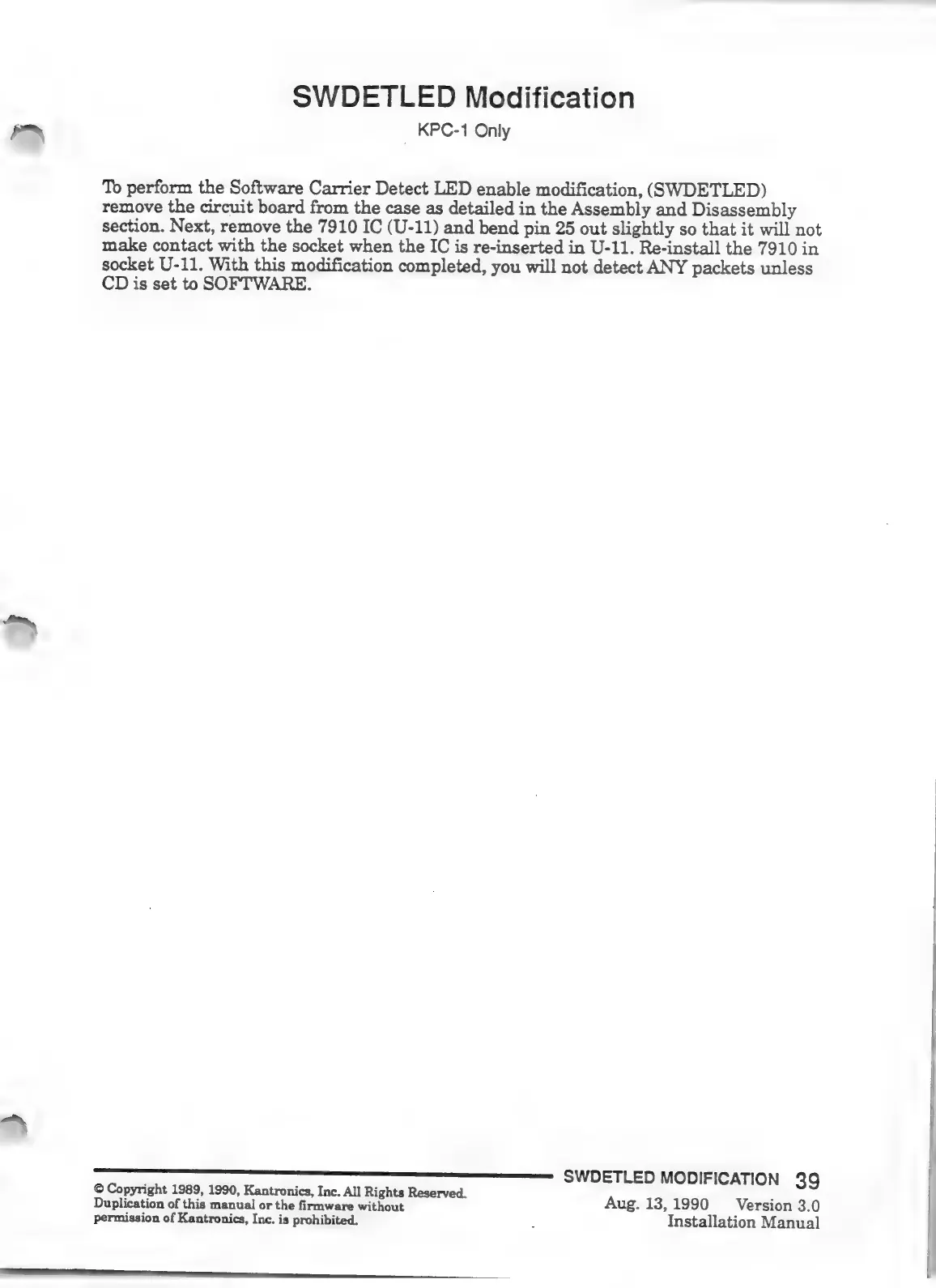

SWDETLED Modification
KPC-1 Only
To
perform
the
Software
Carrier
Detect
LED
enable
modification,
(SWDETLED)
remove
the
circuit
board
from
the
case
as
detailed
in
the
Assembly
and
Disassembly
section.
Next,
remove
the
7910
IC
(U-11)
and
bend
pin
25
out
slightly
so
that
it
will
not
make
contact
with
the
socket
when
the
IC
is
re-inserted
in
U-11.
Re-install
the
7910
in
socket
U-11.
With
this
modification
completed,
you
will
not
detect
ANY
packets
unless
CD
is
set
to
SOFTWARE.
©
Copyright
1989, 1990,
Kantronics,
Inc.
All
Rights
Reserved.
2
Duplication
of
this
manual
or
the
firmware
without
Aug.
13,
1990
Version
3.0
permission
of
Kantronics,
Inc.
is
prohibited.
>
