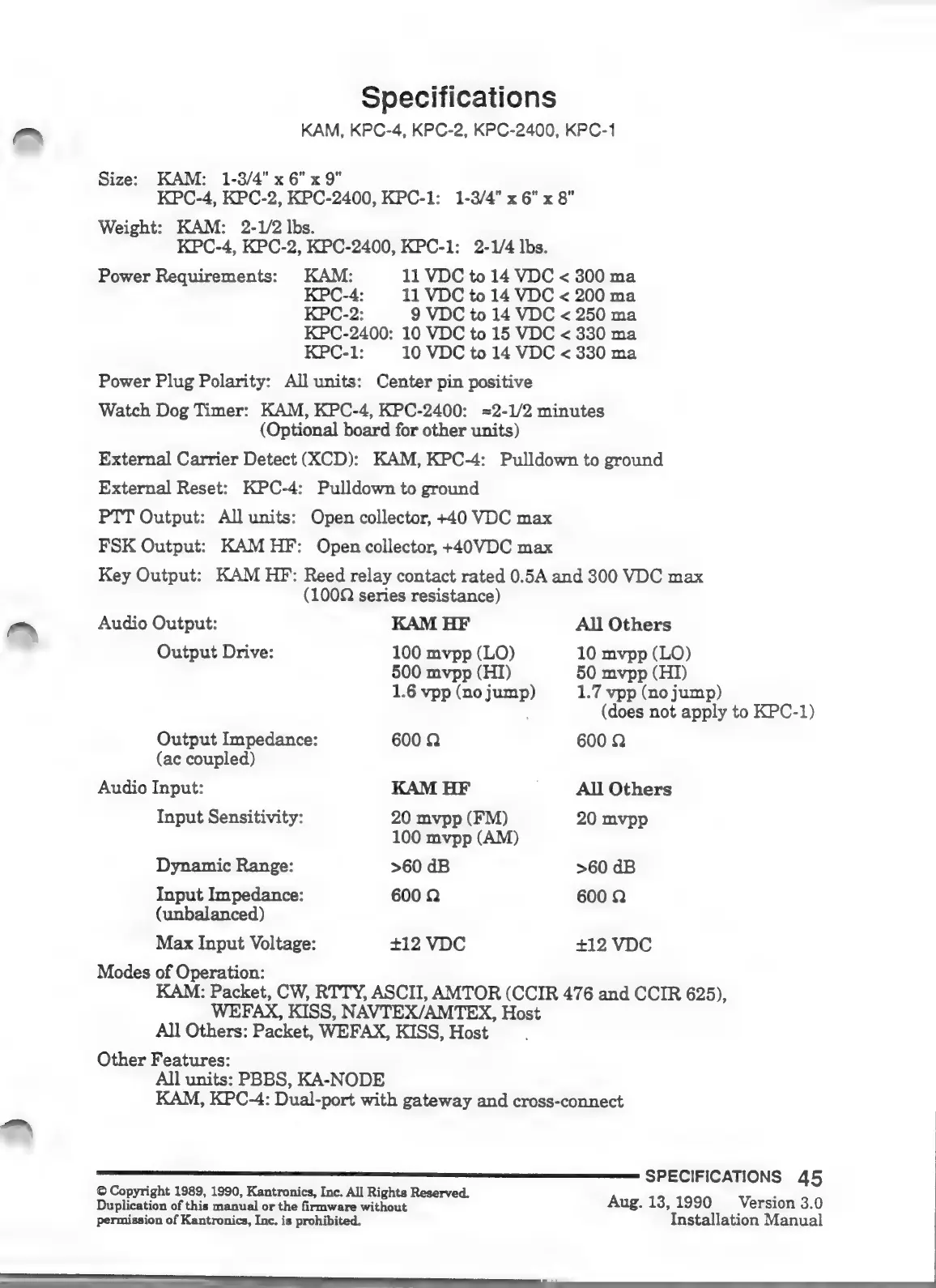

Specifications
m KAM, KPC-4, KPC-2, KPC-2400, KPC-1
Size: KAM: 1-3/4" x6" x9"
KPC-4, KPC-2, KPC-2400, KPC-1: 1-3/4" x 6" ع󰾯 8"
Weight: KAM: 2-1/2 lbs.
KPC-4, KPC-2, KPC-2400, KPC-1: 2-1/4 lbs.
Power Requirements: KAM: 11 VDC to 14 VDC < 300 ma
KPC-4: 11 VDC to 14 VDC < 200 ma
KPC-2: 9 VDC to 14 VDC < 250 ma
KPC-2400: 10 VDC to 15 VDC < 330 ma
KPC-1: 10 VDC to 14 VDC < 330 ma
Power Plug Polarity: Allunits: Center pin positive
Watch Dog Timer: KAM, KPC-4, KPC-2400: =2-1/2 minutes
(Optional board for other units)
External Carrier Detect (XCD): KAM, KPC-4: Pulldown to ground
External Reset: KPC-4: Pulldown to ground
PTT Output: All units: Open collector, +40 VDC max
FSK Output: KAM HF: Open collector, +40VDC max
Key Output: KAM HF: Reed relay contact rated 0.5A and 300 VDC max
(100N series resistance)
en Audio Output: KAM HF All Others
Output Drive: 100 mvpp (LO) 10 mvpp (LO)
500 mvpp (HI) 50 mvpp (HI)
1.6 vpp (nojump) 1.7 vpp (no jump)
: (does not apply to KPC-1)
Output Impedance: 600 Q 600 Q
(ac coupled)
Audio Input: KAM HF All Others
Input Sensitivity: 20 mvpp (FM) 20 mvpp
100 mvpp (AM)
Dynamic Range: <60 dB »60 dB
Input Impedance: 600 Q 600 Q
(unbalanced)
Max Input Voltage: +12 VDC +12 VDC
Modes of Operation:
KAM:
Packet,
CW,
RTTY,
ASCII,
AMTOR
(CCIR
476
and
CCIR
625),
WEFAX,
KISS,
NAVTEX/AMTEX,
Host
A]]
Others:
Packet,
WEFAX,
KISS,
Host
Other Features:
All units: PBBS, KA-NODE
KAM, KPC-4: Dual-port with gateway and cross-connect
—
SPECIFICATIONS 5
©
