9. Technical specifications
Electrical connection
Voltage .......................................................... 120 V
Type of current......................... single phase, 60 Hz
Voltage in hand-gun ......................................... 0 V
Performance data
Heater power consumption ........................ 1500 W
Max. operating pressure ................................ 40 psi
Permissible operating pressure ..................... 58 psi
Heating time (per 0.264 gal. of water) approx. 6 min
Max. steam volume ................................... 0.016 gpm
Dimensions
Weight without accessories........................... 6.4 lbs
Max. water capacity..................................... 0.32 gal.
Boiler capacity ............................................... 0.4 gal.
Width .......................................................... 9.25 in
Length......................................................... 13.8 in
Height .......................................................... 11.4 in

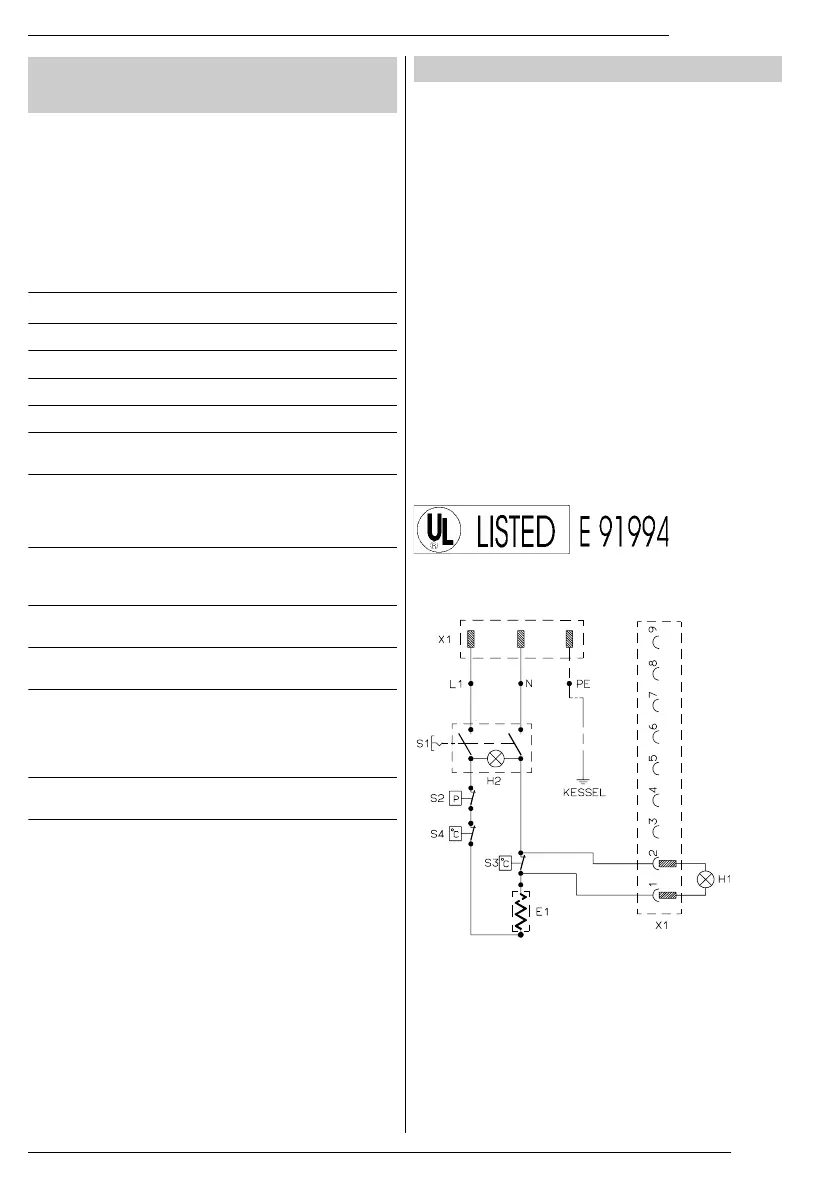

9.1 Circuit diagram
E1 Heating element, 1500 W
H1 Indicator lamp, low-water warning
H2 Indicator lamp – heater switch
S1 Heater switch
S2 Pressure switch
S3 Low-water thermostat
S4 Safety thermostat
X1 Internal plug
8. Accessories and
replacement parts
Only accessories and replacement parts appro-
ved by the manufacturer may be used with this
cleaner. Original accessories and original repla-
cement parts guarantee that the cleaner
remains safe and reliable to operate.
On the last page of these operating instructions
there is a picture of the cleaner with the order
numbers for the individual parts.
seirosseccalaicepS.onredrO
elzzonmaetsyrotoR
490-368.2
revomerrepapllaW
260-368.2
elzzonwodniW
511-031.4
pirtseegeeuqS
041-372.6
teshsurbralucriC
elzzontopsrof).scp4(
850-368.2
teshsurberiw-ssarbralucriC
).scp3(
seltsirberiw-ssarbhtiw:elzzontopsrof
tridnrobbutsylralucitrapgnivomerrof
160-368.2
:IteshtolC
,shtolcgnipiwegral2
sno-pilsgnillewot-yrret3
910-069.6
:IIteshtolC
sno-pilsgnillewot-yrret5
099-073.6
:IIIteshtolC
htolcgnipiwegral3
753-963.6
:teshtolcerbiforciM
,htolcgnipiwegral1
ylhgiheratahtno-pilsgnillewot-yrret1
egralpukcipotelbadnatnebrosba
tridfostnuoma
129-509.6
:115MRreificlacedlacigoloiB
hcaeg001fosgab3
932-092.6
