Technical Data
Power supply
Voltage (at 1~50 Hz) 230-240 V
Connected load 1.2 kW
Supply fuses (time-lag) 10 A
Safety class 1
Water connection
Supply temperature (max.) 40 °C
Supply volume (min.) 600 l/h
Supply pressure (max.) 2-12 bar
Performance data
Operating pressure 85 bar
max. permissible pump pressure 100 bar
EWE* (with dirt blaster) 150
Flow volume 300 l/h
Cleaning agent metering 20 l/h
Suction height from
open container (20 °C) 1 m
Recoil force of the handgun 10 N
Unit vibrations 0,8 m/s²
Sound level L
PA
(EN60704-1) 74 dB(A)
Dimensions
Length/Width/Height 375/204/294 mm
Weight 10 kg
* EWE = equivalent washing efficiency

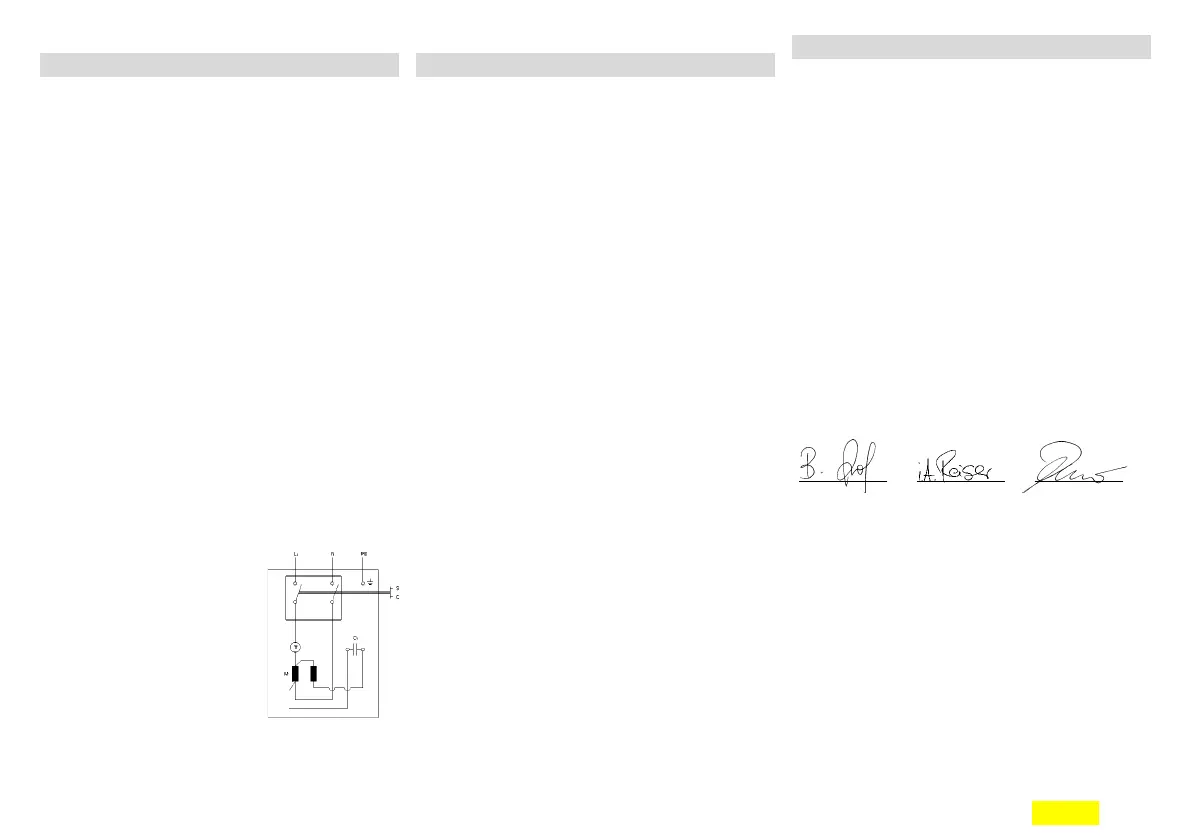

Circuit Diagram
C1 Capacitor
M1 Motor
Q1 Switch
T Temperature limiter
S1 Pressure switch
Service
Guarantee
In each country the guarantee conditions issued by
our responsible sales company are applicable. We
clear any faults occurring in the unit free of charge
during the period of guarantee providing the cause
is a fault in a material or in the manufacture.
In the case of a claim under the guarantee please
contact your dealer or the nearest authorized cu-
stomer service point, accompanying your claim with
accessories and purchase voucher.
Customer Service
In the case of questions or faults our Kärcher bran-
ches will be pleased to assist you further:
GB
Kärcher (U.K.) Ltd.
Kärcher House, Beaumont Road
Banbury Oxon, OX16 7TB
☎
0 12 95 27 15 23
AUS
Kärcher Pty. Ltd.
2/158 Browns Road
Noble Park, VIC 3174
☎
03 9795 4422
NZ
Kärcher Ltd.
12A Ron Driver Place
East Tamaki
Auckland
☎
0 92 74 46 03
EU Declaration of Conformity
We hereby declare that the equipment described
below conforms to the relevant fundamental safety
and health requirements of the appropriate EU Di-
rectives, both in its basic design and construction
as well as in the version marketed by us.This decla-
ration will cease to be valid if any modifications are
made to the machine without our express approval.
Product: High-pressure cleaner
Model: 1.241-xxx
Relevant EU Directives:
EU Machinery Directive (98/37/EEC).
EU Low-Voltage Equipment Directive (73/23/EEC)
amended by 93/68/EEC.
EU Directive on Electromagnetic Compatibility (89/
336/EEC) amended by 91/263/EEC, 92/31/EEC, 93/
68/EEC.
Harmonised standards applied:
DIN EN 55014-1:1993, DIN EN 55014-2:1997,
DIN EN 60335-1, DIN EN 60335-2-79:1998, DIN
EN 61000-3-2:1995, DIN EN 61000-3-3:1995
Appropriate internal measures have been taken to ensure that se-
ries-production units conform at all times to the requirements of current
EU Directives and relevant standards.The signatories are empowe-
red to represent and act on behalf of the company management.
Alfred Kärcher Kommanditgesellschaft. Sitz Winnenden.
Registergericht: Waiblingen, HRA 169.
Persönlich haftende Gesellschafterin:
Kärcher Reinigungstechnik GmbH. Sitz Winnenden, 2404
Registergericht Waiblingen, HRB
Geschäftsführer: Dr. Bernhard Graf, Roland Kamm, Herbert
Konhäusner, stellv.: Hartmut Jenner, Thomas Schöbinger
Dr. B. Graf S. Reiser H. Jenner
