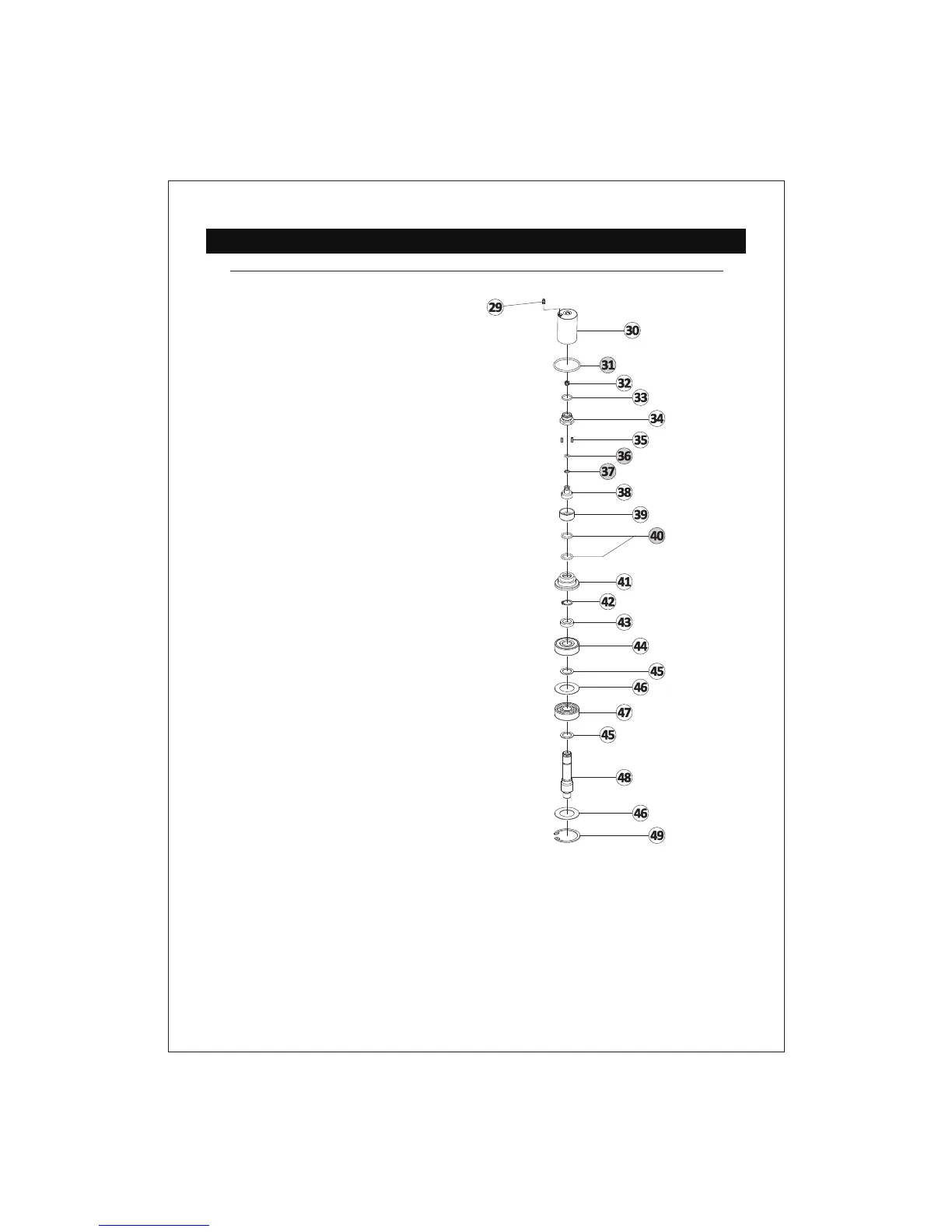

PRODUCT EXPLODED AND PARTS LIST
Swivel Assembly
29. Grease Nipple
30. Swivel Housing
31. O-Ring*
32. Compression Spring
33. O-Ring
34. Bolt
35. Pin
36. O-Ring*
37. Back up Ring*
38. Stem
39. Bearing Retainer, Small
40. O-Ring*
41. Bearing Retainer
42. Snap Ring
43. Bearing Back-up Ring
44. Upper Bearing
45. Bearing Spacer
46. Washer
47. Lower Bearing
48. Rotor Shaft
49. Snap Ring
* Kit, Swivel Seals, A+SC21-SC24
8.921-833.0
(Items 31, 36, 37, 40)
