Kärcher A Plus SC21 - Product Exploded and Parts List

PRODUCT EXPLODED AND PARTS LIST

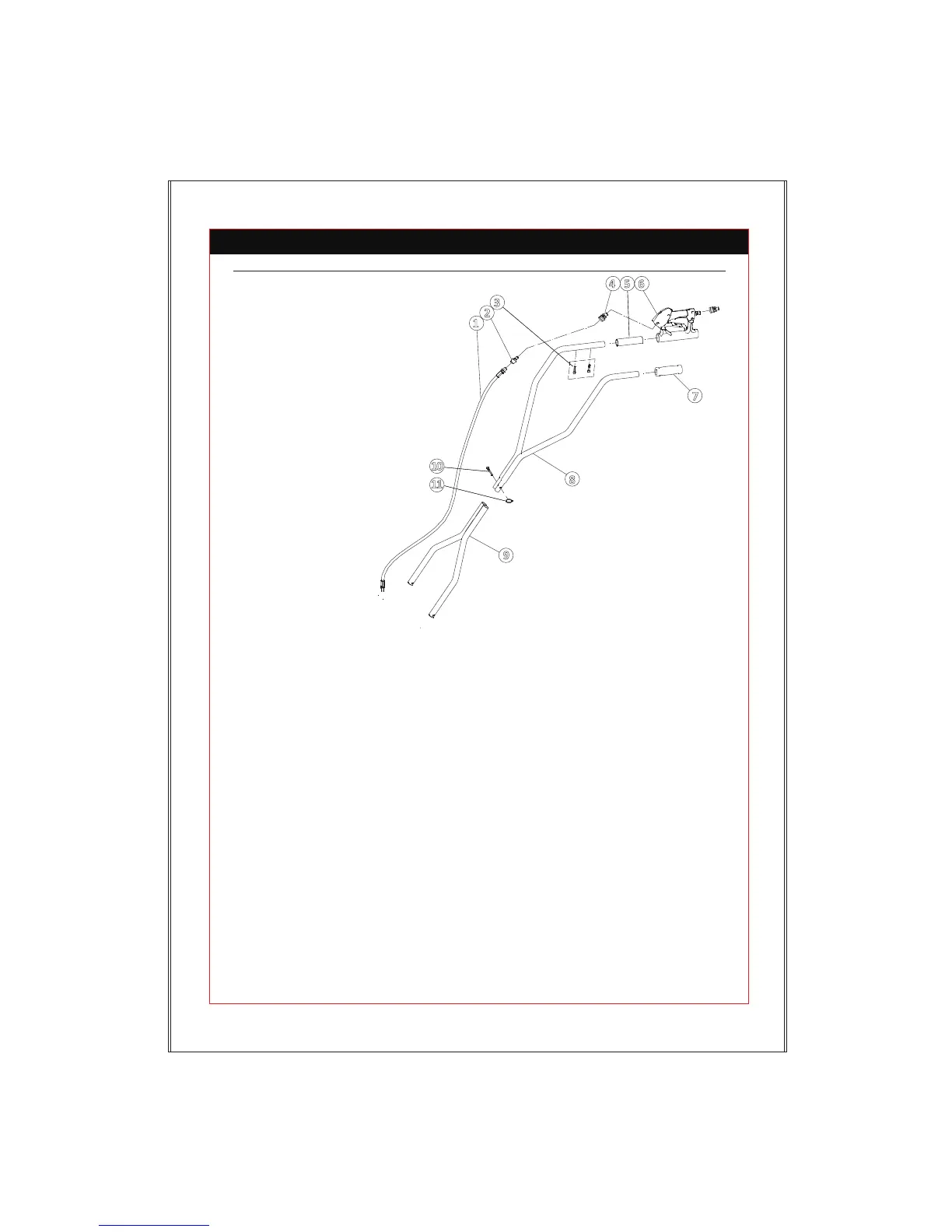

Handle Assembly
AVAILABLE REPAIR PARTS AND KITS
1. Hose, A+SC21-SC24 8.753-584.0
2. Coupler, ¼” Plug, Female 8.707-136.0
4. ¼” Quick Connect 8.750-696.0
KIT, SPRAY GUN, A+SC21-SC24
8.921-834.0
3. Screw M6X30
4. ¼” Quick Connect
5. Sleeve
6. Trigger Gun
KIT, HANDLE ASSEMBLY, A+SC21-SC24
8.921-835.0
7. Grip
8. Upper Handle
9. Lower Handle
10. Clevis Pin
11. Clevis Pull Ring
5 64
8
9
11
10
1
2
3
7
9
