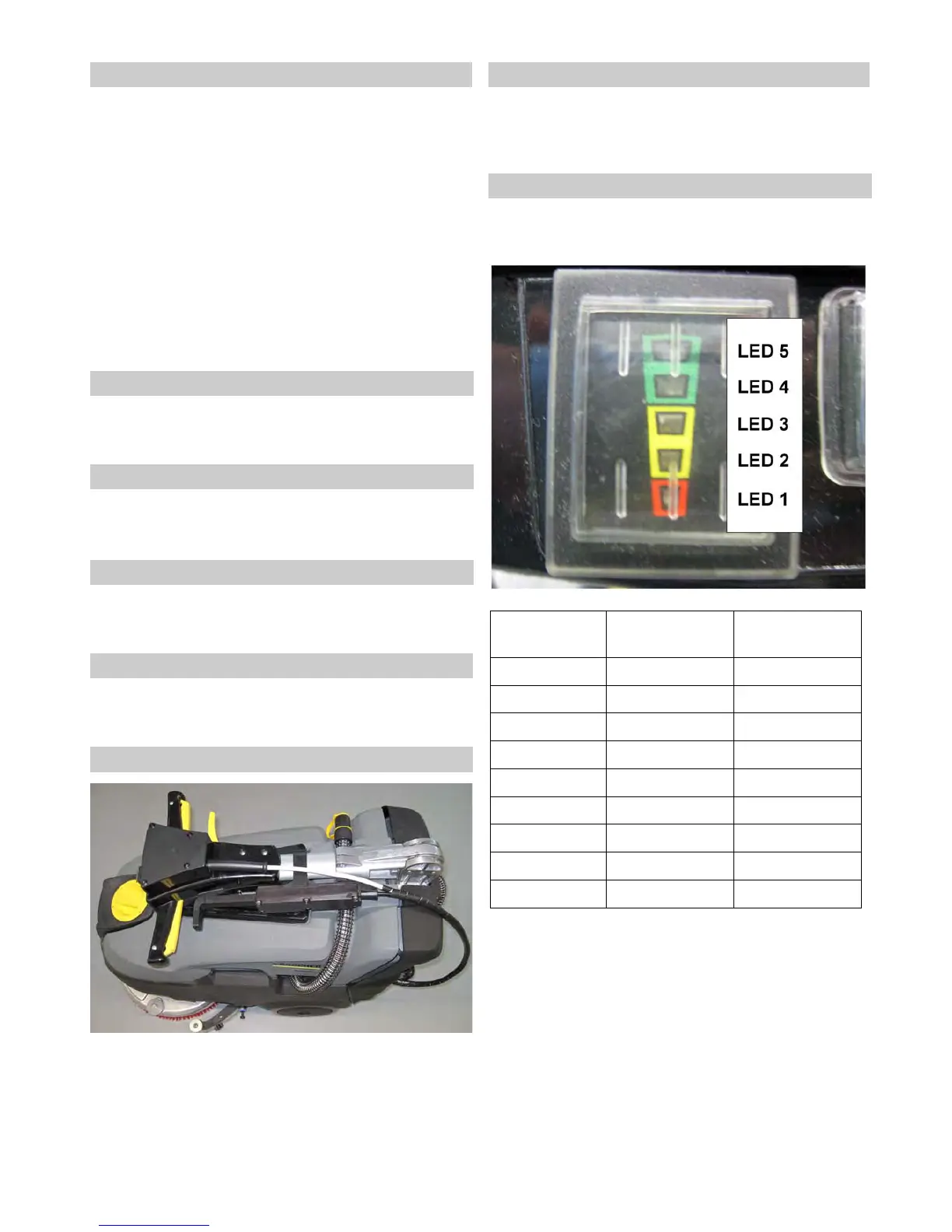

5.906-510.0 Rev. 00 (12/10) 5
– The vacuuming does not start automatically when
the suction bar is lowered.
– To start the vacuuming, the brush head and the
vacuuming must be switched on on the control
panel.
– To unlock, pull the lever all the way to the top and
then slide it back down.
– The vacuuming does not stop automatically when
the suction bar is raised.
– The vacuum bar can be adjusted in horizontal po-
sition and tilted without tools.
– The vacuum lips can be replaced without the use
of tools.
– Brush replacement is possible without tools.
– The water volume can be regulated via the stop-
cock.
– 2x 12V 25 Ah maintenance-free.
– Battery monitoring with total discharge protection.
– Turbine trailing time 2 seconds
– Overvoltage shut-off: Turbine 20.8 V
– Overvoltage shut-off: Brush motor 21.0 V
– Overload shut-off at > 20a ± 1A
– The holm can be swivelled from the vertical posi-
tion by about 90° in both directions.
– With max. wastewater volume, the floater in the
wastewater reservoir closes so that no further suc-
tion is possible.
– Actuate the brush switch with the operating lever
pressed down to switch to the hourmeter display.
– After the operating hours are displayed, the ma-
chine will automatically switch to ready mode.
3.3 Suction system
3.4 Cleaning operations
3.5 Battery
3.6 Turbine
3.7 Brush motor
3.8 Adjusting the holm tilt
3.9 Swimmer function
3.10 Operating hours display [h]
Number of
blinks
Operating hours
LED 1 blinks 1x
LED 5 1-9 1-9
LED 1 blinks 1x
LED 4 1-9 10-90
LED 1 blinks 1x
LED 3 1-9 100-900
LED 1 blinks 1x
LED 2 1-9 1000-9000
LED 1 blinks 1x
