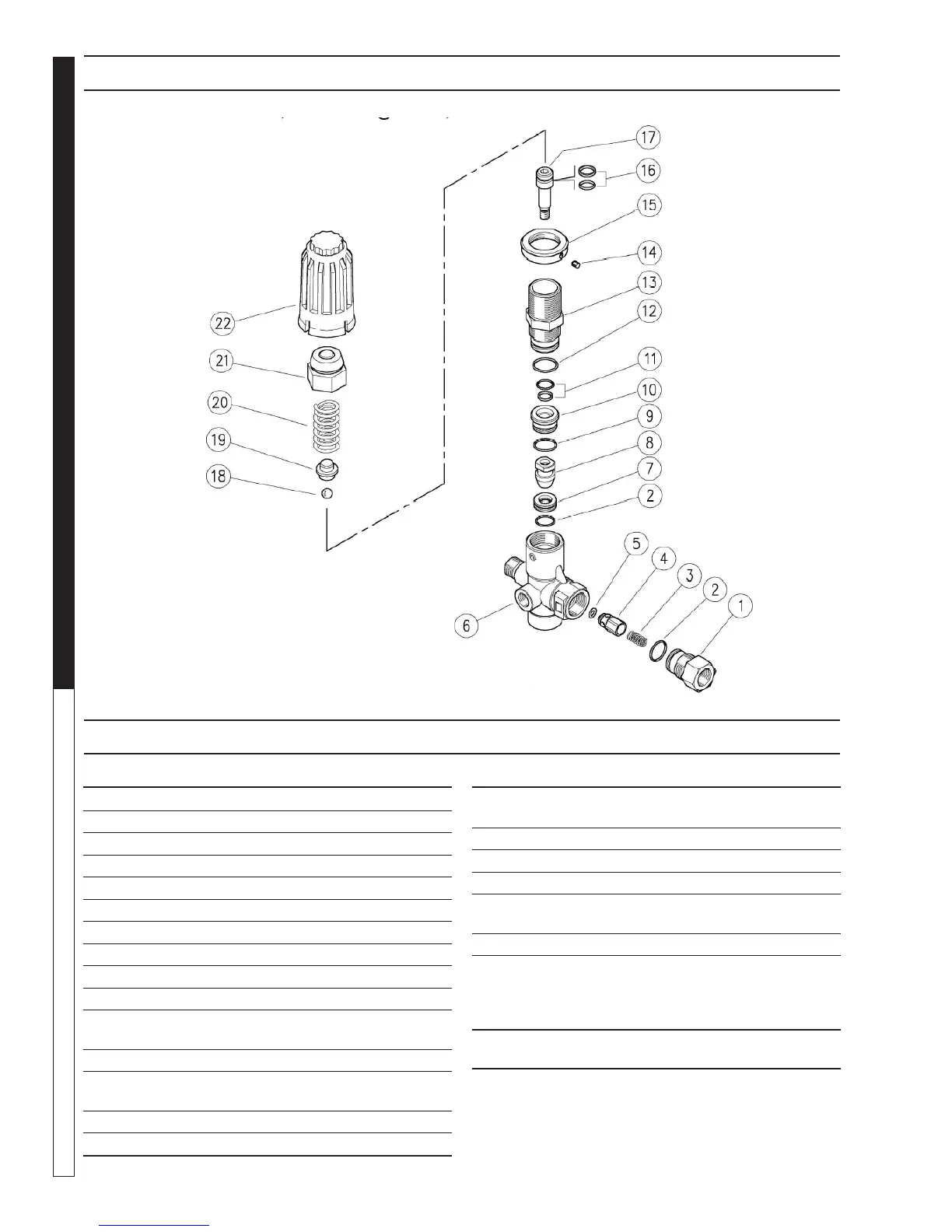

VB350/4 UNLOADER EXPLODED VIEW
ITEM PART # DESCRIPTION QTY
1 60.1811.31 3/8 Bsp F Nipple 1
2 10.3066.01* O-Ring, 1.78 x 15.6 mm 2
3 60.0053.51 Spring 1
4 60.0052.51 Sst Check Valve 1
5 10.3213.08* O-Ring, 3 x 6mm 1
6 60.1725.35 VB280-350 Brass Body 1
7 60.1809.51* Seat 1
8 60.1808.51* M 8 Shutter 1
9 10.3068.01* O-Ring, 1.78 x 17.17 mm 1
10 60.1810.31 Spacer 1
11 60.0979.24* VB280-350 Val. Pist. Seal
Repair Set 1
12 10.3072.01* O-Ring, 1.78 x 20.35 mm 1
13 60.0973.31 Piston Housing (60.1600.00) 1
60.1805.31 Piston Housing (60.1700.00) 1
14 16.2100.00 M 4 x 4 mm Dowel 1
15 60.1728.31 Lock Nut 1
ITEM PART # DESCRIPTION QTY
16 60.0978.24* VB280-350 Val. Pist. Seal
Repair Set 1
17 60.1806.51 M8 Piston 1
18 14.7443.10* Sst 11/32" Ball 1
19 60.1813.31 Spring Guide 1
20 60.0975.61 4.2 mm Spring (60.1600.00) 1
60-1812.61 4.5 x 47 mm Spring (60.1700.00) 1
21 60.1727.31 Brass Cap 1
22 60.1726.84 VB280 Black Plastic Knob
(60.1600.00) 1
60.1729.84 VB350.4 Red Plastic Knob
(60.1700.00) 1
*Kit :
K1 60.1615.24 VB280-350.4 Spare Parts Kit
Pcs. 11 x 1
9.802-360.0, 10.5 GPM at 5100 PSI
VB UNLOADER EXPLODED VIEW PARTS LIST
