Kärcher DS 5200 User Manual

7
English
Brief instructions
Before first use
When unpacking the appliance, make sure that
all listed parts are supplied. The swivel casters
(6) must be mounted on the unit after delivery.
Please inform your dealer if there has been any
damage during transportation.

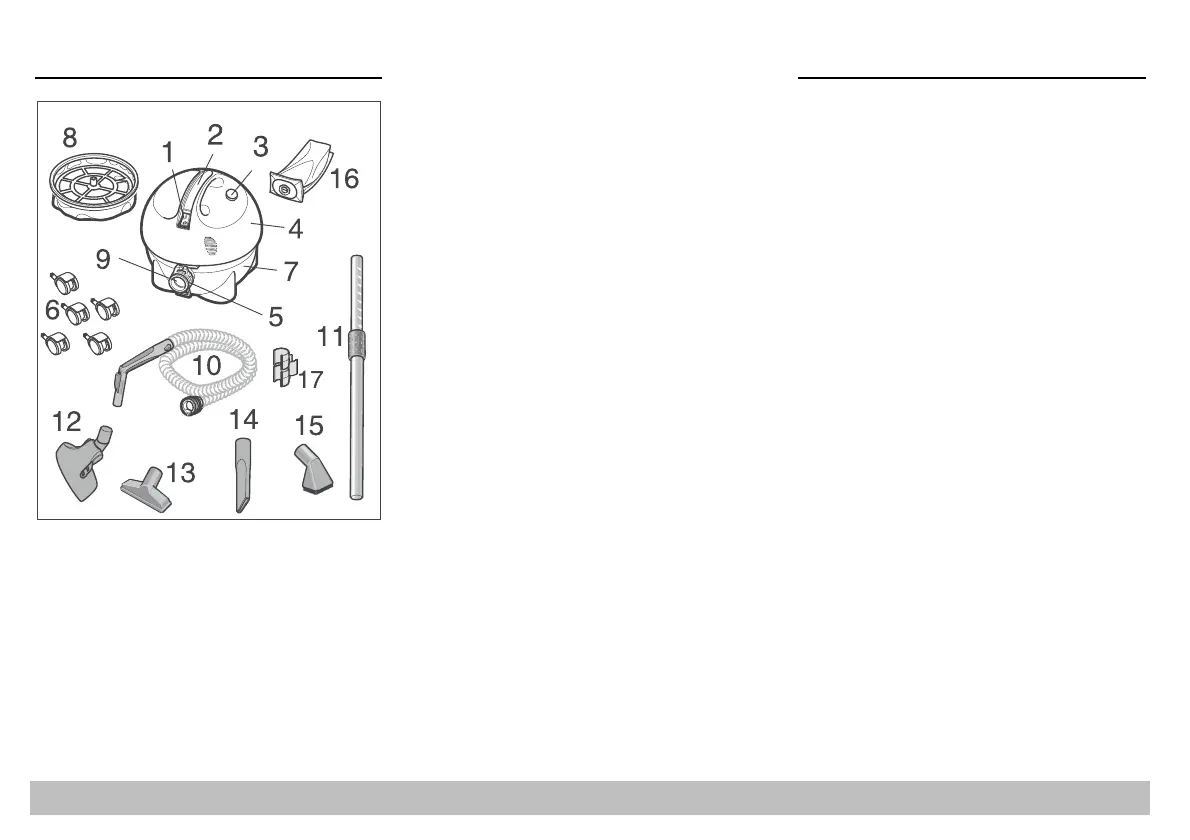

1ON/OFF Switch
2 Carry handle
For carrying the appliance on stairs, etc.
3 Cable take-up button
Press to wind in the connection cable
4 Motor housing
5 Locking device for container
Suction hose and container are locked
simultaneously
6 Swivel casters
Make it easy to draw the appliance along
behind
7 Dirt container
Collects the vacuumed dry dirt
8 Filter basket
Filters out suspended, protecting the turbine
9 Suction hose connection
10 Suction hose
11 Telescopic suction tube
Infinitely variable length adjustment for
ergonomic handling
12 Floor nozzle
Can be switched over to clean carpets or hard
surfaces
13 Upholstery nozzle
For cleaning upholstery, etc.
14 Crevice nozzle
For edges, crevices and around radiators
15 Fine nozzle
For gentle cleaning of furniture and dusting
books
16 Paper filter bag
For dust-free emptying
17 Accessory compartment
For fine nozzle and upholstery nozzle
Safety notes
Before first use of the machine read these
operating instructions and comply with them.
Keep these operating instructions in a safe place
for later use or for a subsequent owner.
Appropriate use
Use the appliance exclusively
– for non-commercial purposes,
– with accessories and replacement parts
authorized by Kärcher.
The appliance is intended for use as a dry
vacuum cleaner in accordance with the
descriptions and safety instructions in these
operating instructions.
The appliance is not suitable for vacuuming
liquids.
General safety notes
The appliance is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure
that they do not play with the appliance.
Never leave the machine unattended if the
master switch is on.
Electrical connection
The voltage shown on the model plate must
concur with that of the electricity mains supply.
 Danger of electric shock!
Never grasp the mains plug with wet hands.
Check the connection lead and mains plug for
damage before each use. Have a damaged
connection lead replaced immediately by an

Kärcher DS 5200 Specifications

General

Brand	Kärcher
Model	DS 5200
Category	Vacuum Cleaner
Language	English
