Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . .3
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . .4
Using the Accessories . . . . . . . . . . . . . . . . . . . . . . . .5
Working with Detergents . . . . . . . . . . . . . . . . . . . . . . .6
Shut Down and Clean-Up . . . . . . . . . . . . . . . . . . . . . .7
Taking a Break . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Winterizing and Long-Term Storage . . . . . . . . . . . . . .7
Cleaning Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Optional Cleaning Accessories . . . . . . . . . . . . . . . . . .9
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .10-11
Model K 330 M Part No. 1.994-916.0

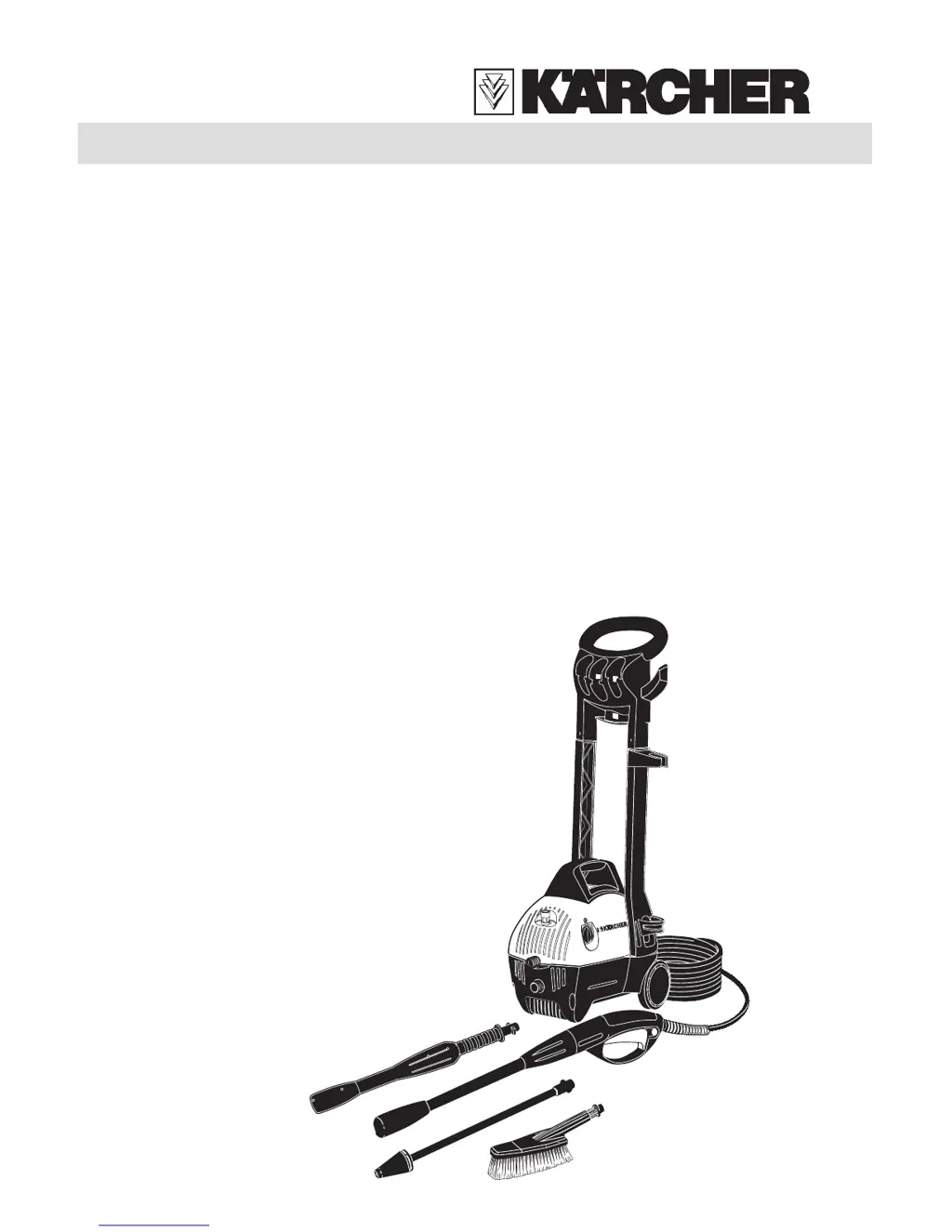

High Pressure Washer Operator Manual
Specifications
Operating pressure 1300 PSI
Water volume 1.7 GPM
Voltage 120 V
Amp draw 14 AMPS

Questions and Answers

  • D
    Dawn KlineAug 15, 2025
    How to fix Kärcher K 330 M not reaching high pressure?
    • S
      Shannon ScottAug 15, 2025
      If your Kärcher Pressure Washer isn't reaching high pressure, several things could be wrong. Make sure you're using a 3/4 inch garden hose. Check the hose for any kinks, leaks, or blockages that might be restricting the water supply. Ensure the water source is fully open. Also, the water inlet filter might be clogged, so remove it and rinse it in warm water. Finally, check that the spray wand is in the high-pressure position.
  • T
    travis29Aug 18, 2025
    How to fix Kärcher K 330 M motor that will not start?
    • D
      Diana Powell DVMAug 18, 2025
      If your Kärcher Pressure Washer motor won't start, first ensure the On/Off switch is in the “ON” (I) position. Check that the power cord is properly plugged in. If you are using an extension cord, make sure it is not too long, is of the proper gauge (a 25 ft. 12/2 gauge cord or a 50 ft. 10/2 gauge cord), and is not damaged. Try a different electrical outlet to rule out inadequate power supply. Finally, reset the circuit breaker or ground fault circuit interrupter.
  • A
    Adam BowenAug 21, 2025
    Why is my Kärcher K 330 M not reaching high pressure?
    • J
      Jessica CaldwellAug 21, 2025
      If your Kärcher Pressure Washer isn't reaching high pressure, start by replacing your current garden hose with a 3/4 inch garden hose. Inspect your garden hose for any kinks, leaks, or blockages that may be restricting the water supply. Ensure you are opening the water source to its full capacity. Clean the water inlet filter by removing it and rinsing it in warm water. Lastly, make sure the spray wand is set to the high-pressure position.
  • H
    Harold BlankenshipAug 25, 2025
    What to do if Kärcher Pressure Washer output pressure varies high and low?
    • E
      Elizabeth NixonAug 25, 2025
      To resolve fluctuating output pressure in your Kärcher Pressure Washer, begin by ensuring the water is turned on fully and inspect the garden hose for kinks, leaks, or blockages. Check that all hoses and fittings are airtight. Turn off the machine and purge the pump by squeezing the trigger gun until a steady flow of water emerges through the nozzle. Clean the water inlet filter by removing and rinsing it in warm water. Clear any obstructions from the discharge nozzle using a fine needle. If the gun, hose, or spray wand is calcified, run distilled vinegar through the detergent suction tube.
  • O
    obyrdAug 27, 2025
    Why is my Kärcher Pressure Washer not dispensing detergent?
    • J
      Jennifer BowmanAug 27, 2025
      If your Kärcher Pressure Washer isn't dispensing detergent, check that the detergent suction tube is properly connected to the machine. If the detergent is too thick, dilute it, or use Kärcher detergent for optimal results. Clear any clogs in the filter on the detergent suction tube by running warm water through it. If the detergent suction tube is damaged or clogged, remove the obstruction or replace the tube. Ensure the spray wand is in the low-pressure position. Also, make sure the discharge nozzle is not obstructed; if it is, blow it out or remove debris with a fine needle.
  • M
    michaelcarrilloAug 30, 2025
    Why is the pump on my Kärcher Pressure Washer noisy?
    • W
      williamsangelaAug 30, 2025
      If your Kärcher Pressure Washer pump is making unusual noises, ensure that all hoses and fittings are airtight. Turn off the machine and purge the pump by squeezing the trigger gun until a steady flow of water emerges through the nozzle.
  • T
    Thomas ObrienSep 2, 2025
    How to fix a garden hose connection leak on my Kärcher K 330 M Pressure Washer?
    • M
      Maria HallSep 2, 2025
      If your Kärcher Pressure Washer's garden hose connection is leaking, try tightening the fittings first. If the leak persists, check for a missing or worn rubber washer and insert a new one.
  • S
    Samuel ReyesSep 5, 2025
    How to fix Kärcher Pressure Washer spray wand leaking?
    • A
      Aaron LewisSep 5, 2025
      If your Kärcher Pressure Washer spray wand or spray wand extension is leaking, ensure the spray wand is correctly inserted into the spray wand extension, pressing against the spring tension and twisting it into the locked position. Also, verify that the spray wand extension is properly attached by sliding it into the gun and turning the wand collar clockwise onto the gun threads until tight.
  • L
    Larry HaasSep 8, 2025
    Why won't my Kärcher K 330 M Pressure Washer motor start?
    • X
      xbonillaSep 8, 2025
      If your Kärcher Pressure Washer motor won't start, several factors could be the cause. First, ensure the On/Off switch is in the “ON” (I) position. Check that the power cord is properly plugged in. If you're using an extension cord, make sure it's not too long, is the proper gauge (25 ft. 12/2 gauge or 50 ft. 10/2 gauge), and is not damaged. Try a different electrical outlet to rule out power supply issues. Lastly, check if the circuit breaker has tripped and reset it if necessary.
  • U
    ucunninghamSep 12, 2025
    What to do if Kärcher K 330 M Pressure Washer output pressure varies?
    • J
      Jermaine PhillipsSep 12, 2025
      If the output pressure of your Kärcher Pressure Washer is fluctuating, here's what to check: ensure you have enough inlet water supply by turning the water on full force and inspecting the garden hose for kinks, leaks, or blockages. It's possible the pump is sucking air; check that hoses and fittings are airtight and purge the pump by squeezing the trigger gun until a steady water flow emerges from the nozzle. Also, the water inlet filter could be clogged, so remove it and rinse it in warm water. An obstructed discharge nozzle can also cause pressure variations; clear any debris with a fine needle. Lastly, a calcified gun, hose, or spray wand may be the culprit; run distilled vinegar through the detergent suction tube.

Summary

Precautions

Ground Fault Circuit Interrupter Protection

Requirement for GFCI protection to prevent electrocution risk.

Double Insulated Product

Explanation of double insulation and servicing requirements.

Assembly Instructions

Operating Instructions

Using the Accessories

Working with Detergents

Shut Down and Clean-Up

Cleaning Tips

Troubleshooting

Motor Will Not Start

Common causes and solutions when the pressure washer motor fails to start.

Unit Does Not Reach High Pressure

Troubleshooting low pressure issues with water supply and hose.

Output Pressure Varies High and Low

Diagnosing inconsistent pressure due to air in pump or blockages.

No Detergent

Solutions for when the pressure washer fails to draw detergent.

Kärcher K 330 M Specifications

General IconGeneral
Max Pressure120 bar
Pressure20-120 bar
Flow Rate360 l/h
Power Cable Length5 m
Max. inlet temperature40 °C
Voltage230 V
Frequency50 Hz
Power1.6 kW
