Operating instructions KM 100/100 R D English
24

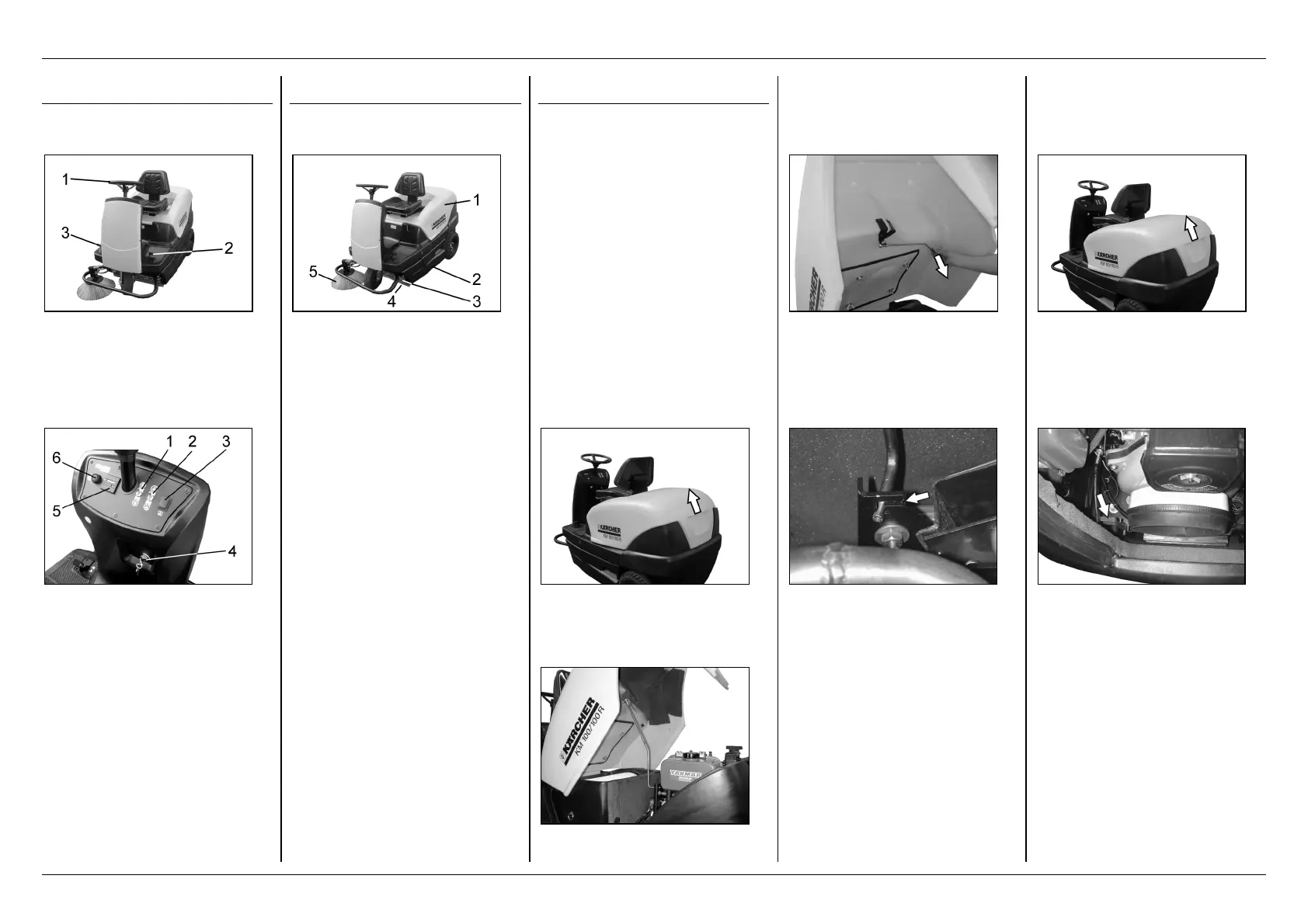

Control elements
1. Steering wheel
2. Raising/lowering coarse-dirt flap
pedal
3. Forward driving/reversing drive
pedal
1. Raising/lowering main brush
2. Raise/lower side brush
3. Filter de-duster
4. Ignition switch
5. Elapsed-time meter
6. Horn
Machine parts
1. Unit cover
2. Debris container (bilateral)
3. Coarse-dirt flap
4. Roller
5. Side brush
Before first operating
The sweeper is provided with a
hydrostatic drive. Therefore, when
the freewheel lever is engaged in its
top position it is only possible to
push the machine.
Open/close unit cover
Open unit cover
! Lift unit cover up at the provided
handle grip
In its open position the unit cover is
secured by a stay bar.
! Pull stay bar out of the bracket
! Insert the stay bar into the
adapter at the suction turbine
! to close the unit cover pull the
stay bar out of its slot and
engage it in the bracket in the
unit cover
Moving road sweeping
machine with automotive
power
! Open unit cover, engage stay bar
! Snap freewheel lever in place in
the bottom position
— Drive system and parking brake
are active
