18 English

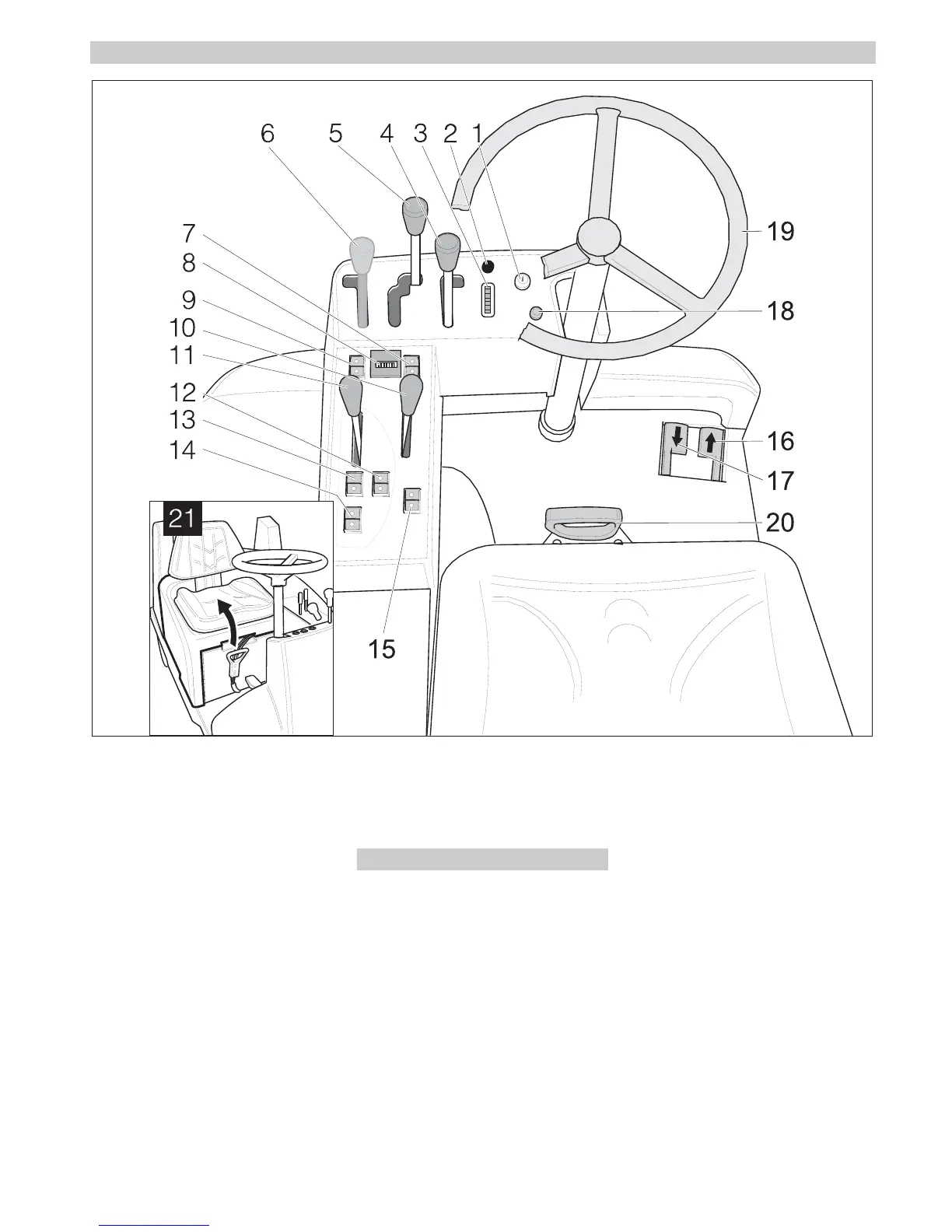

1 Key switch
2 Control lamp drive error
3 Battery charger control
4 Raise/lower side-brushes, right
5 Upper position: Raise roller brush
Central position: Lower roller brush (op-
erating mode "Fine setting")
Lower position: Lower roller brush (op-
erating mode "store in floating position")
6 Raise/lower side-brushes, left (Option)
7 Switch for two-hand operations
8 Operating hour counter
9Lights
10 Raise/lower bulk waste flap
11 Parking brake/ operating brake
12 Tilt waste container
(Function only in connection with the
two-hand operations switch)
13 Raise waste container
(Function only in connection with the
two-hand operations switch)
14 Lower waste container
(Function only in connection with the
two-hand operations switch)
15 Blower
16 Accelerator pedal, forwards
17 Accelerator pedal, reverse
18 Horn
19 Steering wheel
20 Battery socket
21 Open/ close device hood
Î Tilt the seat towards the front.
Î Open the device hood at the handle slot
(pull it upward).
Note
The device hood is held at the top by the
gas pressure spring.
Operator console
Open/ close device hood
