English 23
Enlarging sweeping track:
Î Turn the adjustment screw in an anti-
clockwise direction (+).
Reducing sweeping track:
Î Turn the adjustment screw in a clock-
wise direction (-).
Note
Replace damaged or worn out sealing
strips immediately.
Î Park the sweeper on an even surface.
Î Raise roller brush.
Î Turn main key to "0" and remove it.
Î Secure the machine with wheel
chock(s) to prevent it from rolling away.
Î Lock parking brake.
Front sealing strip
Î Unscrew fasteners of sealing strip.
Î Remove the sealing strip.
Î Screw on new sealing strip.
Note
The front sealing strip cannot be adjusted.

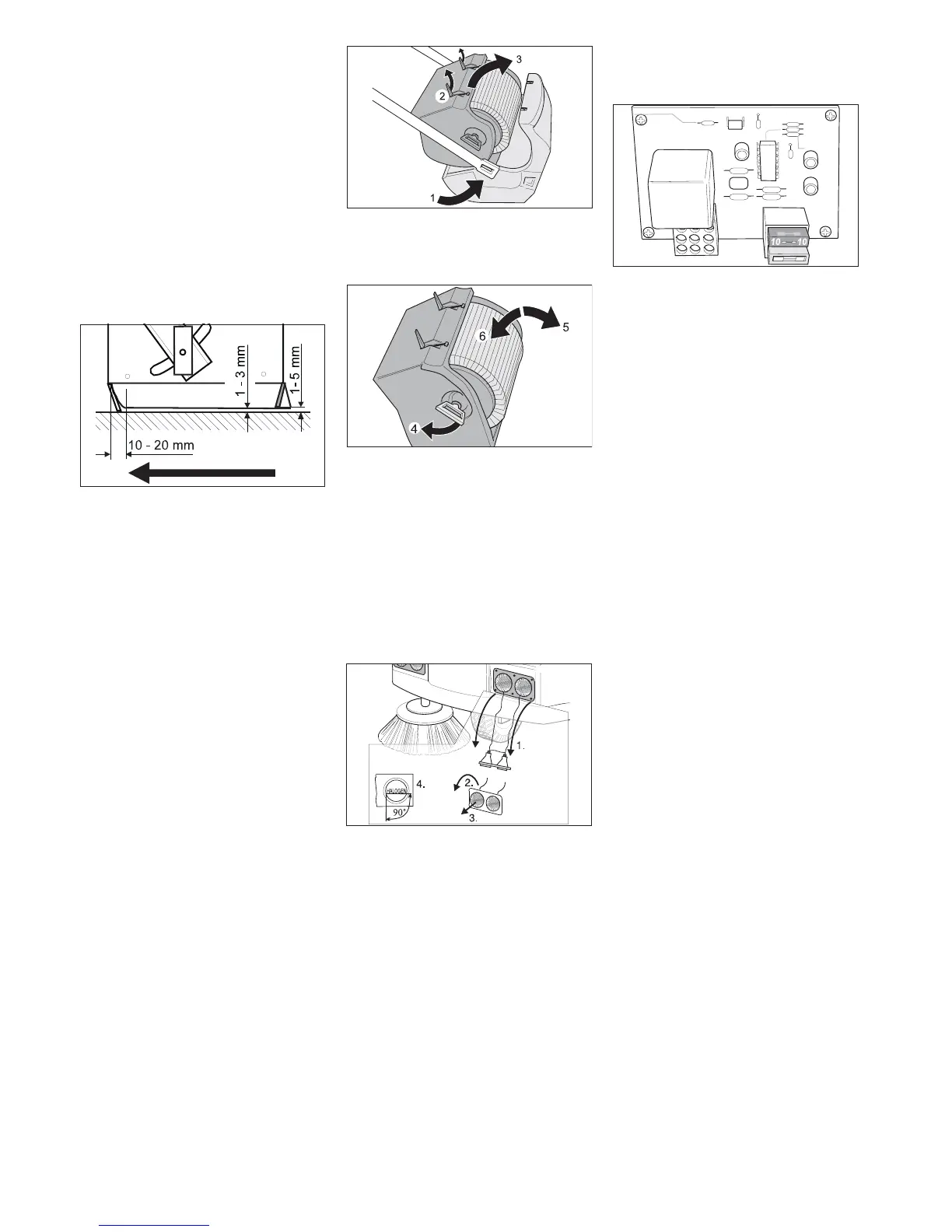

Rear sealing strip
Î Unscrew fasteners of sealing strip.
Î Remove the sealing strip.
Î Screw on the new sealing strip.
Î Adjust sealing strip.
Î Set the ground clearance of the sealing
strip to 1-5 mm.
Î Screw on new sealing strip.
Side sealing strips
Î Unscrew the fasteners of the sealing
strips.
Î Remove sealing strips.
Î Insert new sealing strips.
Î Adjust sealing strips.
Î Set the ground clearance of the sealing
strip to 1-3 mm.
Î Screw on new sealing strips.
Danger
Empty waste container before replacing
dust filter. Wear a dust mask when working
around the dust filter. Observe safety regu-
lations on the handling of fine particulate
material.
Note
A clear deposit of dust at the air exit of the
blower is an indicator that the dust filter has
not been inserted correctly or is defective.
Î Raise waste container up to the half (1).
Î Open catches (2).
Î Tilt the filter box towards the front and
remove it (3).
Î Fold up the handle (4), pull it out and
turn it by 90° (lock).
Î Remove filter cartridge (5).
Î Insert new filter cartridge; bolts must
have been inserted into the holes (6).
Î Reset handle in the starting position and
lock it. Check correct position of the fil-
ter.
Î Insert filter box and lock it.
Î Stop the machine.
Î Turn main key to "0" and remove it.
Î Loosen the fasteners of the columns.
Î Remove column (1).
Î Loosen the screw between the struts of
the lamp holder of the defective head-
lights.
Î Turn the diffusing lens of the defective
headlamp in the anti-clockwise direction
by approx. 1/4 rotation (2) and take out
the reflector housing (3).
Î Take out the bulb.
Î Insert new bulb.
Î Insert the reflector housing from the bot-
tom into the column and fasten it by
turning approx. 1/4 rotation in the clock-
wise direction. Ensure that it has locked
in properly; the letters HALOGEN must
be clearly legible on the headlights
glass in a horizontal manner (4).
Î Turn in the screw between the struts of
the lamp holder.
Î Fasten the column.
Note
Only use fuses with identical safety ratings.
Î Open the device hood.
Î Pull out the battery plug.
Î Replace defective fuses.
Note
Multiple defect of the same fuse indicates a
technical defect in the electrical system. In-
form Kärcher Customer Service.
Adjusting and replacing sealing strips
Replacing dust filter
Replacing electric bulb
Replacing fuses
