Kärcher OC 3 Operator's Manual

8English

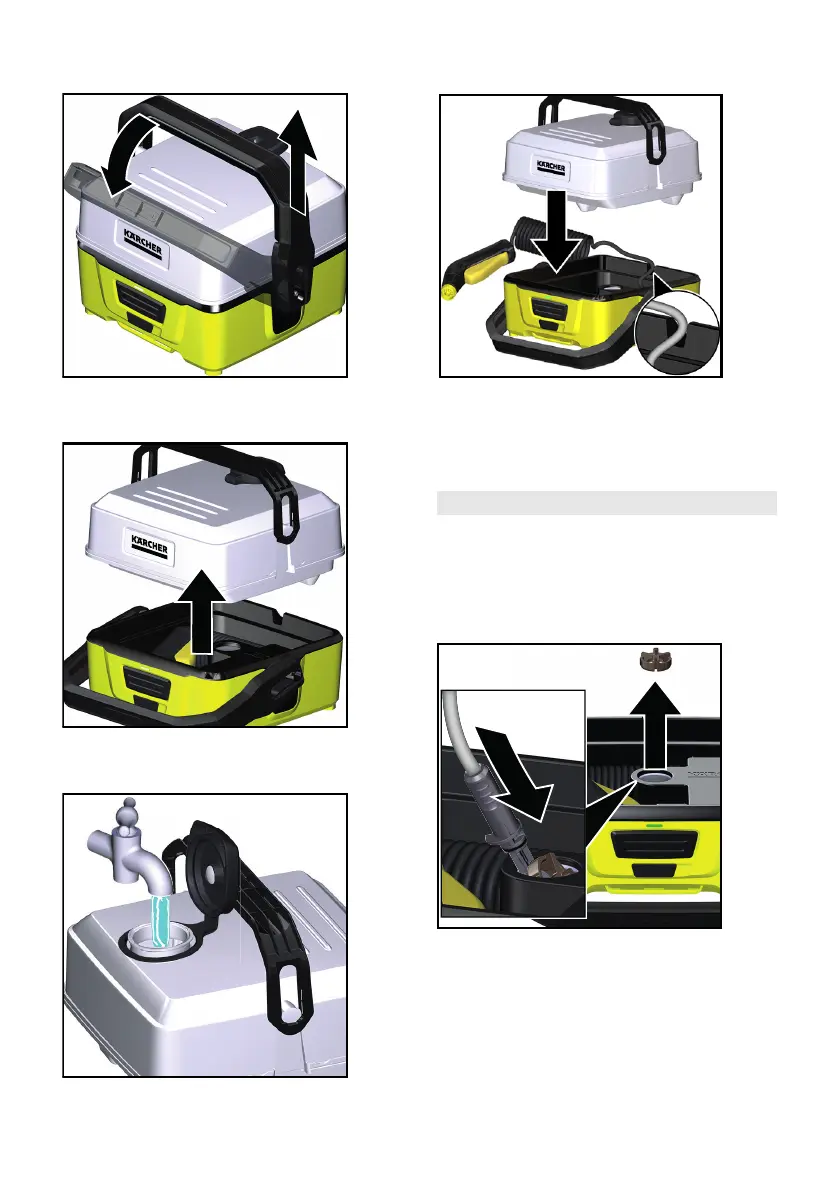

1. Swing the carrying handle of the de-
vice to the side.
2. Pull the water reservoir vertically in
an upward direction.
3. Open the water reservoir cap and f
ill
the water reservoir.
4. Place the water reservoir onto the
device.
Note
Make sure that the low-pressure hose
is in the recess and is not pinched.
Suck water from open containers
1. Pull the water reservoir vertically in
an upward direction.
2. Remove the valve opener using the
suction hose connection or suitable
pliers.
3. Plug the suction hose connection
onto the fine filter.
b
a
a
b

Kärcher OC 3 Specifications

General

Form factor	Compact
Hose length	2.8 m
Power source	Battery
Water filter	Yes
Cleaning type	Dry
Product color	Black, Yellow
Tank capacity	4 L
Detergent tank	-
Pressure range	Low-pressure
Protection class	III
International Protection (IP) code	IPX4
Battery life	15 min
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Battery recharge time	3 h
Uncertainty K	3 dB
Maximum flow rate	120 l/h
Sound power level	84 dB
Sound pressure level	69 dB
Working pressure (max)	- bar
Maximum water temperature	40 °C
Wash brush	No
Package weight	2900 g

Weight and Dimensions

Depth	277 mm
Width	234 mm
Height	201 mm
Weight	2200 g
