Kärcher OC 3 User Manual

– 4
These operating instructions describe the maximum equipment. Depending on the model, there are differences in the
scopes of delivery (see packaging).

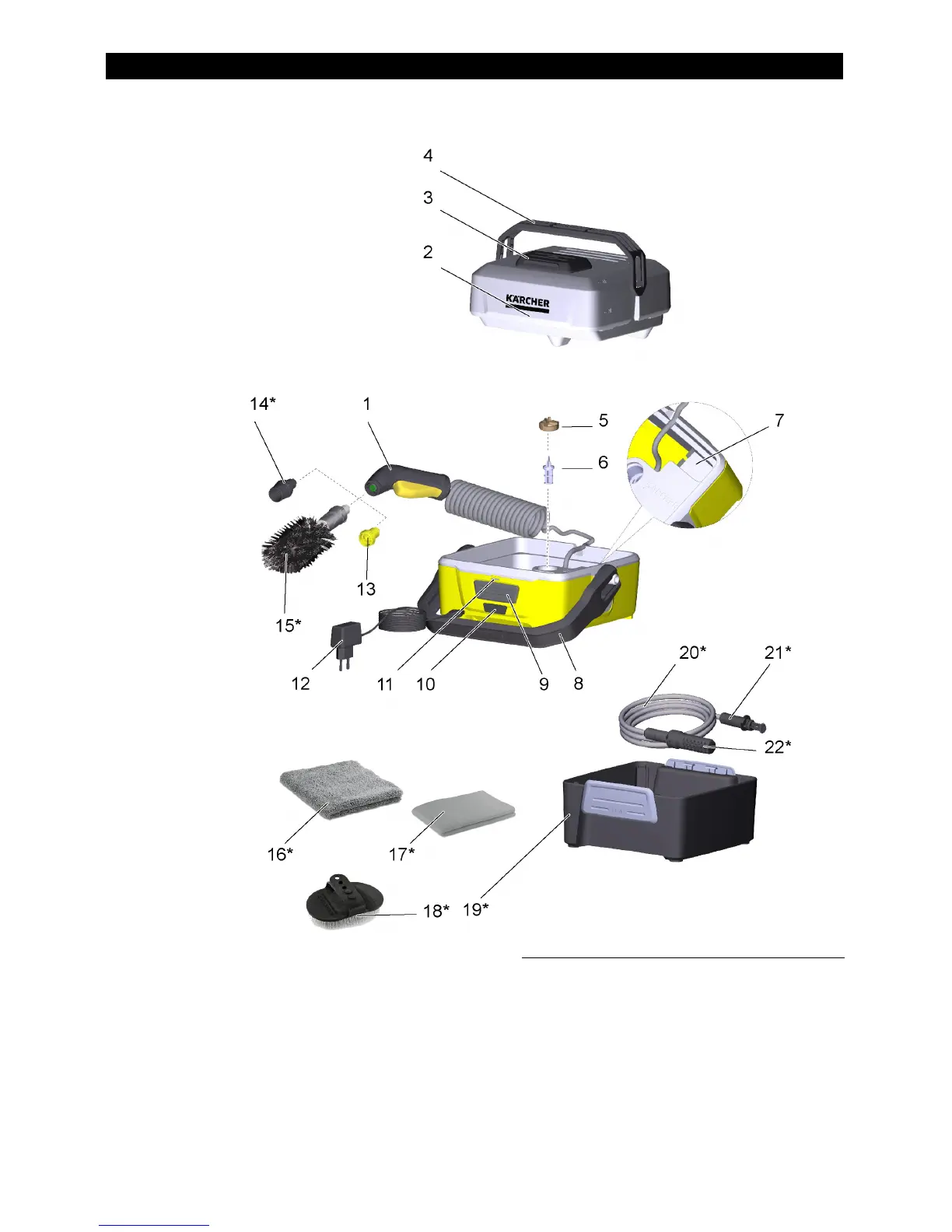

1 Trigger gun
2 Water reservoir
3 Water reservoir cover
4 Carry handle for water reservoir
5Valve
6 Fine filter
7 Storage compartment for small parts
8 Carrying handle of the appliance
9 Power switch
10 Charging box
11 Battery charge indicator
12 Charger
13 Flat jet nozzle
* Optional accessories
14 Conical jet nozzle - for gentle cleaning
15 Universal brush
16 Micro fibre cloth
17 Viscous cloth
18 Fur cleaning brush
19 Accessories box
20 Suction hose
21 Suction hose connection
22 Water filter
Description of the Appliance
6 EN

Kärcher OC 3 Specifications

General

Form factor	Compact
Hose length	2.8 m
Power source	Battery
Water filter	Yes
Cleaning type	Dry
Product color	Black, Yellow
Tank capacity	4 L
Detergent tank	-
Pressure range	Low-pressure
Protection class	III
International Protection (IP) code	IPX4
Battery life	15 min
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Battery recharge time	3 h
Uncertainty K	3 dB
Maximum flow rate	120 l/h
Sound power level	84 dB
Sound pressure level	69 dB
Working pressure (max)	- bar
Maximum water temperature	40 °C
Wash brush	No
Package weight	2900 g

Weight and Dimensions

Depth	277 mm
Width	234 mm
Height	201 mm
Weight	2200 g
