4

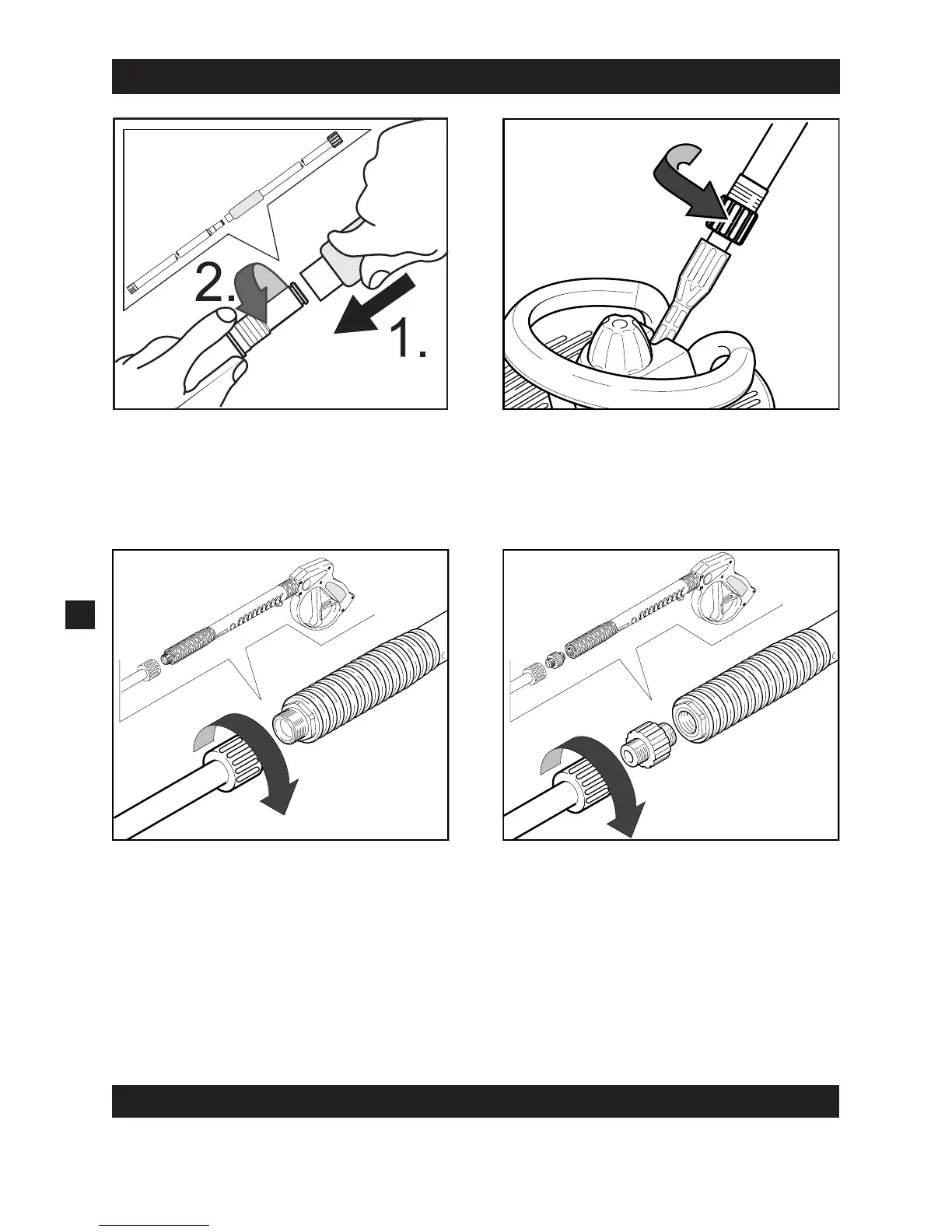

ASSEMBLY INSTRUCTIONS
Step 1
• Insert upper handle into the lower
handle by twisting together.
Step 2
• Insert lower handle into main
housing.
• Turn collar clockwise until tight.
Step 3
For Kärcher with male screw-on
trigger gun.
• Insert male screw-on trigger gun
into upper handle.
• Turn collar clockwise until tight.
Step 3
For female screw-on trigger gun.
• Screw adaptor on female screw-
on trigger gun.
• Insert trigger gun with adaptor into
upper handle.
• Turn collar clockwise until tight.
Cleaning vertical surfaces
• Connect the T-Racer directly with the trigger gun.
