● When you parked the chair using the foldable brake (option), and are going
to swing-away the footrest, do pull and fold the plastic brake lever before
you do it. (See Figure 22,23,24)

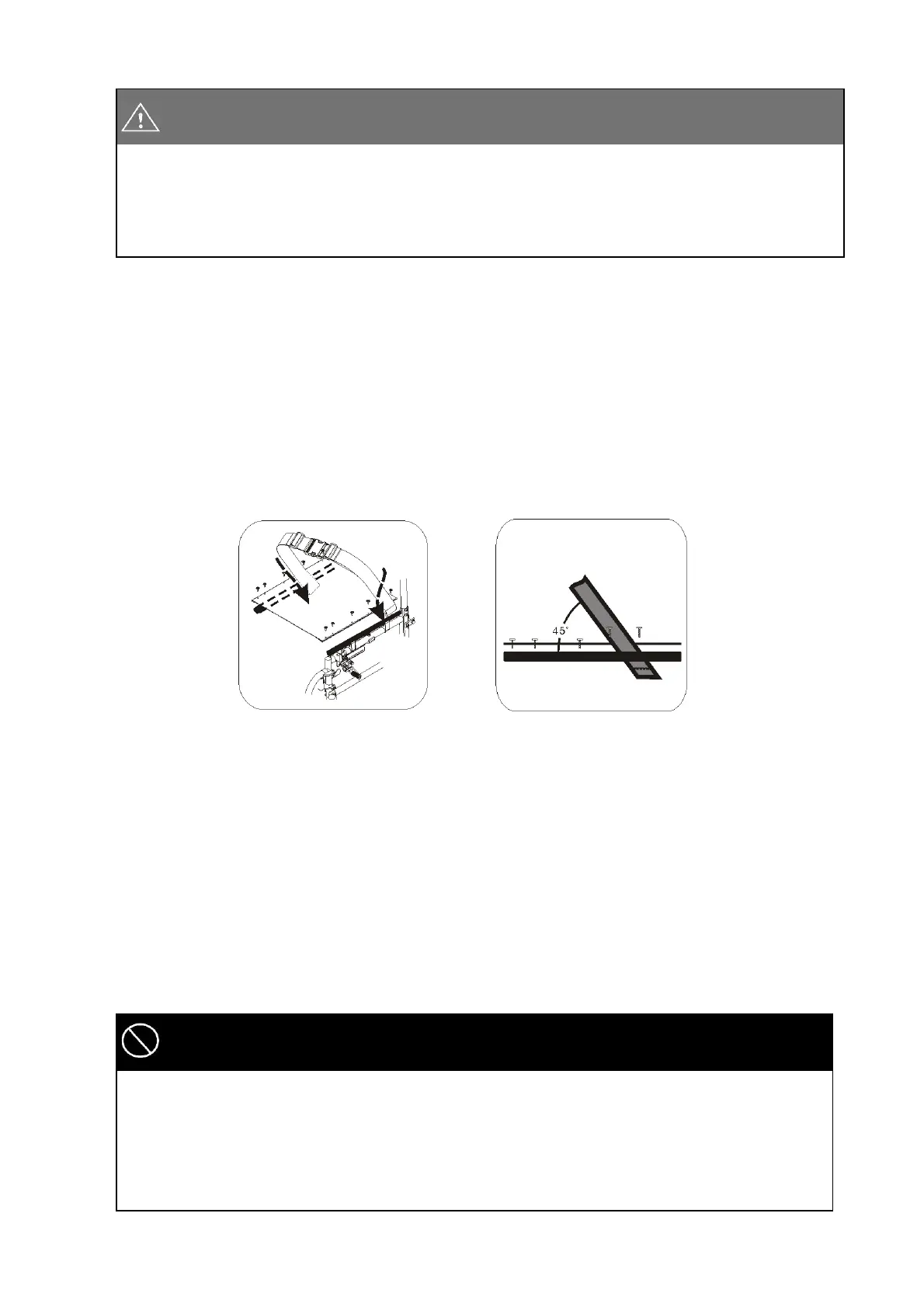

4.2 Pelvic Belt (Option)
4.2.1 How to Assemble and Disassemble the Pelvic Belt
4.2.1.1 Loosen the fourth and fifth screws of both side of seat upholstery and
insert the pelvic belt in between the fourth and fifth screw holes. (Figure
4.25)
4.2.1.2 Keep the pelvic belt in 45 degrees for comfortable usage. (Figure 4.27)
4.2.1.3 Put the seat upholstery back and tighten screws.
4.2.2 Adjust the Length of Pelvic Belt
4.2.2.1 Identify the require length of the belt. (Figure 4.27)
4.2.2.2 Push the two part of belt through buckle to make the belt longer or shorter.
(Figure 4.28)
4.2.2.3 Pull the two part of belt tight. (Figure 4.29)
4.2.2.4 Push the buckle up to the plastic clip so that the belt cannot slip out of
position. Please check that there is no gap between the clip and buckle.
(Figure 4.30)
● We recommend that the belt is fitted quite tightly around the pelvis. Please
tighten until you can just get your fingers between user and seat belt. Please
check that the belt is fastened correctly as recommended. If this is not
possible, please consult your supplier.
