4. OPERATION
4.1 Preparing For Use

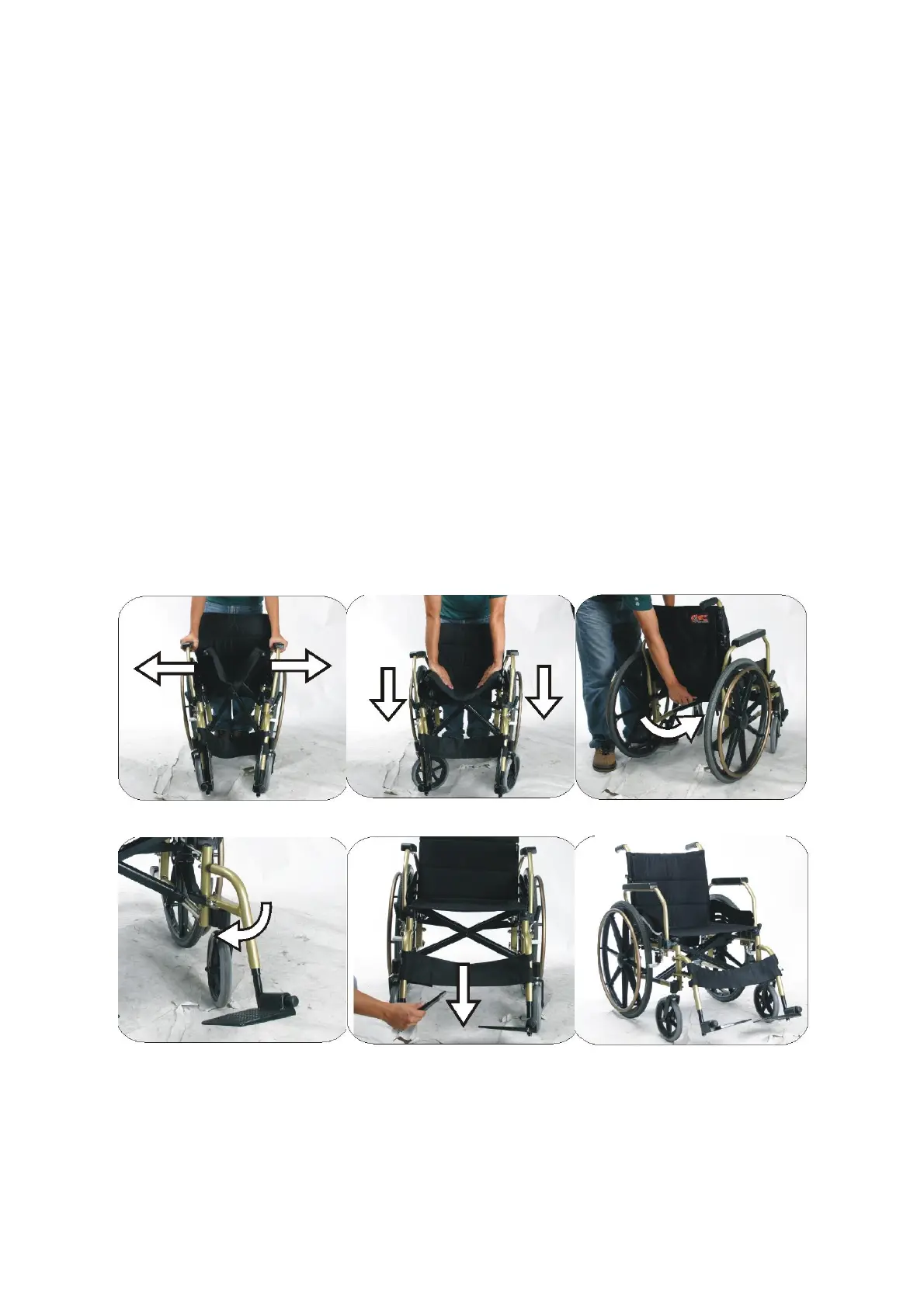

4.1.1 Unfolding
4.1.1.1 Holding the armrests, pull outwards. (See Figure 4.1)
4.1.1.2 Pointing your fingers inward with the palm of your hand on the frame, push
down until the seat is fully lowered. Make sure the frame is firmly seated in
its holder. (See Figure 4.2)
4.1.1.3 Connect the bottom of the backrest upholstery to the underside of the seat.
(See Figure 4.3)
4.1.1.4 Attach footrest and check it is locked. (See Figure 4.4)
4.1.1.5 Flip the footplates down. (See Figure 4.5)
4.1.1.6 Ready to use! (See Figure 4.6)
Alternatively, you can stand at the side of the wheelchair and complete step 1 by
pulling the nearest armrest towards yourself and pushing the other one away.
Figure 4.1
Figure 4.2
Figure 4.3
Figure 4.4
Figure 4.5
Figure 4.6
