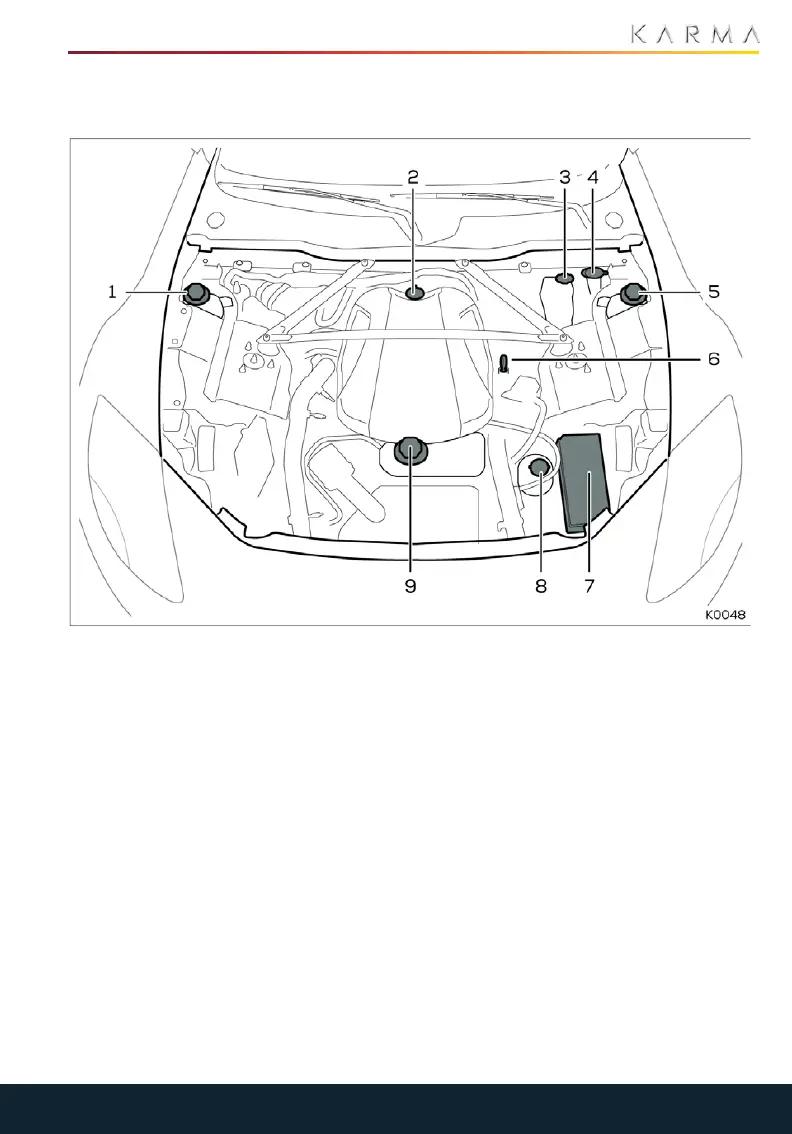

ENGINE COMPARTMENT
OVERVIEW
1. Coolant reservoir - electric drive
components
2. Engine oil filler cap
3. Brake fluid reservoir
4. Windshield washer reservoir
5. Coolant reservoir - engine
6. Engine oil level dipstick
7. Engine compartment fuse box
8. Power steering reservoir
9. Coolant reservoir - high-voltage
battery
