3

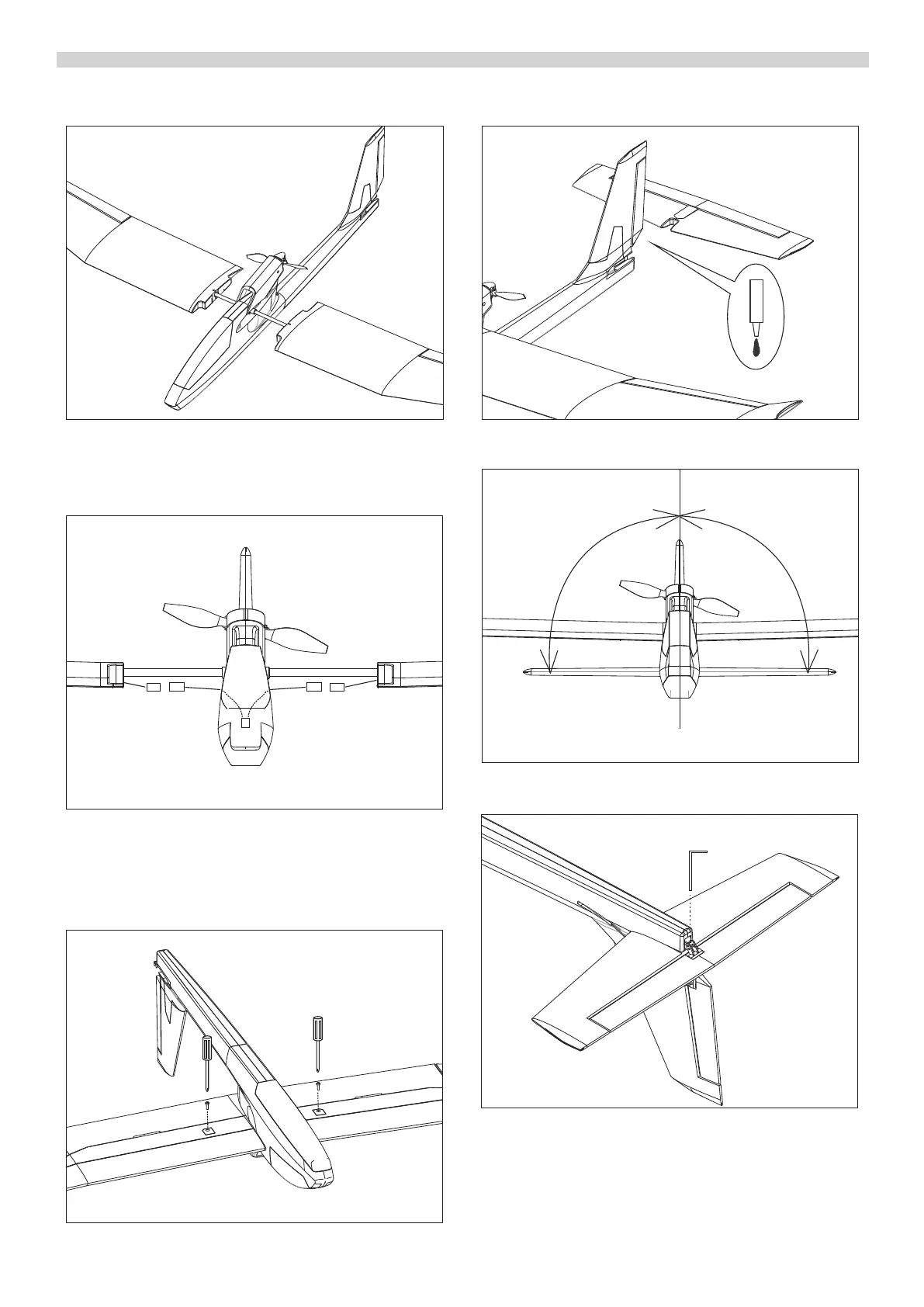

ASSEMBLY
Wing
1. Locate the carbon tube wing joiner, insert it into the housing in the fuse-
lage and slide both wing halves onto the joiner.
2. Connecting the aileron servos:
A. A radio featuring only one aileron channel (like the T8FB supplied
in the RTF set): Connect both two aileron servos to the Y-cable. The ai-
leron Y-cable is to be connected to the aileron channel of your receiver
(CH1 in the case of T8FB).
B: A radio featuring 2 independent aileron servo channels: Use two
20-30 ccm extension cables (not supplied in the kit) to connect aileron
servos to your receiver (typically, CH1 and CH5 or CH6 – it depends on
the transmitter and its setting – please refer to the instruction manual
of your radio).
3. Secure the wing halves by careful tightening the setting screws on the
bottom side of the wing.
Tail Feathers
1. Glue the horizontal tailplane into the fuselage using medium or thick cya-
no. Be sure the elevator horn is on the bottom side.
2. Before the glue sets, check the correct alignment of the horizontal tail-
plane - it has to be square to the n.
3. Insert the elevator push rod into the push rod connector in the elevator
horn.
90° 90°
