Name Quantity
A
Dust cover 4
B
Cable tie 2
C
Washer 17 x 48 x 3 2
D
Key electric lock 2
E
Phillips head screwdriver 1
F
Castle Nut M16 x 1.5 x 18 2
G
Castle Nut M10 2
H
Nut M8 8
Bolt M10x40x1.25
2
Nut M10x1.25 2
J
Screw TM6*16 2
K
Bolt M8 x 12 4
L
Speed key 2
M Bolt M8 x 20 2
Name Quantity
N
Bolt M8 x 16 2
ST4.0*8 2
ST4.2*12 3
P
Cotter pin 3*20 2
Q
Cotter pin 4*28 2
R
Cotter pin 2.5*24 2
S
Charger 1
T
User’s manual 1

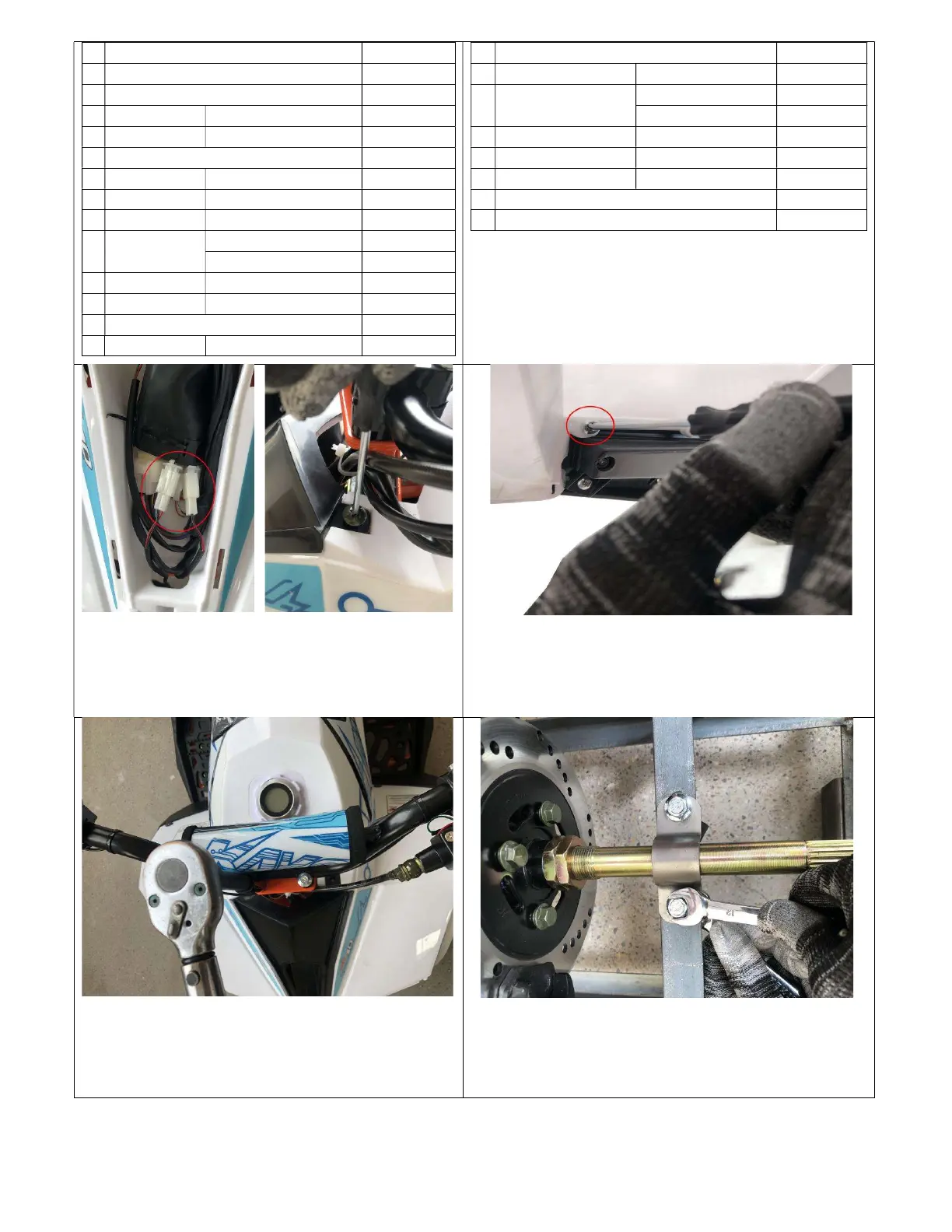

6.Remove the hood cover and connect plug for
headlight assembly. Route headlight harness
through lower hole, then install the hood cover
back. Secure hood with “J” hardware.
7.Install headlight assembly to the front fender.
(ST4.0*8 in the center, ST4.2*12 on the left and
right sides).
8. Install handlebars using risers with hex bolts
provided in hardware kit. Tighten by hand to get
threads started and prevent cross threading.
Tighten bolts evenly with a torque wrench
Note: Torque requirement 25-30N.m
9. Remove rear axle crate fixture with 12mm
wrench. Repeat process for other side.
To Next Page
