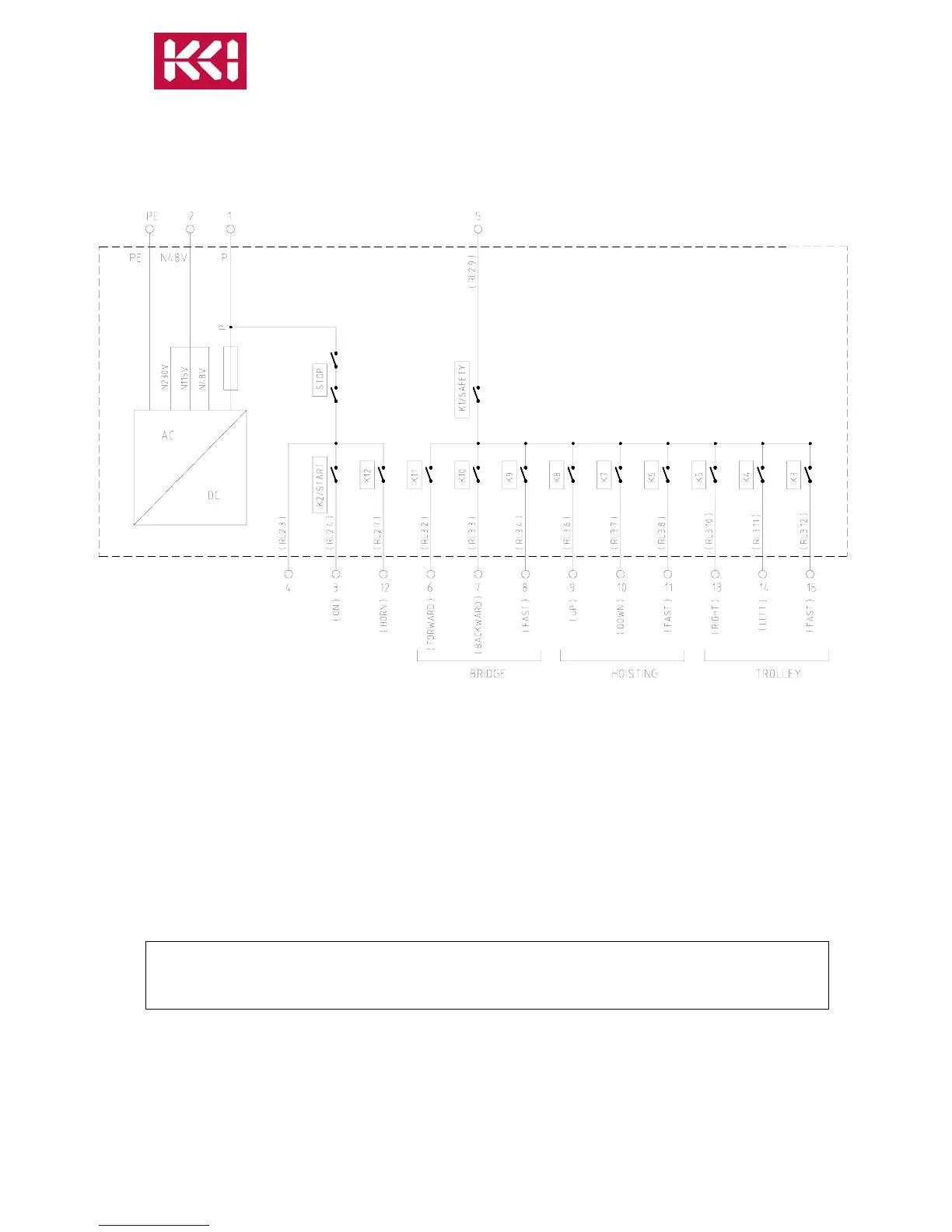

Figure 4 Connection diagram for RADS11
Remember to connect the ground cable.
Use only the approved cables.
Select the appropriate voltage on the receiver, (230, 115 or 48 Vac).
