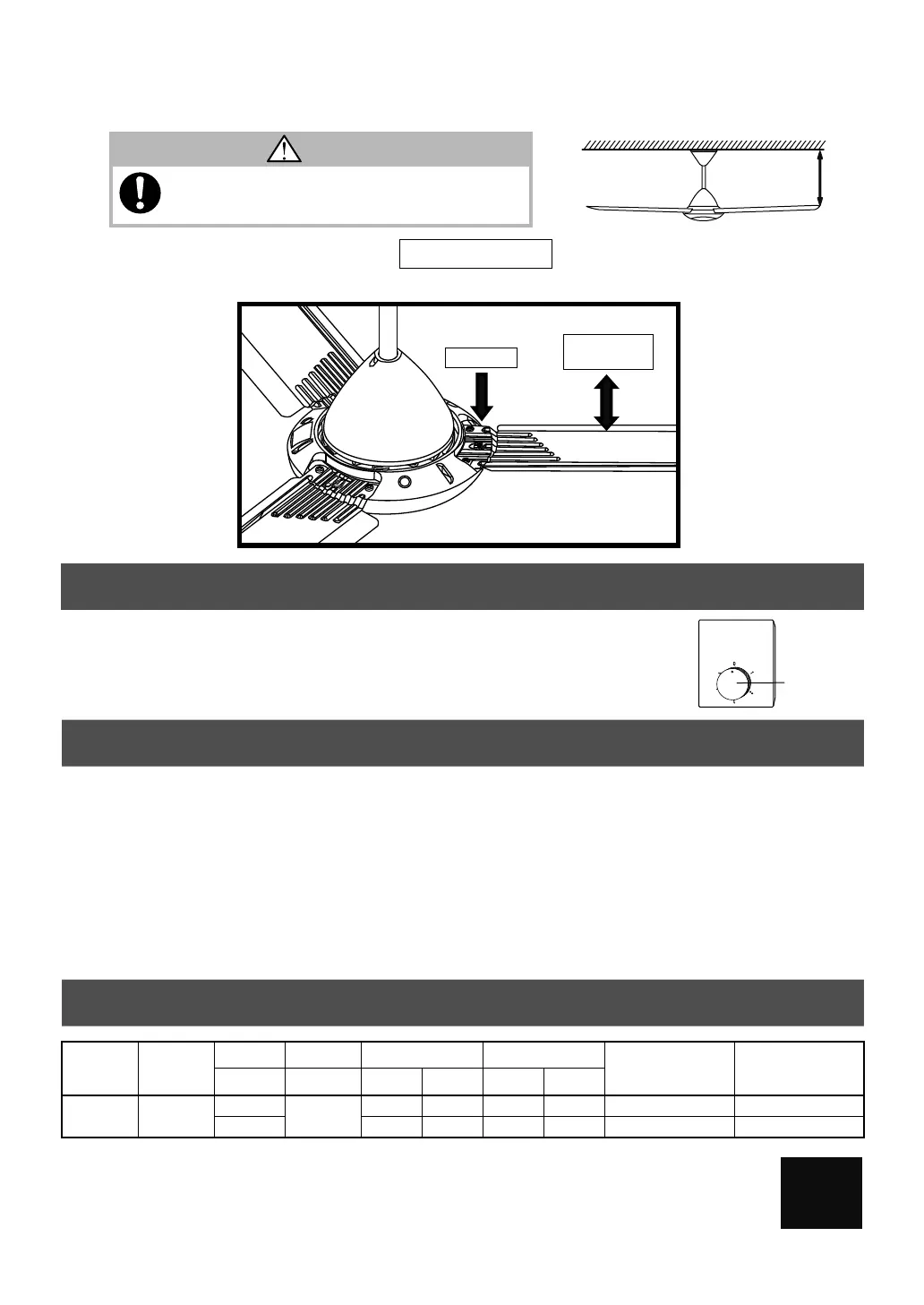

KDK M56RG - How to Use; Maintenance; Product Specifi Cation; Ceiling Fan

L
Switch Knob
Pitching Method
Hold the Motor Assembly by hand and adjust the Blade carefully untill the height (L) differences is ±1 mm.
Push up or press
down carefully
Hold by hand
CAUTION
After installation make sure the Ceiling Fan does not wobble
extremely.
Can cause injury if Ceiling Fan drops.
H)
Final Confi rmation
1
1
Measure the distance using a measuring tape.
Please adjust all the Blades to get the equal distance from ceiling to the Blade Tip, L (within 1 mm tolerance).
How To Use
1
1
To turn on the fan, simply turn the Switch Knob to any position (1, 2, 3, 4, or 5). To turn off
the fan, turn the Switch Knob to the (0) position.
Maintenance
1. Check the Ceiling Fan condition annually. If a problem occurs, stop using the Ceiling Fan. Then refer to service, sales or
maintenance shop.
Check points : Loosened Screws, Safety Wire condition, Motor Shaft damage, etc.
2. Keep the Ceiling Fan clean. Wipe away dirt with a clean soft cloth, ordinary soap and water. Wipe it again to dry it. Do not
use solvents (Gasoline or petroleum).
* Please do not bend the Blade while cleaning.
3. Do not paint the Blades. If damage, order new set of Blades (3 pieces) from service shop or sales shop.
4. When referring to service, sales or maintenance shop, show this instruction to them and maintain correctly.
5. If the product is broken or damage, please remove the Ceiling Fan from ceiling and replace with a new Ceiling Fan. This is to avoid the
Ceiling Fan drops.
6. Recommendation for the Ceiling Fan suspension system shall be examined at least once every two years.
Product Specifi cation
Model Type
Voltage Frequency Wattage (W) Rotation (RPM)
Air Velocity (m/min)
Air Delivery
(m³/min)
VAC Hz Low High Low High
M56RG/
N56RG
TB
220
50
14 70 103 268 165 220
230 15 75 109 275 170 225
R
M56RG8001CM
KDK Company, Division of PES
Head Offi ce: 4017, Takaki-cho, Kasugai, Aichi, Japan.
© KDK Company, Division of PES 2011
