KDK M56RG - Supplied Parts; How to Assemble

4
1
5
3
2
5
3
4 4
2 2
2
1
2 2
6
6
2
2
2
2
4
4
3
3
1
1
6
6
5
5
Spring Washer
Cotter Pin
Hexa Nut
P-R Washer
Ellipse Bolt
Pulley Set
Cap
M56RG N56RG
Parts Pcs
1. Motor Assembly 1
2. Blade Assembly Set 3
3. Pipe (9 or 12 or 16 or 18 or 22 inch) 1
4. Lower Canopy 1
5. Upper Canopy 1
6. Speed Regulator 1
7. Part Set 1
NOTE
The installation method for both models is the same.
Pipe
Pull Safety Wire
Safety Wire Screw (with washer)
NOTE
Do not place the Ceiling Fan directly on the fl oor.
Can cause scratches to the product.

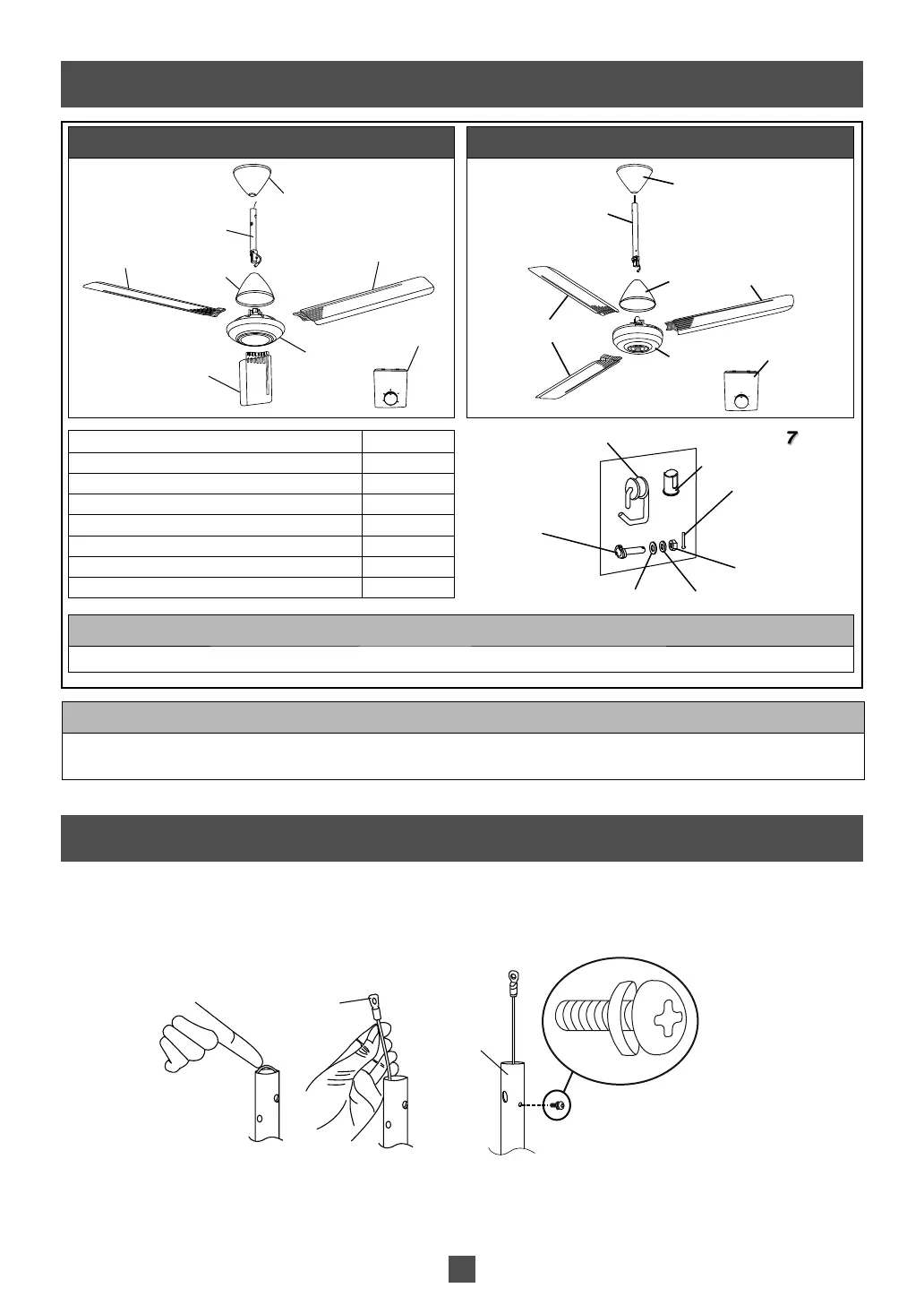

Supplied Parts
How To Assemble
A)
Insert the Canopy
1
1
Pull out the Safety Wire from Pipe as shown. Remove Safety Wire Screw from Pipe. Keep these screws for Page 9
Step D2.
