9
3
3

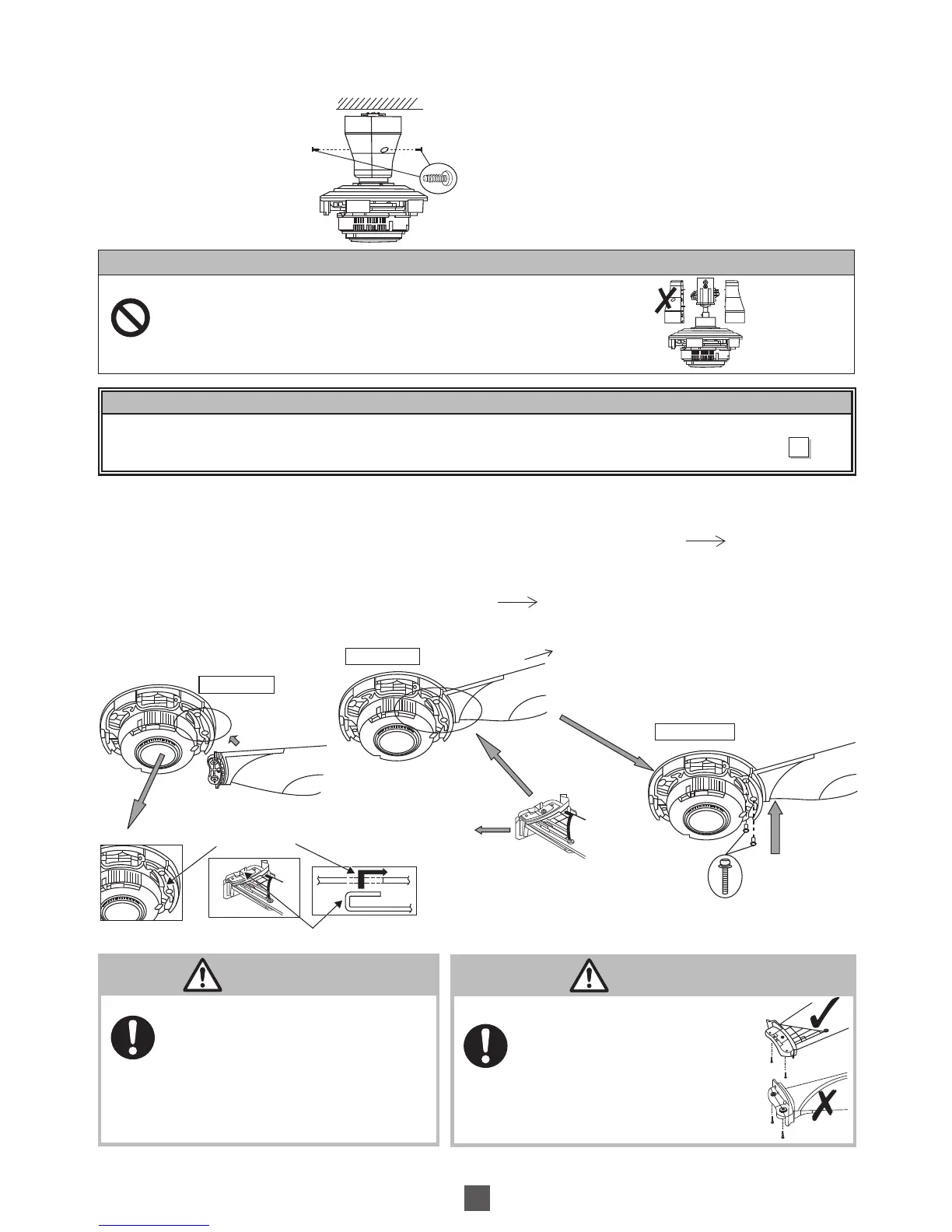

Fix the Screws into the Canopy and tighten it.
將螺絲鎖入罩蓋然後鎖緊。
Screw /
螺絲
Ceiling / 天花板
ATTENTION /
ཎ
Do not assemble Canopy in this opposite direction.
Can cause abnormal noise.
請勿將罩蓋裝反方向安裝。
可引起異響。
Check Point After Installation /
ಢ၆ࡣޟᔮᡛᘈ
Check / 檢查
1. The Canopy is securely screwed.
罩蓋已鎖緊。
D)
Installing The Blades /
Ԋ၆ဨ
1
1
(i) Step 1: Assemble the Blade towards the Blade Support Plate slot as shown in fi gure Step 1.
(ii) Step 2: Pull the Blade according to direction in fi gure Step 2 to lock the Blade. ( )
(iii) Step 3: Tighten the Blades fi rmly with Screw provided. (Taken from Part Set)
Each Blade uses 2 pieces of Screws.
(i) 步驟 1 ： 如步驟 1 的圖示，將扇葉裝入扇翼支撐板。
(ii) 步驟 2 ： 依步驟 2 的圖示方向拉動以鎖定扇葉。 ( )
(iii) 步驟 3 ： 用隨附的螺絲固定好扇葉。（從零件組中取出）
每片扇葉使用 2 枚螺絲。
Blade Support Slot /
扇翼支撐狹槽
Blade Support Plate /
扇翼支撐板
Blade Support Plate / 扇翼支撐板
Screw /
螺絲
Step 1 / 步驟 1
Step 2 / 步驟 2
Step 3 / 步驟 3
WARNING /
ឌ֙
Tighten the Blade Screws fi rmly using a
screwdriver.
Can cause injury if Blade drops.
用螺絲起子將扇翼螺絲鎖緊。
若扇翼掉落會導致受傷。
CAUTION /
ݧཎ
Blade must be fi xed correctly.
Can cause no air fl ow.
Can cause injury if Blades drop.
必須正確上緊扇翼。
這會導致沒有氣流。
若扇翼掉落會導致受傷。
