EnDat at Channel 1
GB - 5
2. Product Description

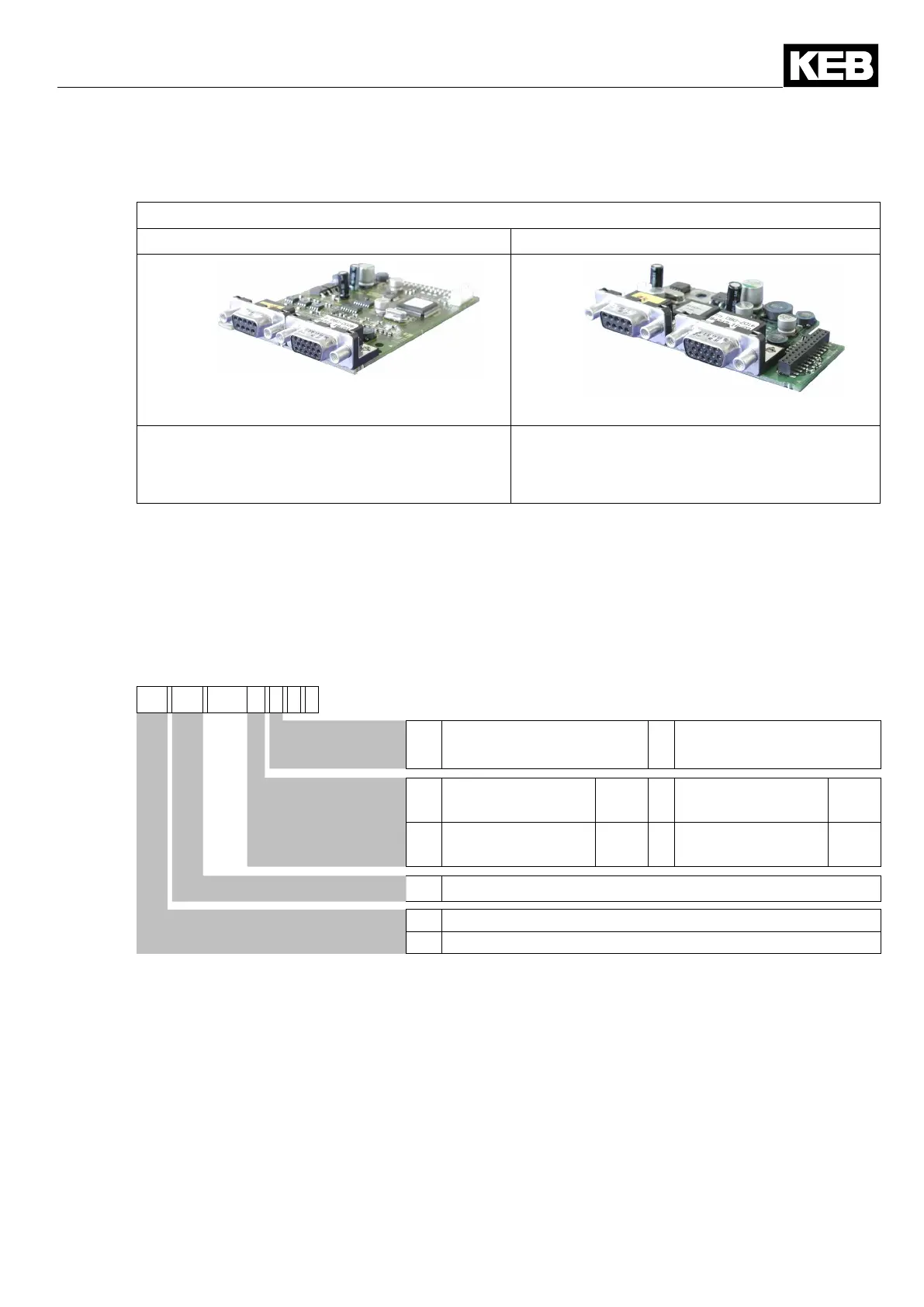

Figure 1: EnDat at channel 1
2MF5280-2030 /-2032 / -2033 1MF5280-2040 /-2042 / -2043
X3A
Channel 1
X3B
Channel 2
X3A
Channel 1
X3B
Channel 2
X3B X3A
channel 2 channel 1
variable see material number EnDat
2.1 General
Each of the interface cards delivered by KEB include two interfaces. As there are numerous
dierent combinations available each interface will be described by means of separate
instructions. The instruction covers the installation of the interface card, the connection as
well as the start-up of a suitable encoder. Further information and the parameter adjust-
ments are described in the application manual for the inverter/servo.
2.2 Material number
xM F5 K8G X X X X
Term of deli-
very
0 installed Z Option, spare part
P TTL-Output
2033
2043
3 SSI-Input
2030
2040
Q TTL-Input
2032
2042
F5 Series
applicable for housing size
1M D, E (circuit board 1MF5280-xxxx see above)
2M G…U (circuit board 2MF5280-xxxx see above)
2.3 Scope of delivery (option or replacement delivery)
• Encoder Interface
• Two instruction manuals
• Fixing bolt
• Packing material
