5. Setting up and using the Vantage Plus
Headband Adjustment
Comfortable Fit

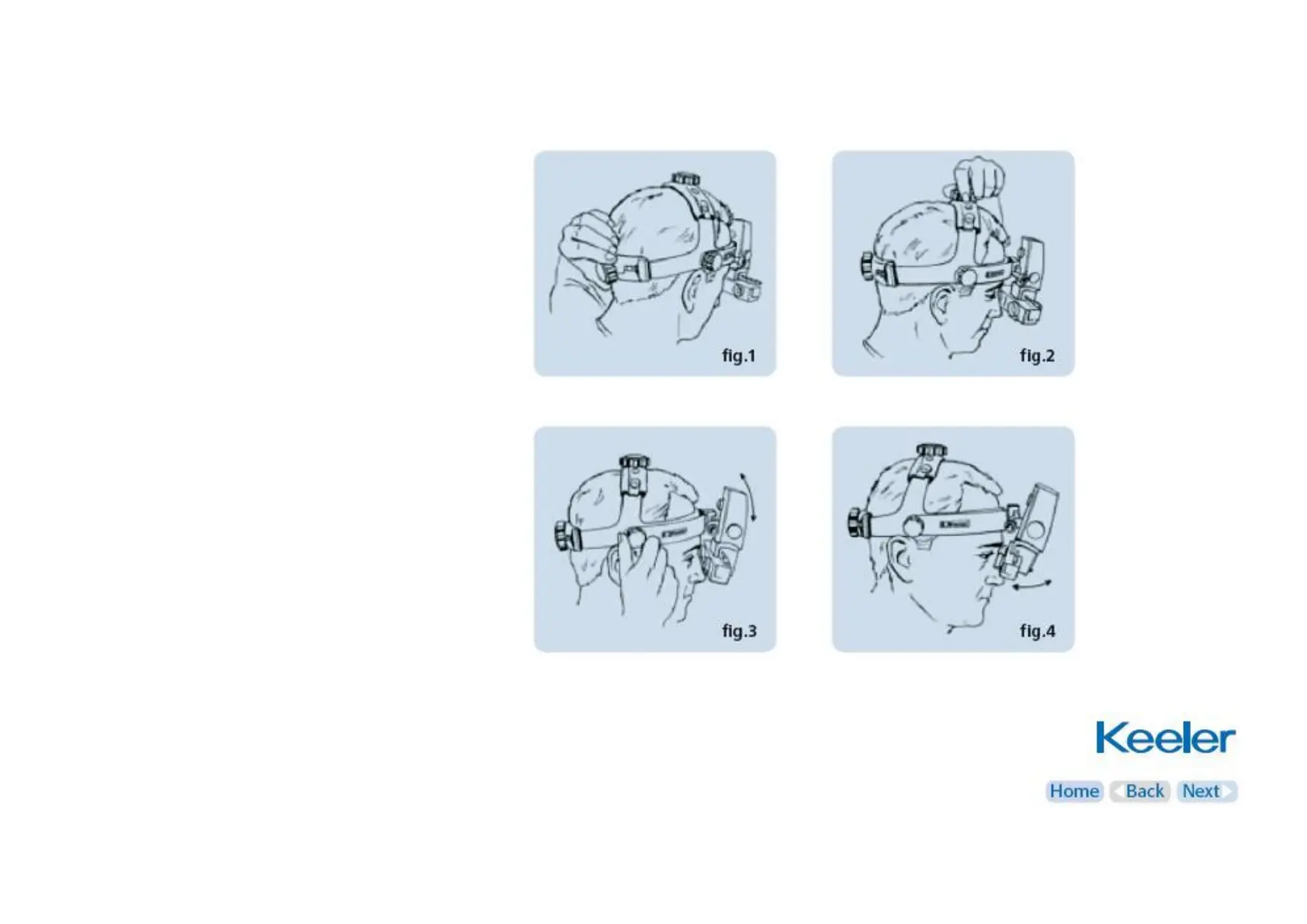

Adjust the size (A) fig.1 and the height (B) fig.2, so
that the instrument is supported comfortably
around and on top of the head.
Ophthalmoscope Angle Alignment
For vertical alignment of the eyepieces and
binocular block (O), adjust the height of the Metal
Outer Brow Bar (C) if necessary by using the
browband tension knobs (D) located on the sides
of the headset (fig 3).
Position the Binocular Block (O) as close to the
eyes or spectacles as possible for maximum field of
view. Slightly loosen the ophthalmoscope angle
knob (E) to allow for adjustment and tighten when
in position as in (fig 4).
