58

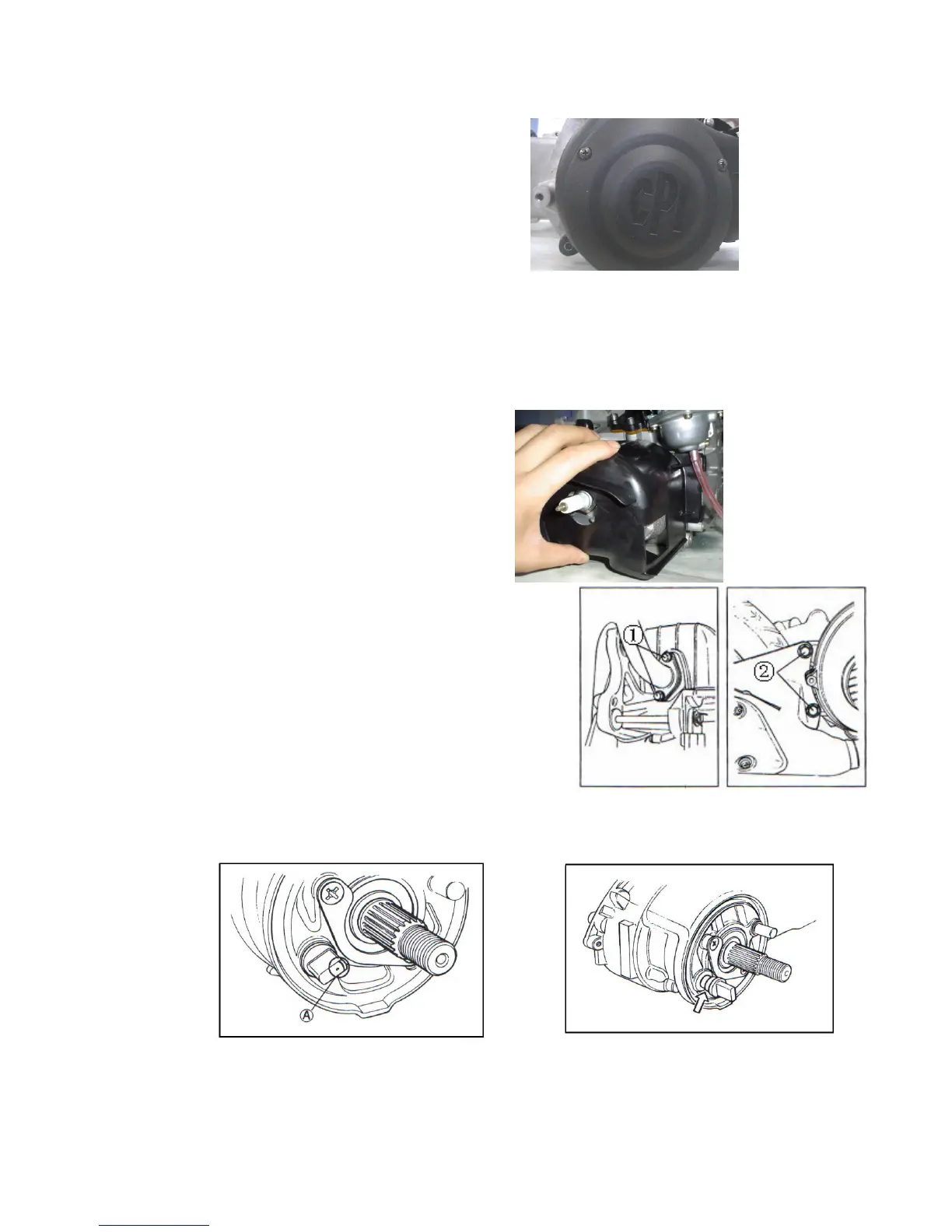

 install cooling fan
 install guiding cover
 install fan guiding cover
 install pipe screw ① and screw for
tightening muffler to their specified
torque.
①：8-12N.m(0.8-1.2kg.m,6.0-8.5Ib-ft)
②：18-28N.m(1.8-2.8kg.m,13.0-20.0Ib-ft)
 lubricate brake cam shaft with QIJIANG SPECIAL grease.
