30

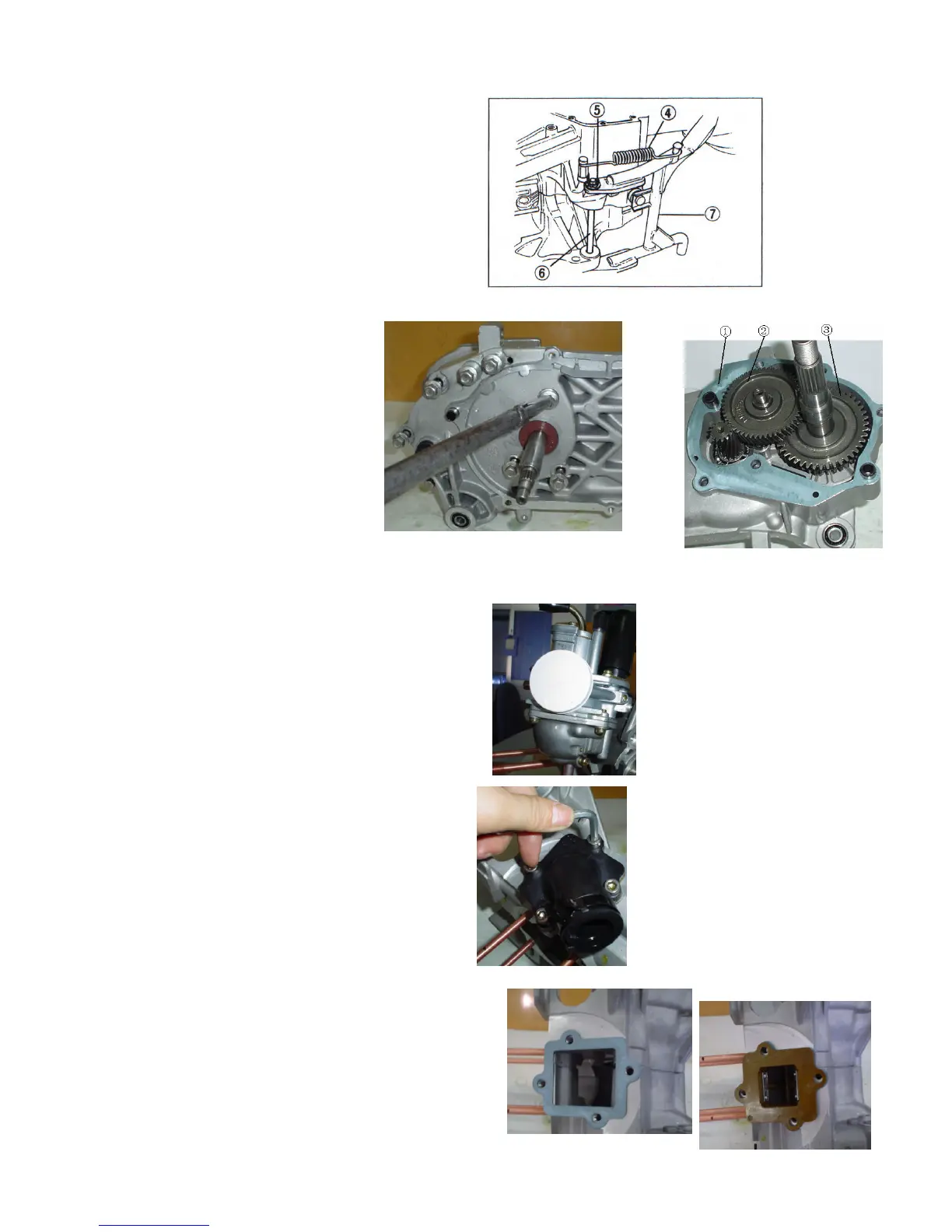

remove spring④
remove cotter pin⑤ and shaft⑥
remove main stand⑦
remove gearcase cover
Remove paper gasket① and middle gear assy.②,
Remove output gear assy.③
remove carburetor
remove intake pipe
remove reed valve and paper gasket.
