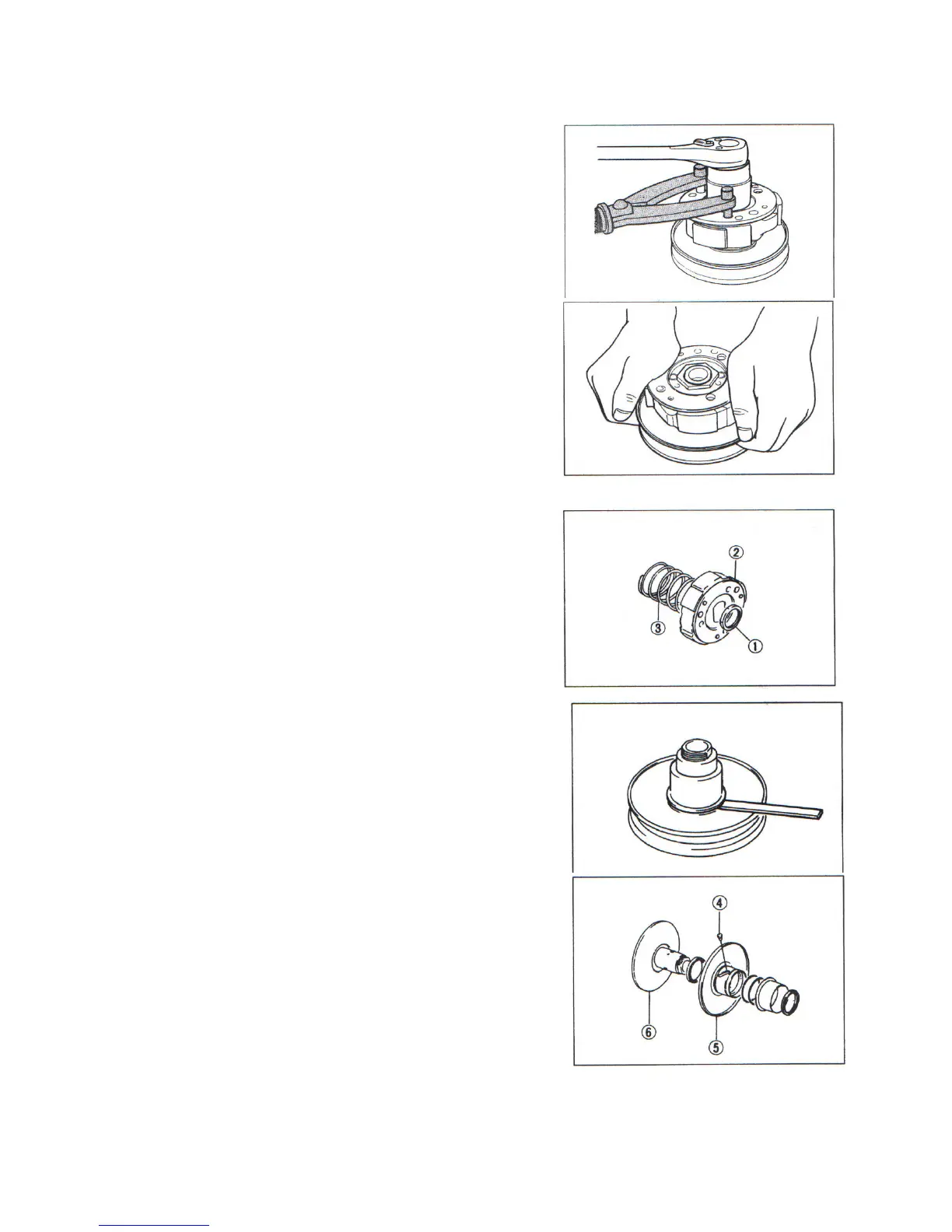

Unscrew clutch shoe nut with special tools.
Remove the nut while holding down clutch
shoe assy. by both hands as shown in the
illustration.
WARNING：Gradually back off the clutch shoe
assy. pressed down by hands to counter the clutch
sparing load. Releasing the hand suddenly may
cause the following parts to fly apart.
①nut
②clutch shoe
③spring
CAUTION：
：：
：
Do not attempt to disassemble the clutch
shoe assy. Otherwise the clutch shoe may be
damaged.
Using a screwdriver or the like, pry up the
movable driven face spring guide.
● Remove the pins④, movable driven face⑤ and
fixed driven face⑥.
To Next Page
