KEEWAY MATRIX - 45 km/t User Manual

71
SIGNAL SYSTEM
SIGNAL SYSTEMSIGNAL SYSTEM
SIGNAL SYSTEM

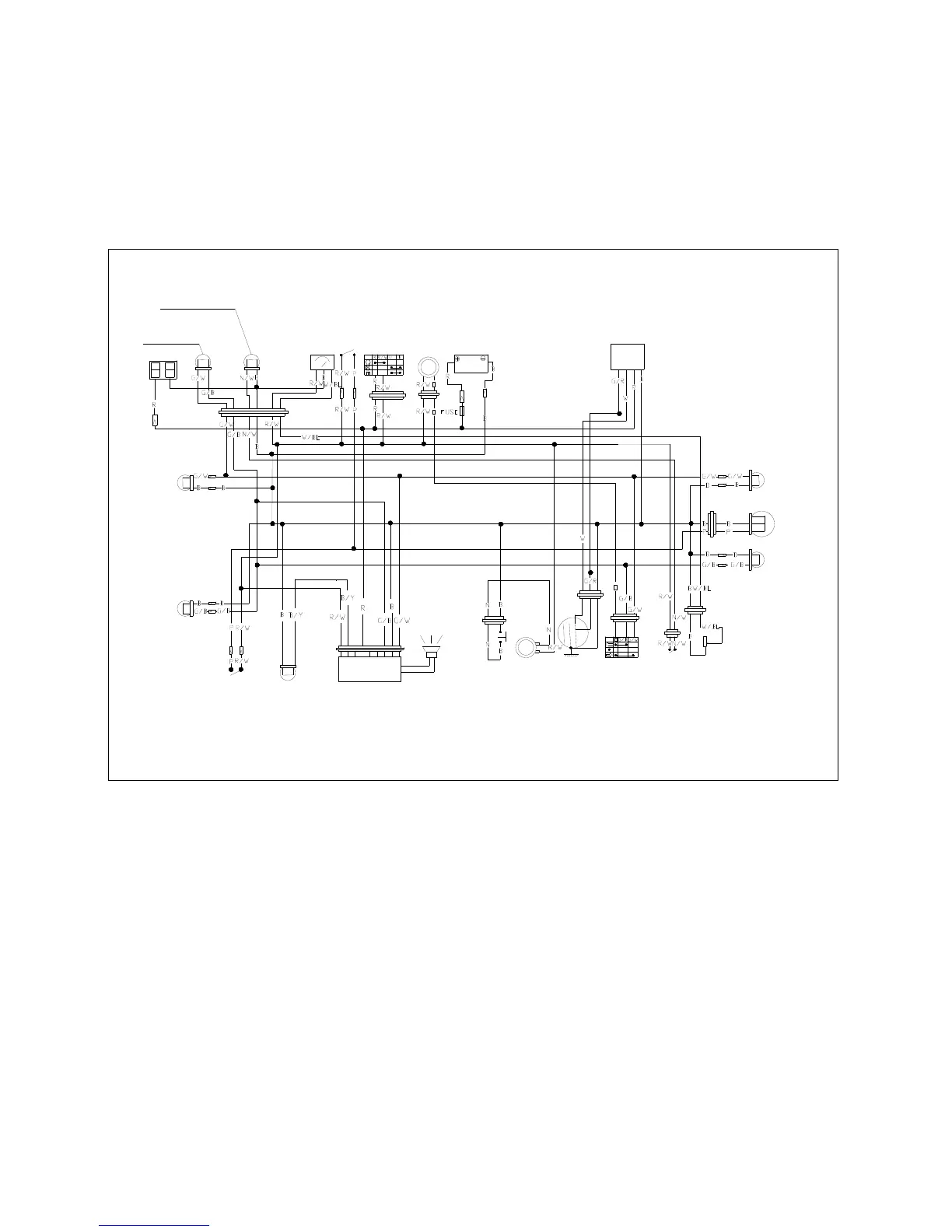

The same bulb is used tor both oil level check light and turn signal indicator light.The circuitry
is shown below.When the oil level has fallen to a certain level (the remaining amount of oil
has become approximately 160 ml,the oil level check light turns on and remains lit.When the turn
signal switch is turned on and the turn signal light flashes,the turn signal indicator light
(oil level check light)also flashes,both being not concurrently but alternatively as one being
lit white the other unit.
油量表
前右转向灯
前左转向灯
后
刹
车
开
关
喇
叭
开
关
喇叭
磁电机 转向开关
机
油
开
关
油
位
传
感
器
后右转向灯
后左转向灯
刹车灯
电子钟
转向指示灯
机油报警指示灯
电源锁
刹
车
开
关
闪
光
蜂
鸣
器
蓄电池
整流/稳压器
防盗器
防盗器喇叭
Fig. 7
OIL LEVEL SWITCH INSPECTION
Check the oil level switch for continuity between the lead wire.If the tester does not show
the value of 0-1 ohm when the switch ring is in bottom position,file the contact surface or replace
the unit.
