HALF RACK, HALF RACK LONG BASE
ASSEMBLY INSTRUCTIONS
16
8

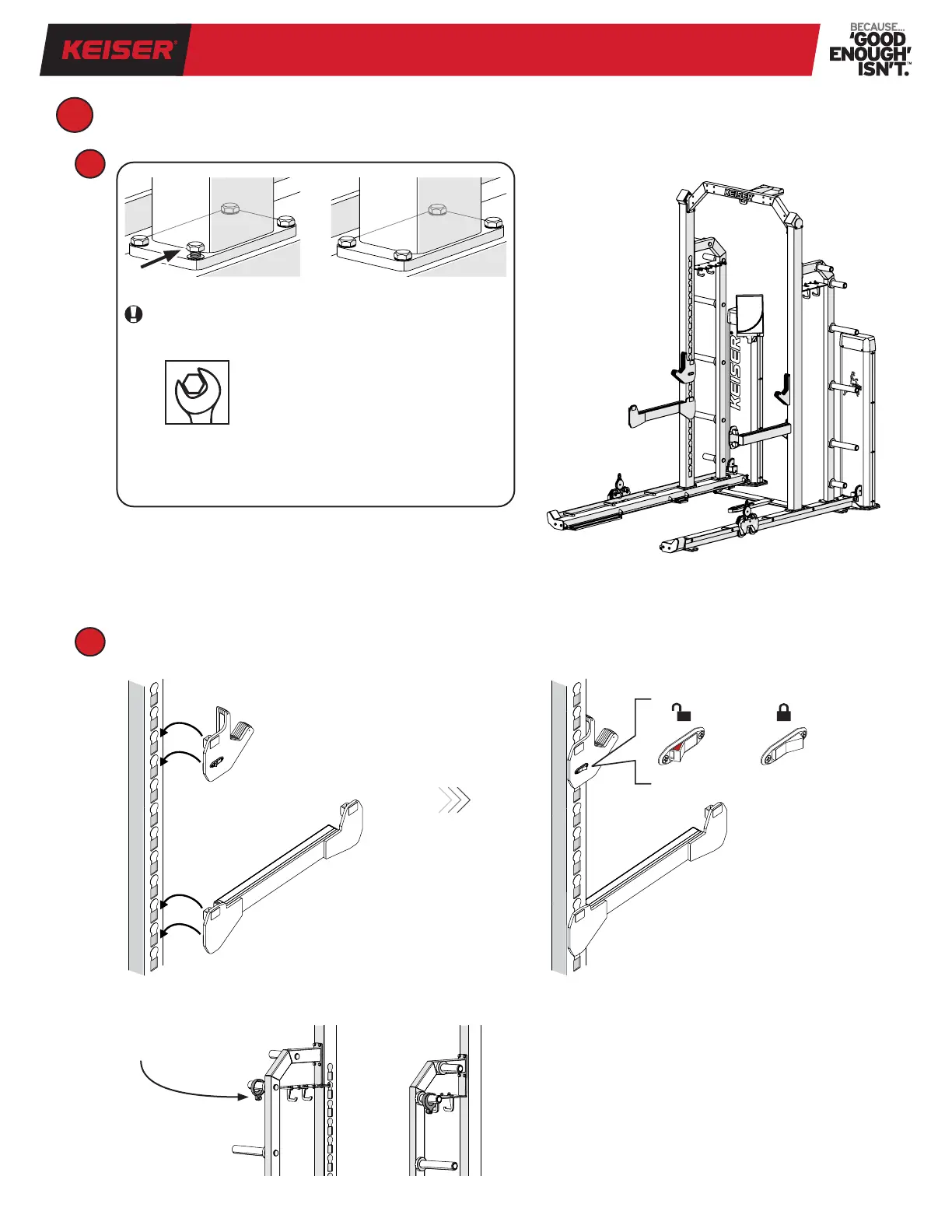

FINAL ASSEMBLY
A
B Set Bar Catches, Cantilever Spotting Bars, and Barbell Attachments.
3106XX Half Rack
(all other Half Rack models similar)
Bar Catch
Cantilever Spotting Bar
Left side shown. Set the right-side components
to corresponding position setting.
NOTE: eChip, Extension Strap, and Weight Stack Decal sets
are packaged in a kit, attached to the Power Module.
Barbell Attachments
IMPORTANT: PROPERLY TIGHTENED ALL BOLTS.
TORQUE SPECIFICATION
3/8-16 IN. (FRAME BOLTS):
25 ft-lbs (34 Nm)
Reference Step 5 through Step 7
for all frame bolt locations.
