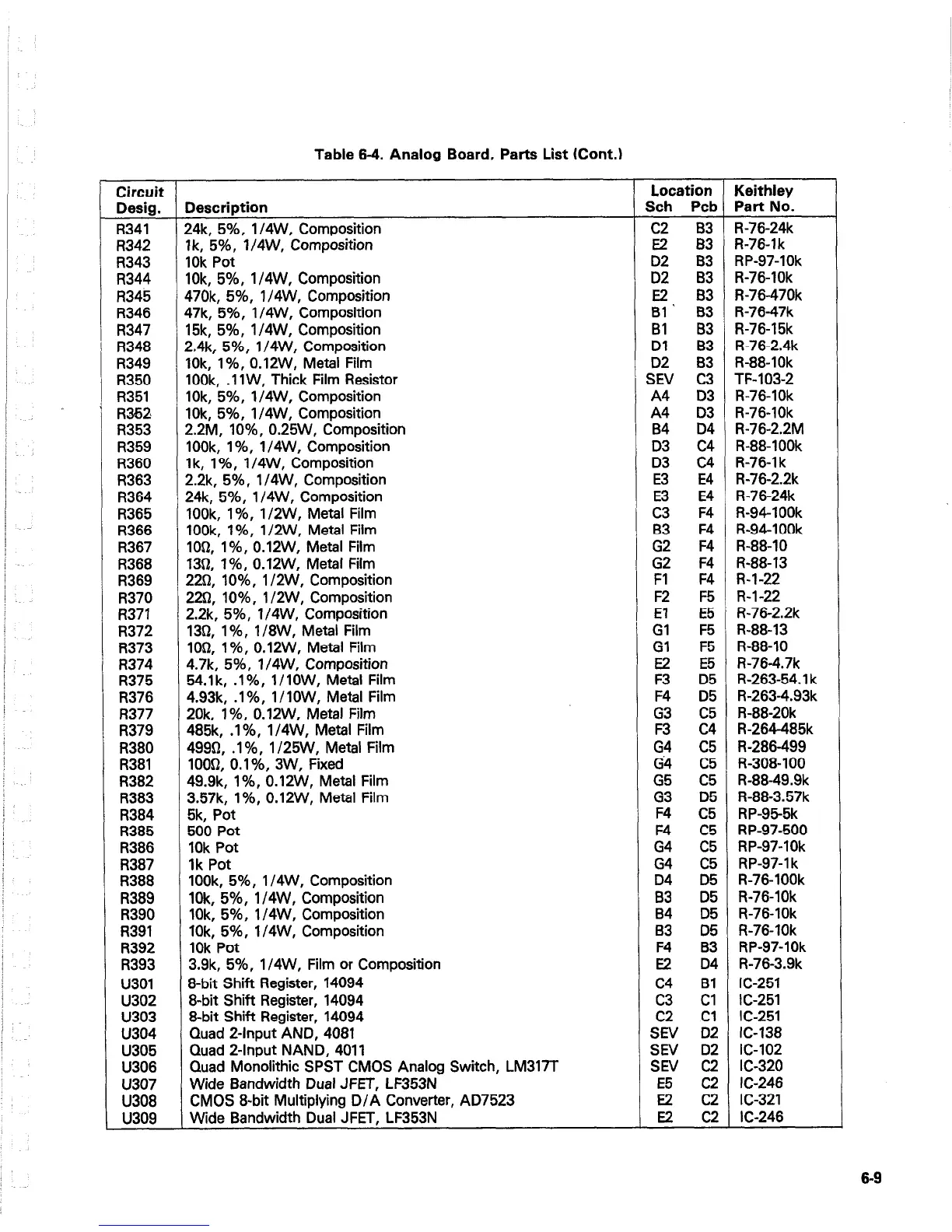

Table 6-4. Analog Board, Parts List (Cont.)
Circuit
Location Keithley
Desig .
Description
Sch Pcb Part No.
R341
24k, 5%, 1/4W, Composition c2
B3 R-76-24k
R342
Ik, 5%, 1/4W, Composition E2
83 R-76-lk
R343
IOk Pot
B3 RP-97-IOk
R344
IOk, 5%, 1/4W, Composition
iis
B3 R-76-IOk
R345
470k, 5%, 1/4W, Composition E2
83 R-76-470k
R346
47k, 5%, 1/4W, Composition
Bl ’ B3 R-76-47k
R347
15k, 5%, 1/4W, Composition
Bl
83 R-76-l 5k
R348
2,4k, 5%, 1/4W, Composition
Dl
B3 R-76-2.4k
R349
IOk, I%, O.l2W, Metal Film
83 R-88-10k
R350
IOOk, .I 1 W, Thick Film Resistor
SE C3 TF-103-2
R351
IOk, 5%, 1/4W, Composition A4
D3 R-76-10k
R352
IOk, 5%, 1/4W, Composition A4
D3 R-76-IOk
R353
2.2M, IO%, 0.25W, Composition B4
D4 R-76-2.2M
R359
IOOk, I%, 1/4W, Composition D3 C4 R-88-100k
R360
1 k, 1 %, 1/4W, Composition D3 C4 R-76-lk
R363
2.2k, 5%, 1/4W, Composition E3
E4 R-76-2.2k
R364
24k, 5%, 1/4W, Composition
E3
E4 R-76-24k
R365
lOOk, 1%, 1/2W, Metal Film
c3
F4 R-94100k
R366
lOOk, l%, 1/2W, Metal Film
83
F4 R-94100k
R367
lOB, l%, O.l2W, Metal Film G2
F4 R-88-10
R368
133, 1%, O.l2W, Metal Film G2
F4 R-88-13
R369
220, IO%, 1/2W, Composition
Fl
F4 R-l-22
R370
22B, IO%, 1/2W, Composition
F2 F5 R-l-22
R371
2.2k, 5%, 1/4W, Composition
El
E5 R-76-2.2k
R372
130, 1%, 1/8W, Metal Film
Gl
F5 R-88-13
R373
IOQ, I%, O.l2W, Metal Film Gl
F5 R-88-10
R374
4.7k, 5%, 1/4W, Composition E2
E5 R-76-4.7k
R375
54.lk, .I%, IIIOW, Metal Film
F3
D5 R-263-54.1 k
R376
4.93k, .l%, IIIOW, Metal Film
D5 R-263-4.93k
R377 20k, l%, O.l2W, Metal Film 2
C5 R-88-20k
R379
485k, .I %, 1/4W, Metal Film
F3
C4 R-264-485k
R380
4990, .l %, 1/25W, Metal Film G4
C5 R-286499
R381 IOOD, 0.1 %, 3W, Fixed
G4
C5 R-308-100
R382 49.9k, I%, O.l2W, Metal Film
G5
C5 R-88-49.9k
R383
3.57k, I%, O.l2W, Metal Film
G3
D5 R-88-3.57k
R384 5k, Pot
F4
C5 RP-955k
R385 500 Pot
R386 IOk Pot
Ei
C5 RP-97-500
C5 RP-97-IOk
R387 lk Pot
G4
C5 RP-97-1 k
R388
IOOk, 5%, 1/4W, Composition
D4 D5 R-76-100k
R389
IOk, 5%, 1/4W, Composition
83
D5 R-76-10k
R390
IOk, 5%, 1/4W, Composition
84 D5 R-76-IOk
R391
IOk, 5%, 1/4W, Composition 83
D5 R-76-IOk
R392
10k Pot
F4 83 RP-97-IOk
R393
3.9k, 5%, 1/4W, Film or Composition E2
D4 R-763.9k
u301
Shit Shift Register, 14094
C4 Bl
IC-251
U302
8-bit Shift Register, 14094
c3
Cl IC-251
u303
8-bit Shift Register, 14094
c2
Cl IC-251
u304
Quad 2-input AND, 4081 SEV D2 IC-138
u305
Quad 2-Input NAND, 4011 SEV D2 IC-102
U306
Quad Monolithic SPST CMOS Analog Switch, LM317T SEV C2 IC-320
u307
Wide Bandwidth Dual JFE’T, LF353N E5
C2 IC-246
U308
CMOS 8-bit Multiplying D/A Converter, AD7523 I2
C2 IC-321
u309
Wide Bandwidth Dual JFET, LF353N
E2
C2 IC-246
6-9
