ANALOG CONTROL
119
CC MODE:
Output turned on

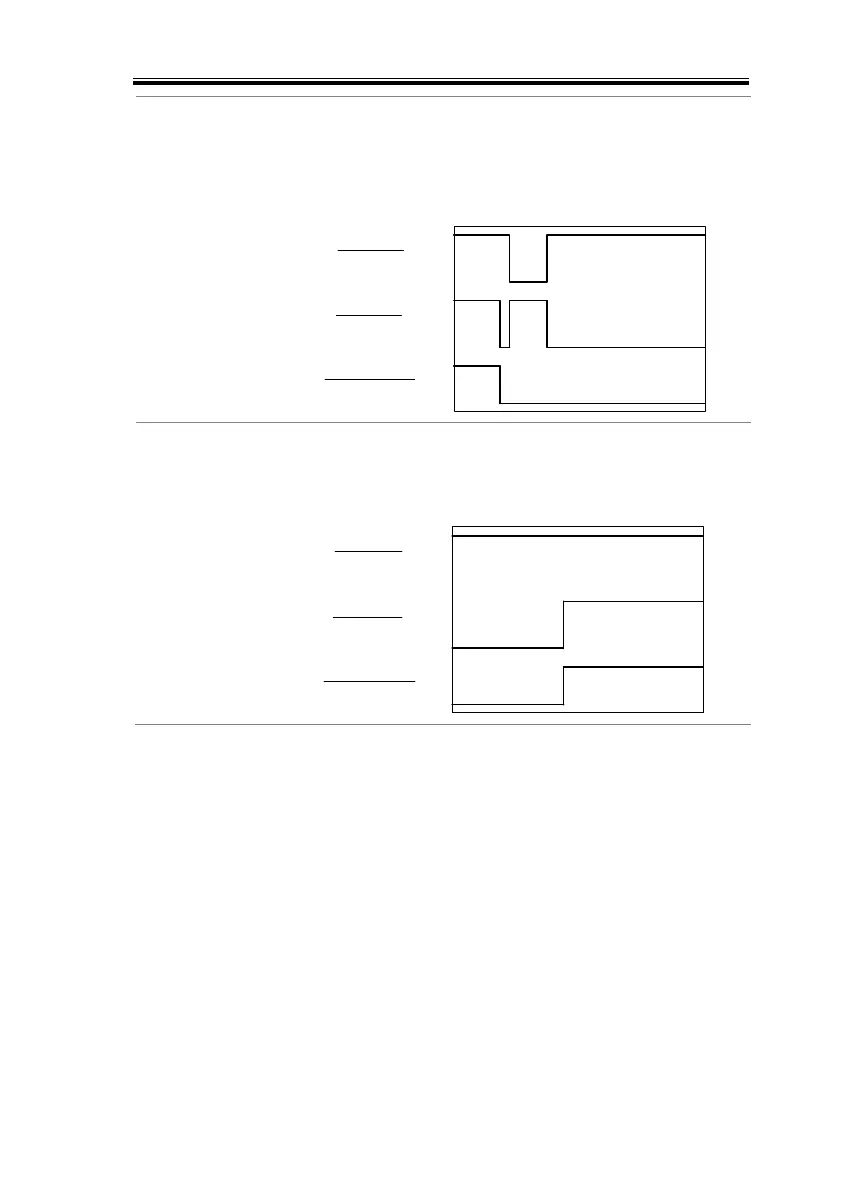

The diagram below shows the timing diagram
when the output is turned on when the 2260B is
set to CC mode.
CV status
H
L
CC status
H
L
Output status
H
L
CC MODE:
Output turned off
The diagram below shows the output status
lines when the output is turned off in CC mode.
CV status
H
L
CC status
H
L
Output status
H
L
