SECTION2
Operation
o:
Rotary
Knob
START
STOP
STEP
DELAY
BIAS
RANGE

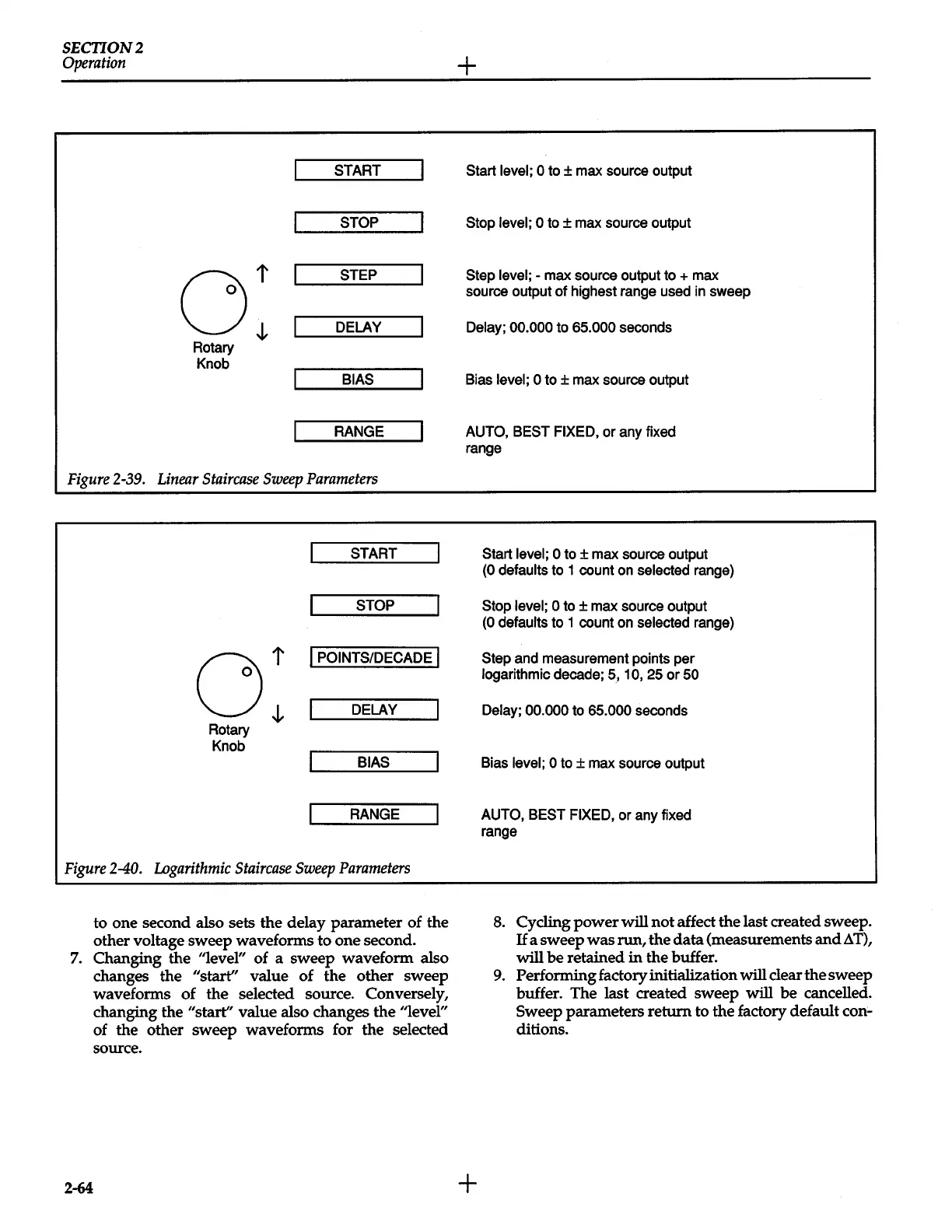

Figure
2-39.
Linear
Staircase
Sweep
Parameters
o:
Rotary
Knob
START
STOP
I
POINTS/DECADE
I
DELAY
BIAS
RANGE
Figure
2-40.
Logarithmic
Staircase
Sweep
Parameters
to one second also sets the delay parameter of the
other voltage sweep waveforms to one second.
7.
Changing the '1evel" of a sweep waveform also
changes the "start'' value of the other sweep
waveforms of the selected source. Conversely,
changing the "start'' value also changes the "level"
of the other sweep waveforms for the selected
source.
2-64
+
Start level; 0
to±
max source output
Stop level; 0 to ± max source output
Step level;
- max source output to
+
max
source output
of
highest range used in sweep
Delay; 00.000 to
65.000
seconds
Bias
level; 0
to ± max source output
AUTO, BEST FIXED,
or any fixed
range
+
Start level; 0
to±
max source output
(0 defaults
to 1 count on selected
range)
Stop level; 0 to ± max source output
(0
defaults to 1 count on selected
range)
Step
and measurement points per
logarithmic decade; 5,
10,
25
or
50
Delay; 00.000
to
65.000
seconds
Bias
level; 0
to ± max source output
AUTO, BEST FIXED,
or any fixed
range
8.
Cycling power will
not
affect the last created sweep.
If
a sweep
was
run, the data (measurements
and
AT),
will
be
retained
in
the buffer.
9.
Performing factory initialization
will
clear the sweep
buffer. The last created sweep
will
be cancelled.
Sweep
parameters return to the factory default
con~
ditions.
