Keithley 237

o:
Rotary
Knob

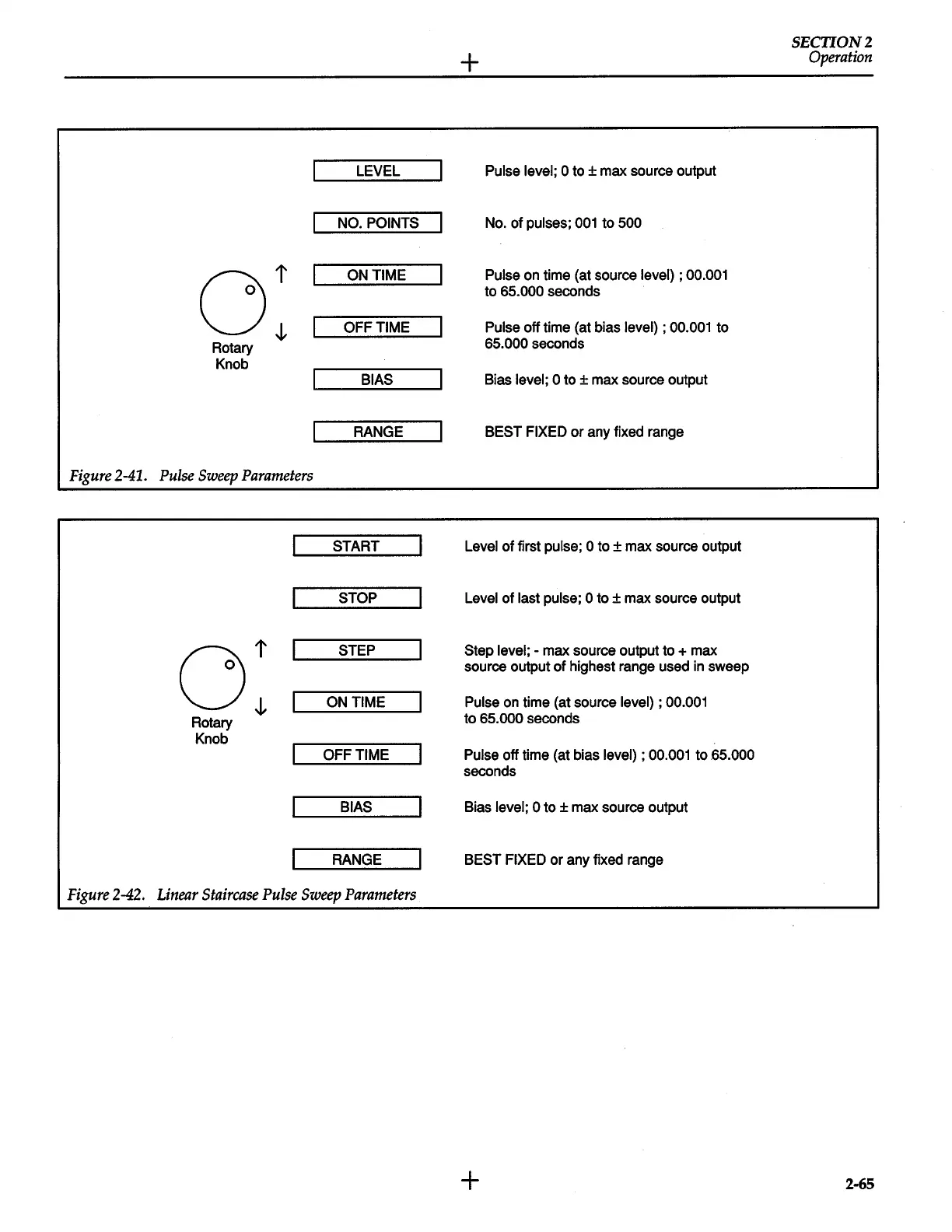

Figure
2-41.
Pulse
Sweep
Parameters
o:
Rotary
Knob
SECTION2
+
Operation
LEVEL
Pulse level;
0
to±
max source output
NO. POINTS
No. of
pulses;
001
to
500
ON TIME
OFF TIME
BIAS
RANGE
START
STOP
STEP
ON TIME
OFF TIME
BIAS
RANGE
Pulse
on
time (at source
level)
;
00.001
to
65.000
seconds
Pulse
off time (at bias
level)
;
00.001
to
65.000
seconds
Bias
level; 0
to
±
max source output
BEST
FIXED or any fixed range
Level
of
first
pulse; 0
to ± max source output
Level
of
last pulse; 0 to ± max source output
Step level;
- max source output to
+
max
source output
of
highest range used
in
sweep
Pulse
on
time (at source
level)
;
00.001
to
65.000
seconds
Pulse
off time (at bias
level)
;
00.001
to
.65.000
seconds
Bias
level;
0
to±
max source output
BEST FIXED
or any fixed range
Figure
2-42.
Linear
Staircase
Pulse
Sweep
Parameters
+
