Card Connections & Installation
3-3
1. If mated together, separate the connector card from
the relay card by removing the mounting screw
and then pulling the two cards away from each
other. Remember to only handle the cards by the
edges and shields to avoid contamination.
2. Using an insulated screwdriver, connect the cir-
cuitry to the appropriate terminals. Figure 3-3
shows how Column 1 of the matrix would be con-
nected to a DUT.
3. Referring to Figure 3-4, remove the top half of the
cable clamp as follows:
A. Loosen the cable clamp screw enough to disen-
gage it from the bottom half of the cable clamp.
B. Using your thumb and foreÞnger, press the re-
taining clips inward and, with your other
hand, remove the top half of the clamp.
4. Route wires under wire guide/connector shim.
5. Route the wires through the bottom half of the ca-
ble clamp.
6. Replace the top half of the clamp. It simply snaps
onto the bottom half of the clamp. Tighten the ca-
ble clamp screw. The clamp serves as a strain relief
for terminal block wires.
7. Mate the connector card to the relay card. The
Model 7012 is now ready to be installed in the
Model 7001 mainframe. See paragraph 3.5 for de-
tails.

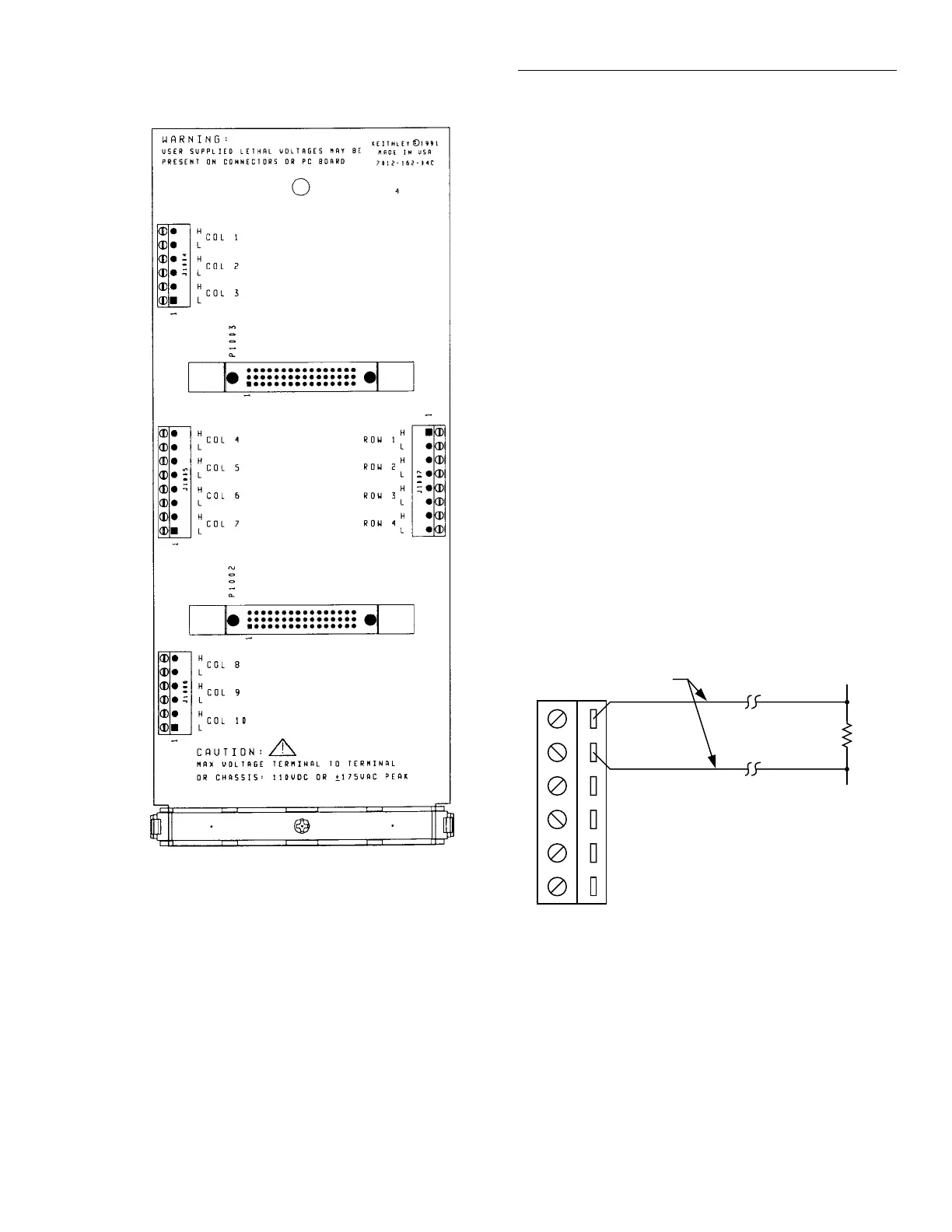

Figure 3-2
Screw terminal connector card
Figure 3-3
Typical terminal block connections
H
L
H
L
H
L
COL 1
COL 2
COL 3
DUT
#16 - 22 AWG Wires
