Card Connections & Installation
3-4
3.3.3 Multi-pin (mass termination) connec-
tor card
Since connections to external circuitry are made at the
96-pin male DIN bulkhead connector, there is no need
to separate the connector card from the relay card. If
the connector card is separated from the relay card,
carefully mate them together. Make sure to handle the
cards by the edges and shields to avoid contamination.

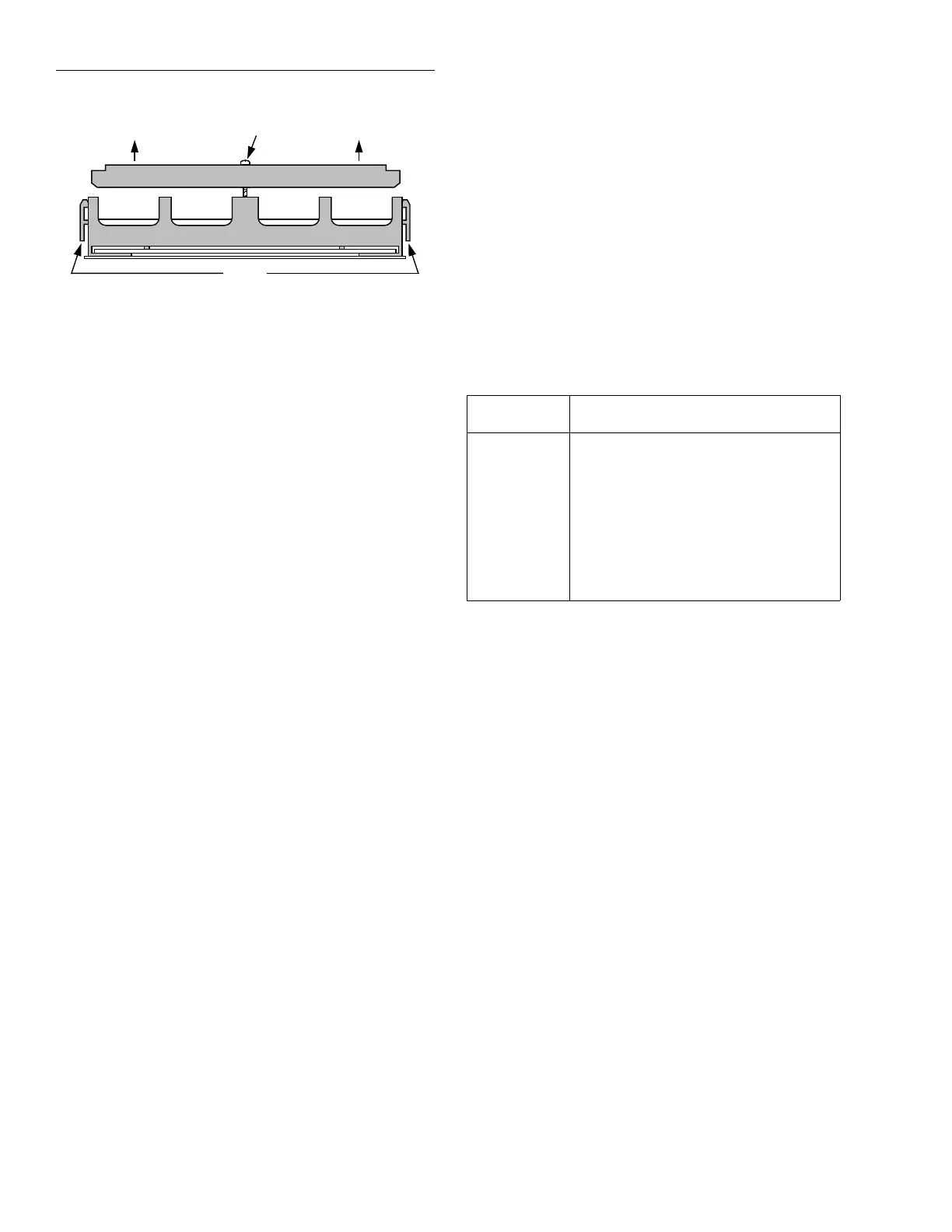

Figure 3-4
Cable clamp for screw terminal connector card
Clips
Screw
Terminal identiÞcation for the DIN connector of the
multi-pin connector card is provided by Figure 3-5.
This connector will mate to a 96-pin female DIN con-
nector.
Keithley has a variety of cable and connector accesso-
ries available to accommodate connections from the
connector card to test instrumentation and DUT (de-
vices under test). In general, these accessories, which
are summarized in Table 3-1, utilize a round cable as-
sembly for connections.
Table 3-1
Mass termination accessories
Model Description
7011-KIT-R 96-pin female DIN connector and
housing for round cable.
7011-MTC-2 Two-meter round cable assembly
terminated with a 96-pin female
DIN connector on each end.
7011-MTR 96-pin male DIN bulkhead connec-
tor.
